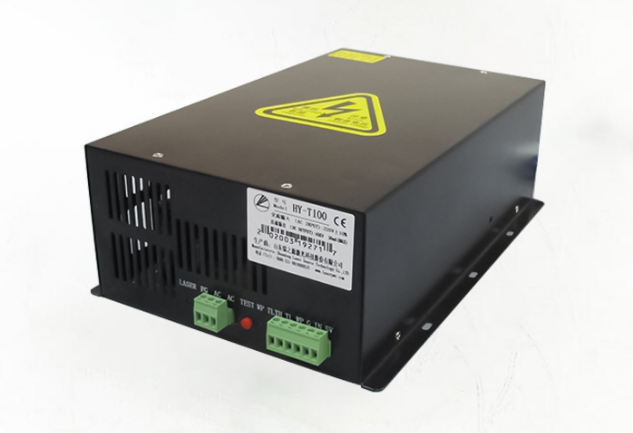

100W Laser Power Supply for 100w Laser Lamp
Main Feature of 100w 120w stabilivolt laser power supply
1. Very wide range of Input Voltage: AC110-AC260V
2. Function of voltage stabilizer: when the input voltage is unstable, current change rate less than 1%.
Widely used in AC input unstable countries.
3. Good compatibility: It can be applicable to 80W, 100W, 120W laser tubes manufactured by different factories.
4. This Power Supply has the”TEST” button which can test output laser manually.
5. The Laser Power Supply has high Output Power, good stability; this can prolong laser tube’s service life
6. HY-W120 Application: 100w-120w co2 laser tube cutter and engraver for cutting and engaraving non metal materals as Sculpture and cut acrylic, fabric, double color sheet ,rubber etc.
Specification of 100w 120w stabilivolt laser power supply
| Input | Input Voltage | AC90V-260V | |
| AC frequency | 47—440HZ | ||
| Max input power | 1000w | ||
| Max output current | 8A | ||
| Output | Max Output Voltage | DC 40KV | |
| Max Output Current | DC 32mA | ||
| Efficiency | ≥90 percent (full load) | ||
| MTBF | ≥10000 hour | ||
| Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current) | ||
| Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | ||
| Environment | Operating Temperature:-10~40°C),Relative Humidity (RH)≤90 percent | ||
| Cooling Way | Force-Air Cooling (FAC) | ||
| Dimension | L×W×H=280*173*97 (mm) | ||
| Color | Black | ||
(1) Warranty: one year
(2) Free charge of the maintenance back to our factory (Besides shipment charge)
(3) Free charge of accessories sending to your door (If broken by non-artificial factors within warranty)
(4) 24 hours online supporting technical service
