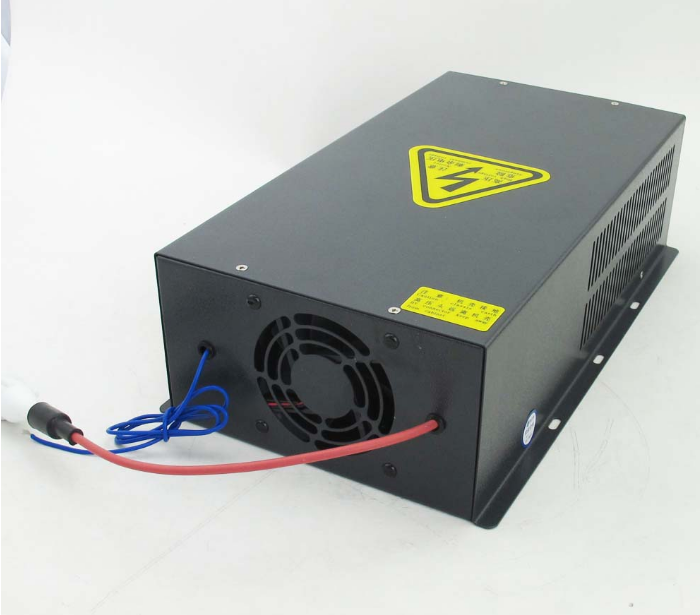

120watt Co2 Laser Cutting Machine Laser Tube Laser Power Supply Es100

1. Es100 Laser Power Supply Main features:

1.Initiative PFC function, AC90-250V wide input voltage range, universal for all countries voltage.

2.Special design for outer shell, more beautiful appearance, better heat dissipation.

3.Improved current control mode, more stable laser, better compatibility, more adaptable for different kinds of laser tubes.

4.Simple power control, user can control laser with high or low level signal.

5.With test button, easy to test laser tube and Es100 power supply.

4.Small size outer shell, suitable for installing on the beam of cutting bed.

2. Es100 Laser Source Advantages:

1. Easy Control: The start and stop of laser can be easily controlled by TTL level. Both 0-5V analog signal and 5V PWM signal can control the laser power.

2. Es100 Laser Power Supply has output open circuit protection.

3. Es100 power supply has TTL signal indication, water through signal indication and laser output

indication.

3. Es100 power supply Application:

Es100 Laser Power Supply is used for 100w,120w laser cutter and engraver for Cutting and Engraving non metal materials as Acrylic, Fabric, Double Color Sheet and Rubber,ect.

4. Es100 power supply Main specifications:

5.Es100 power supply Operation Instruction:

1.Laser Tube connection: Es100 laser power supply high voltage terminal (HV+) should be connected to the positive pole of CO2 laser tube. Current circuit of Es100 laser power supply shall be connected to negative pole (laser output terminal) of laser tube by an ampere meter or directly.

2.Connection of control signal
