1390 RECI W6 CO2 Laser Tube Laser Wood Cutting Machine Price

Short Description:


Product Detail

Product Tags

Product Description:

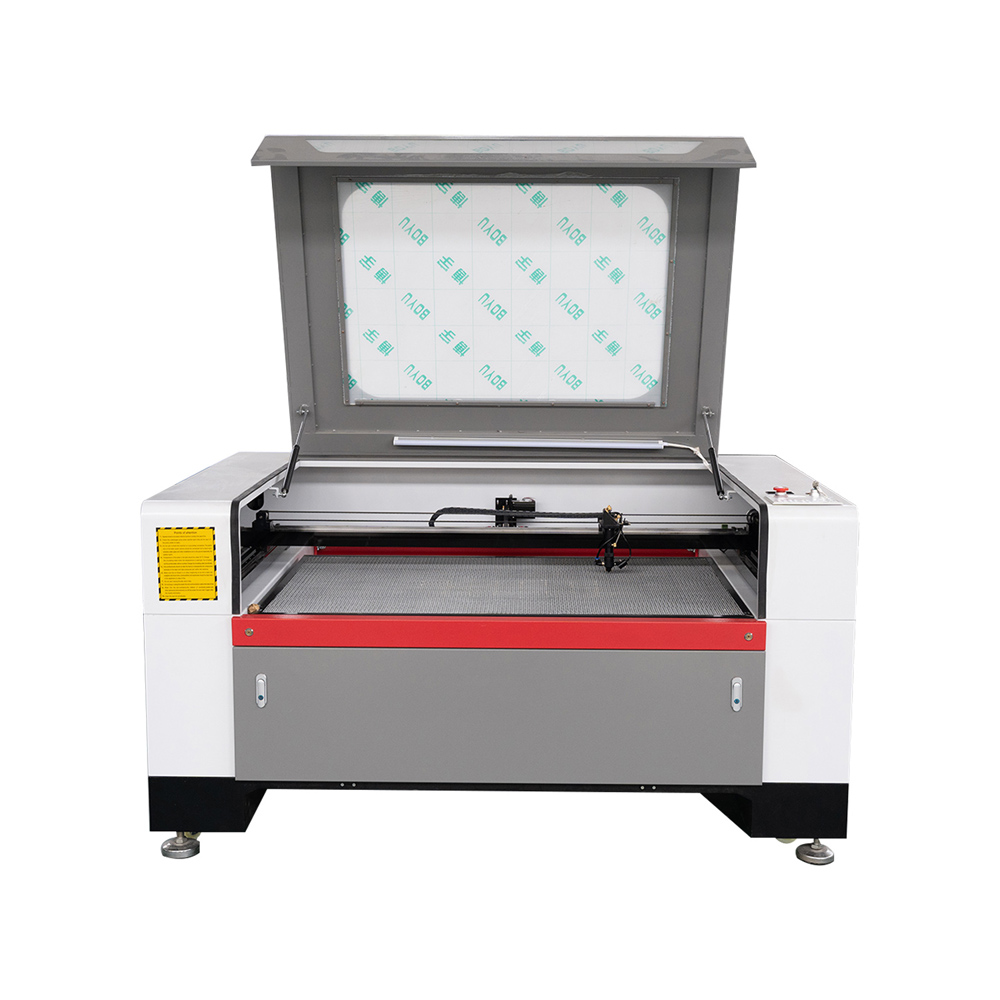

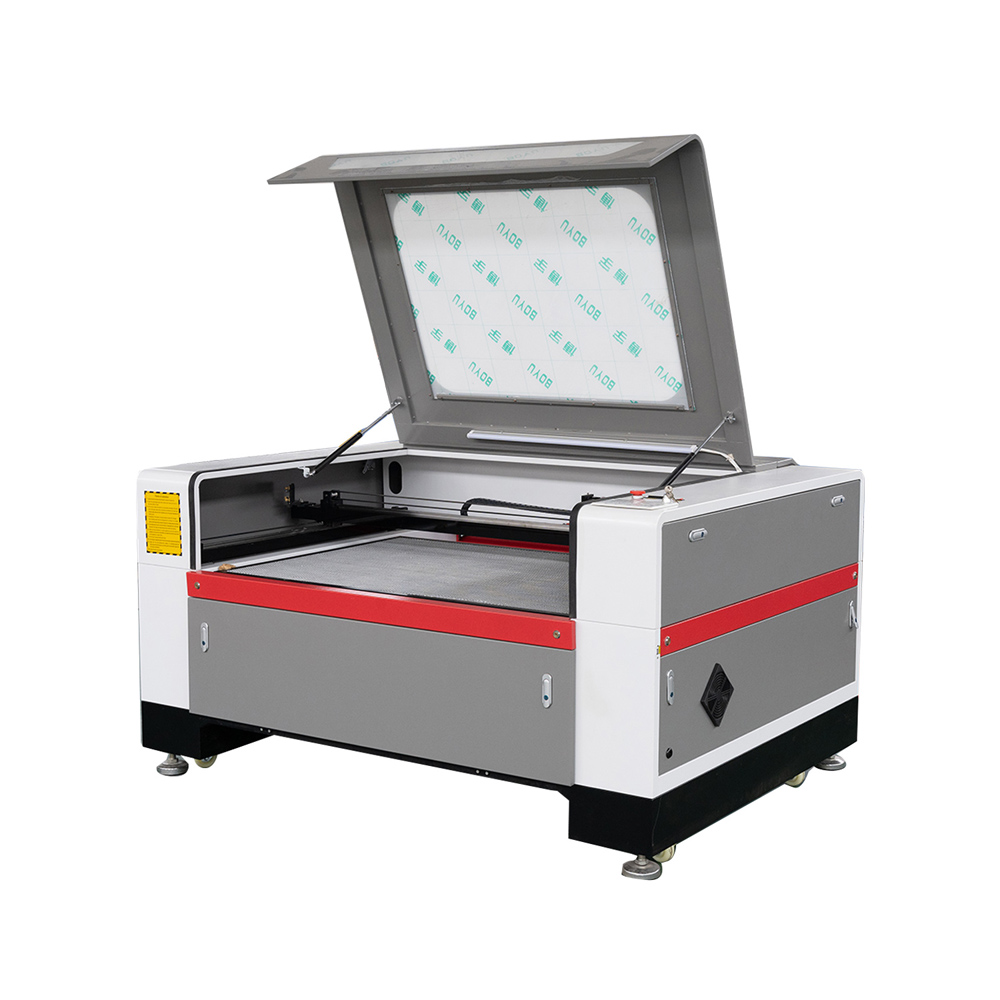

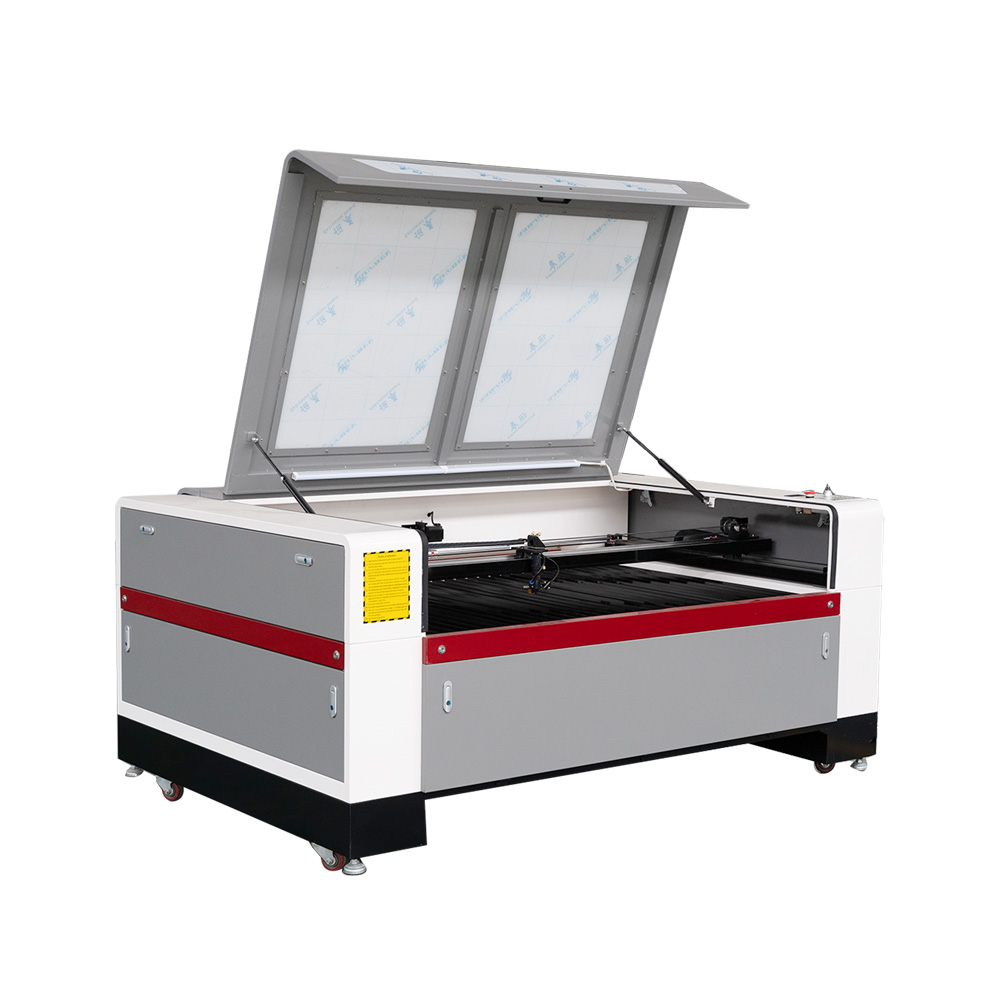

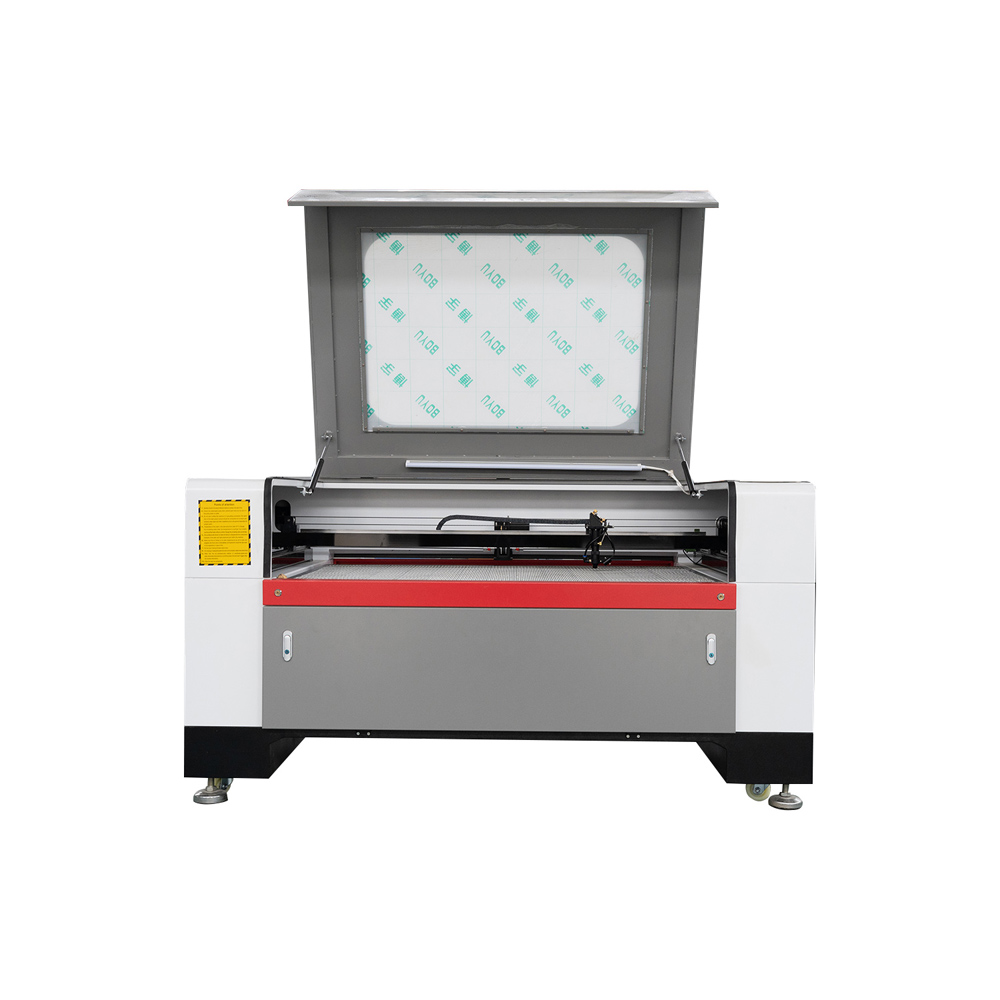

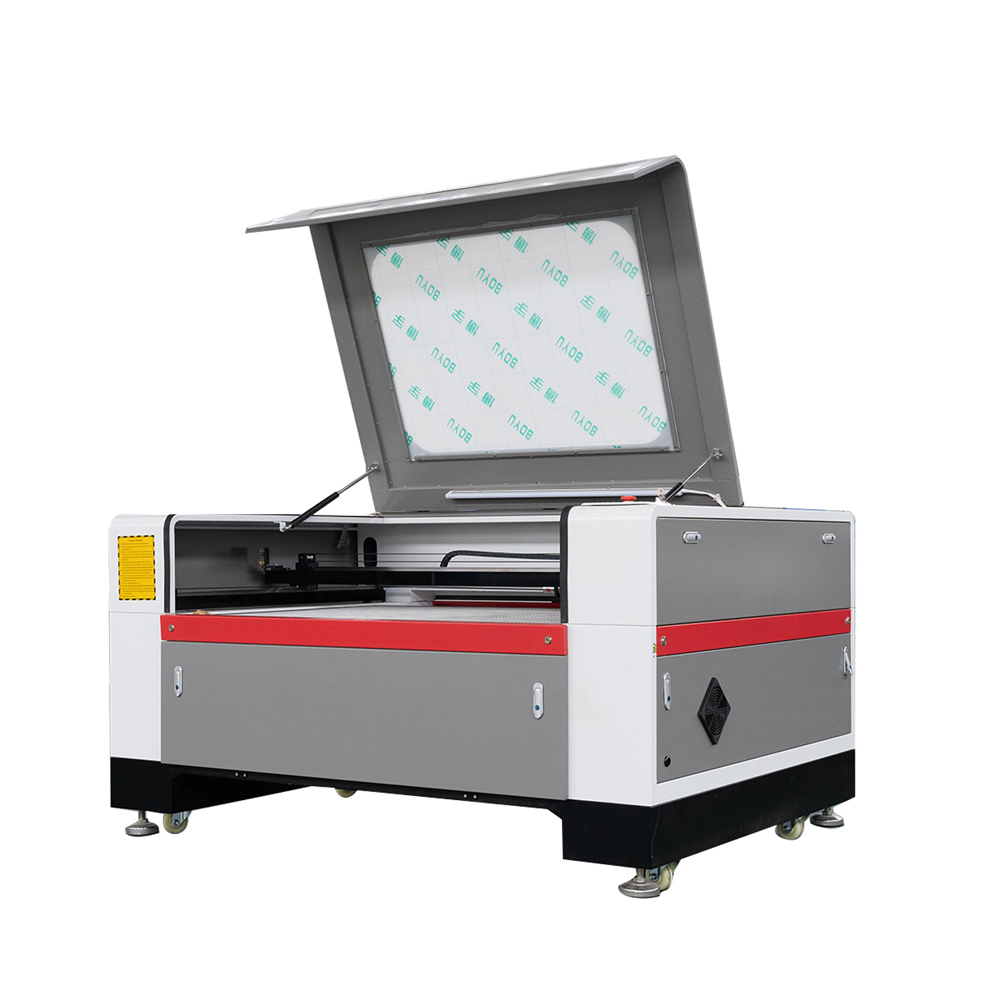

1390 laser machine (5)
1. Imported linear guide rail and high speed stepping motor and driver to make the cutting edge smooth.
2. Adopt an integrated frame structure design to make the machine run steadily without noise;
3. Simple operation, optional carving sequence, processing level, flexible adjustment of the laser power, speed and focal length for local or all one-time output;
4. The open software interface, compatible with Autocad, Coreldraw, went sculpture, Photoshop and other vector graphics design software;
5. Equipped with water break protector, better protect laser, extend the life of laser, optional foot pedal switch, make your operation more convenient and fast.
6. Double guide rail operation; Belt drive; You can choose to configure honeycomb/grid/flat/lift;
7. Patented technology: unique up-down and down-draft smoke and dust removal system;  Blowing protection; Carve cutting materials.

Technology

Laser tube type APEX CO2 laser tube
Laser power 60w/80w/100w/130w/150w  Reci laser tube
Cutting area 1300 x900mm
Whole machine size 1940*1550*1150mm
Wooden pakage size 2000x1800x1300mm
NRT 250KG
GRT 350 KG
Engraving speed 0 – 72,000mm/min
Cutting speed 0 – 72,000mm/min
CNC Yes
Repositioning accuracy ±0.1mm
Power supply AC 110 – 220V ±10%, 50 – 60Hz
Gross power 1,000W
Operating temperature 0 – 45°C
Operating humidity 5- 95%
Mini shaping character English 1 x 1mm
Graphic format supported BMP, HPGL, PLT, DST, DXP, and AI
Driving system stepper
Cooling mode water-cooling and protection system
Auxiliary equipments Exhaust-fans, air-exhaust pipe
Controlling software DSP control system.
Compatible software CorelDraw  AutoCAD  Photoshop
Accessories optional Red-light,pointer,up-and-down platform,water-chiller,muti-head
Platform Blade platform or honeycomb platform
Automatic transmission device Optional
Certificate CE,ISO,FDA.,FCC,
Operation System WINDOS XP/WIN7/8
