15030 Wood Lathe Machine, Lathe for Turning Wood, Automatic Wood Lathe Machine for Billiard table legs

Short Description:

1. Maximum working length is 1500mm, Max turning diameter is 300mm (Customization is avaiable)
2. Two cutters at two sides of machine, work together, improve the efficiency greatly

3. Linear square rails, ball screws and electronic components.
4. Cast iron structure, heavy-duty, avoid shaking when the spindle rotates fast.
5. Files can be drew by AUTOCAD or other software, transfer by a USB.

6. Professional operating system, easy operation.
7. If you want to engrave pattern, we will add a spindle on machine to do it.

Send email to us

Product Detail

Product Tags

Wood lathe main features :

1). Maximum working length is 3000mm, Max.turning diameter is 300mm.

2).You can choose 1 cutter machine, Also can choose 2 cutters at two sides of the machine, the 2 cutters work together,improve the efficiency greatly.Also , you can choose machine with one spindle for engraving pattern

3).Linear square rails, ballscrews,some electronic components are imported, high precision and durable.

4). It is heavy-duty, heavy weight, avoid shaking when the spindle rotates fast.

5). Easy operation, we can draw by autoCAD and other softwares, transfer the files to machine by a USB.

6). If you want to engrave stripe, we will add a 3.5kw air cooling spindle, and add a 4.0kw stepper motor on 1 cutter machine/ a 5.5kw stepper motor on 2 cutters machine.

7). We will customize the size of machine according to customer’s need.

Description		Parameters
Model	APEX15030	APEX20030	Customized
Table Bed Size (mm)	1500 *300mm	2000 *300mm	Customized
Controller system	DSP control system
Cutting speed
Inverter	Fuling inverter
Driving System	Step motor and drivers
X,Y,Z axis guide rail	Taiwan HIWIN guide rail
Repeat positioning accuracy	±0.05mm
Process precision	±0.35mm
Transmission model	Gear rack drive
Working Voltage	110V/ 200V/ 380V
Software supported	TYPE3/ARTCAM/UCANCAM/CAXA/MASTERCAM/ Other software output code
Cutter	Four cutter Two spindles and two rotary axis

Various cylindrical workpiece,wooden handle,baseball bat,bowl sharp, tubular sharp and vehicle wood crafts,

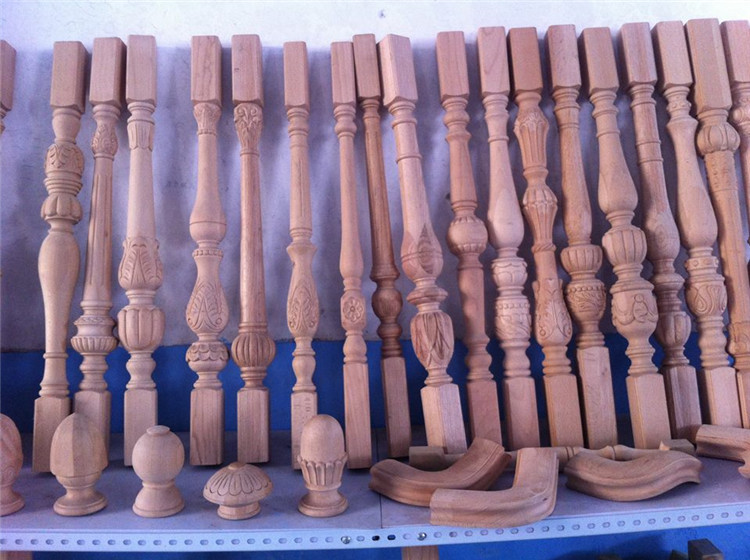

Various staircase column,stairway balusters,stairway newel posts,dining table legs,end table legs,sofa table legs,bar stool legs,Roman column,General column,washstand,wooden vase,wooden table,basebal bat,car wooden furniture,children’s bed column,chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts and so on.

Jinan Apex Machinery Equipment Co.,Ltd is a comprehensive enterprise who is devoted to manufacturing cnc router, laser
engraving machine, laser marking machine, plasma cutting machine, stone carving machine.
All products have to pass   strict inspection before delivery, and applied the CE, ISO, certificate if the clients must need. Factory
covers about 3000 square meters, including R&D center. It has about 300 staffs,  10 engineering experts and 18 technical
engineers included, After years of continuous efforts and clients supporting till nowadays, it has developed a working system
model of design, production, trade  one stop service. The new and existing customers are spreading throughout the South
America,Middle East, Southeast Asia, Africa, Europe and other Counties and places.
Welcome friends world widely come to visit and expect further continuous support please.

Packing and shipping

1. Strong water resit bottom in plywood.

2. Metal laser cutting machine parts with separated plywood case.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
