180-200w Laser Tube Power Source W200

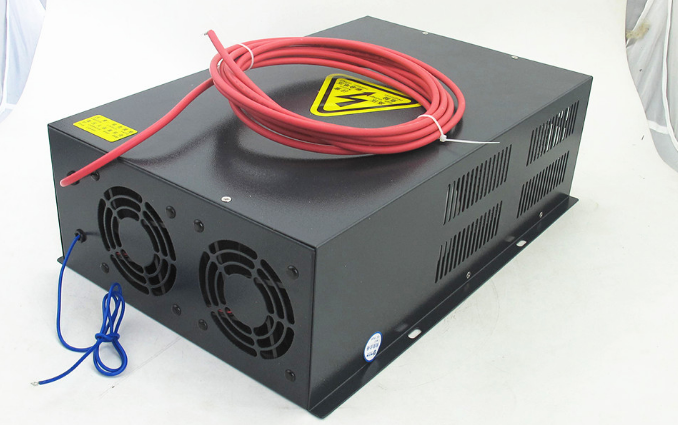

Model: HY-W200 laser power supply for 180w-200w laser tubes on laser cutting machine.
Packing List:
<1> HY-W200 power supply*1pc;
200w co2 power supply HY-W200 Main Feature
1. Very wide range of Input Voltage: AC110-AC220V
2. Current has high stability: when the input voltage is unstable, current change rate less than 1%.
3. Good compatibility: It can be applicable to 180w-200w EFR/RECI/YONGLI,WEEGAINT/SP ect brands co2 laser tubes manufactured by different factories.
4. This Power Supply has the”TEST” button which can test output laser manually.
5. The Laser Power Supply has high Output Power, good stability; this can prolong laser tube’s service life
6. HY-W200 Application: 180w-200w co2 laser tube cutter and engraver for cutting and engaraving non metal materals as Sculpture and cut acrylic, fabric, double color sheet ,rubber etc.
HY-W200 co2 laser power supply Specification
| Input | Input Voltage | AC110V-AC220V | |
| AC frequency | 50Hz/60Hz | ||
| Max input power | 1000w | ||
| Max output current | 8A | ||
| Output | Max Output Voltage | DC 45KV | |
| Max Output Current | DC 35mA(can adjust higher if you need it) | ||
| Efficiency | ≥90 percent (full load) | ||
| MeanTime Between Failure (MTBF) | ≥10000 hour | ||
| Response Speed | ≤1ms(from the switch Signal is given to the output current up to 90% of the setting current) | ||
| Withstand Voltage | Input-Output, Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell. | ||
| Environment | Operating Temperature:-10~40°C),Relative Humidity (RH)≤90 percent | ||
| Cooling Way |
Force-Air Cooling (FAC) |
||
| Dimension | L×W×H=363*251*112 (mm) | ||
| Color | Black | ||
Terminal definition as follow:
| TH | Input Signal | The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser. |
| TL | Input Signal | The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser. |
| WP*1 | Input Signal |
The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser. |
| G | GND | This foot must be connected well with the shell of laser machineand the ground of control board. |
| IN*2 | Input Signal | The control of laser power: Both 0-5V analog signaland PWM signal can control the laser power. |
| 5V | Output Power | Output 5V, the maximum output current is 20mA. |
Function of control interface:
|
TH |
TL |
WP |
IN |
Laser Output |
|
unconnected |
Low(≤0.3V) |
Low(≤0.3V) |
0-5V or PWM |
Output laser Power: Pmin~Pmax |
|
Low(≤0.3V) |
unconnected |
Output about 40% laser |
||
|
High(≥3V) |
Any value (ok) |
No laser |
||
|
High(≥3V) |
Unconnected |
0-5 or PWM |
Output laser, Pmin~Pmax |
|
|
High(≥3V) |
Unconnected |
Output about 40% laser |
||
|
Low(≤0.3V) |
Any value (ok) |
No laser |
||
|
Any value (ok) |
Any value (ok) |
High(≥3V) |
No laser |
