2019 China New Design China 4 Axis Engraving/Cutting/Drilling/Milling Wood Acrylic MDF 1325 Atc Italy Spindle CNC Router Price with Rotating Spindle

Short Description:

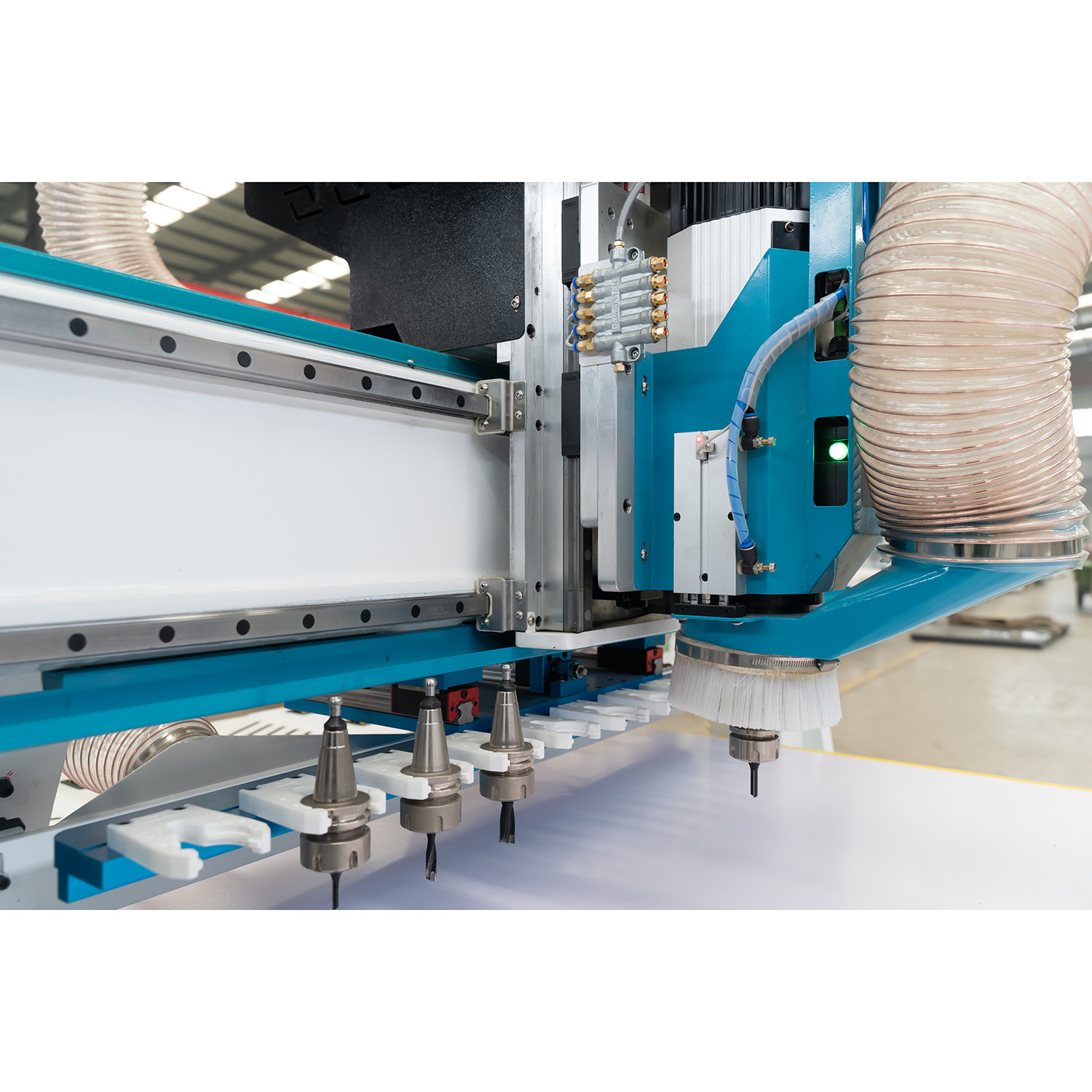

ATC cnc router with linear auto tool changer 12 tools, can choose 10 tools, 8 tools, 6 tools etc.
Well-known 9.0KW HSD ATC spindle, strong cutting ability, low noise, long working time. Other configuration including Taiwan LNC control system, Japan yaskawa servo motor, Taiwan Detal inverter, HIWIN guide rail, Helical rack etc.
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    video

    Product Tags

    Well-run devices, expert profits group, and better after-sales companies; We have been also a unified huge family, everybody keep on with the organization worth “unification, determination, tolerance” for 2019 China New Design China 4 Axis Engraving/Cutting/Drilling/Milling Wood Acrylic MDF 1325 Atc Italy Spindle CNC Router Price with Rotating Spindle, To realize reciprocal advantages, our enterprise is widely boosting our tactics of globalization in terms of communication with abroad shoppers, rapid delivery, the very best good quality and long-term cooperation.
    Well-run devices, expert profits group, and better after-sales companies; We have been also a unified huge family, everybody keep on with the organization worth “unification, determination, tolerance” for China Router, Cnc Router, We have now won a good reputation among overseas and domestic clients. Adhering to the management tenet of “credit oriented, customer first, high efficiency and mature services”, we warmly welcome friends from all walks of life to cooperate with us.

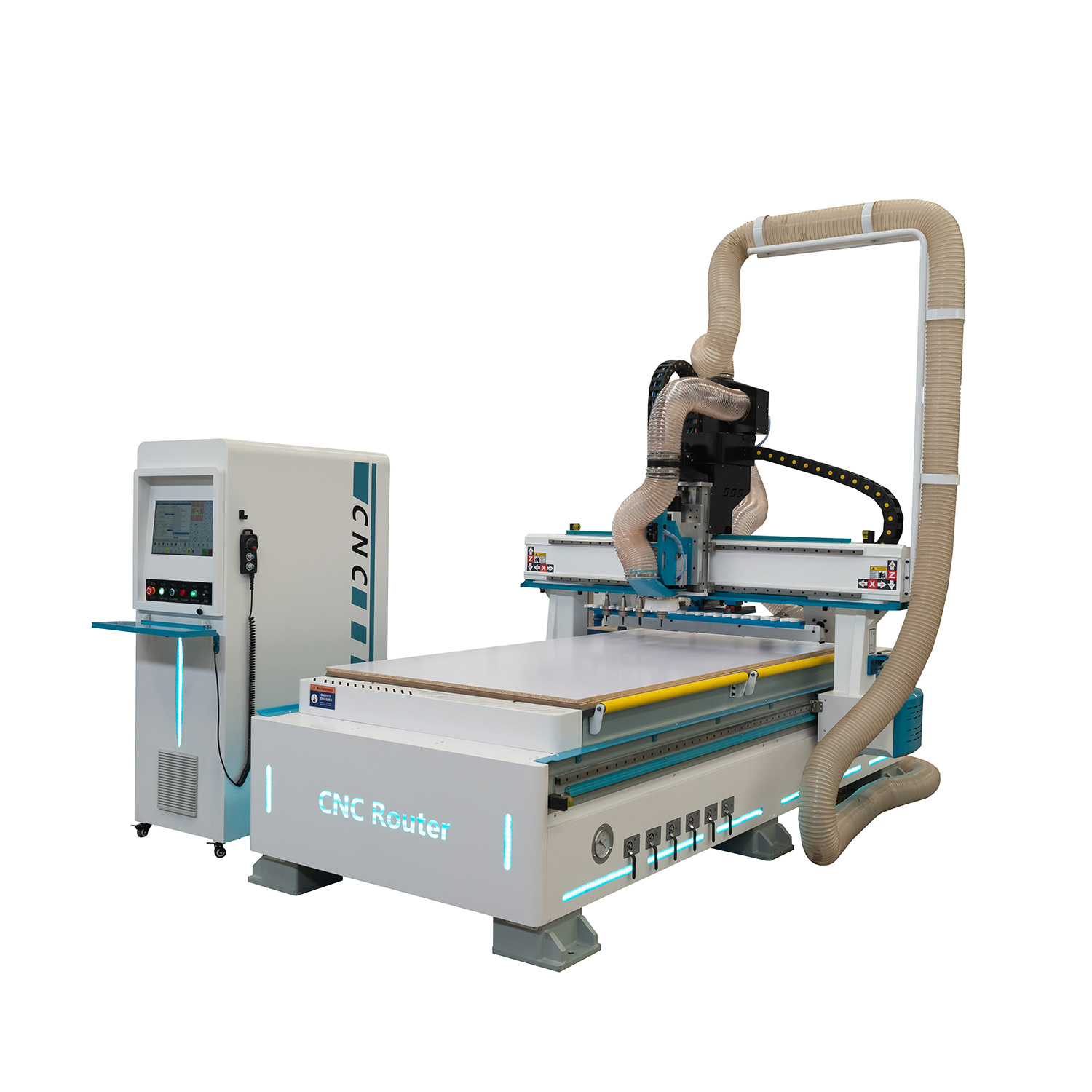

    DSC00294

    Technical parameters of ATC cnc router

    Standard Configurations
    Model & Name FM1325
    Brand FIRMCNC
    Working Area 2500*1300mm
    Table Vacuum and T-slot table
    Control system Taiwan LNC CNC control system
    Spindle  9.0KW air cooling spindle
    Auto tool changer Carousel auto tool changer for 12 tools
    ( 6 tools, 8 tools, 10 tools for choose)
    Body structure Heavy steel welding structure
    (more than 10mm thickness)
    Motor and drivers Chinese Leadshien servo motor and drivers
    Rail guide Taiwan HIWIN square guide rails
    INVERTER Taiwan Delta INVERTER
    X,Y axis transmission Germany Herion helical rack and pinion
    Z axis transmission Taiwan TBI ball screw for Z axis
    Electronic components France Schneider electronic components
    Limit switch Japan Omron limit switch
    Limit switches at both ends of the X & Y axis
    Vacuum pump 11KW water vacuum pump
    Dust collector Dust collector with double bag x 2
    Coolant Attachment Yes
    Protective sheet Yes
    Tool setting gauge Auto
    Lubrication system Auto
    Technical Parameter
    Working area 2500*1300*300mm
    X,Y,Z Traveling Positioning Accuracy ±0.01/2000mm
    MAX. Traveling Speed ≥50000mm/min
    MAX. Cutting Speed ≥25000mm/min
    Commend Code G Code
    Working voltage AC380V/3P/50Hz
    Interface USB
    Rated power At most 18KW·H
    N.W./G.W. 2800KG/ 2900KG
    Runing environment Temperature:0ºC~45ºC  Relative Humidity: 30%~75%

    Well-run devices, expert profits group, and better after-sales companies; We have been also a unified huge family, everybody keep on with the organization worth “unification, determination, tolerance” for 2019 China New Design China 4 Axis Engraving/Cutting/Drilling/Milling Wood Acrylic MDF 1325 Atc Italy Spindle CNC Router Price with Rotating Spindle, To realize reciprocal advantages, our enterprise is widely boosting our tactics of globalization in terms of communication with abroad shoppers, rapid delivery, the very best good quality and long-term cooperation.
    2019 China New Design China Router, CNC Router, We have now won a good reputation among overseas and domestic clients. Adhering to the management tenet of “credit oriented, customer first, high efficiency and mature services”, we warmly welcome friends from all walks of life to cooperate with us.
