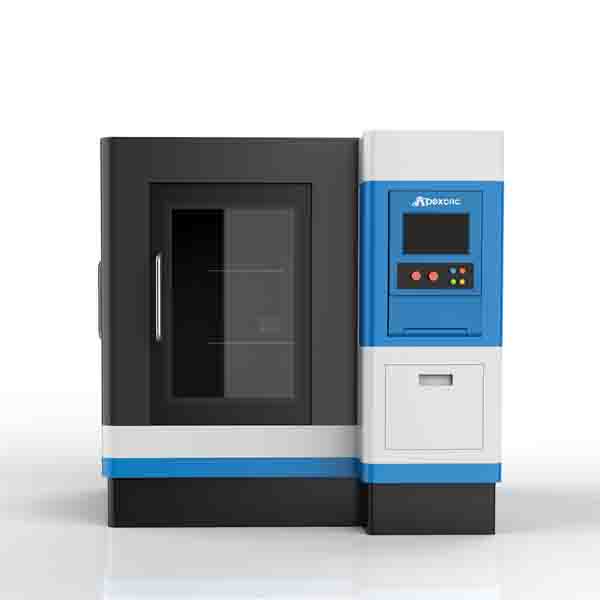

2023 New Design Encolsed CNC 3D Milling Machine

Short Description:

APEX-AP6060
Fully-cover design, much more safer to operate.
The machine body is cast iron steel, whole structure. Gantry is fixed on worktable, so it has the advantage of high density and strength, which will enable the machine work in lifespan and keep the parallelism between router and gantry.

Send email to us

Product Detail

Product Tags

Features of the CNC Milling Machine

High Gread series, fully-cover, AP6060 ( working area 600* 600mm), can choose AP4040 (working area 400* 400mm), AP6090 (working area 600*900mm), machine can be customized.

X,Y,Z Transmission

3.0 kw Constant Spindle

X,Y Z axis of metal mould cnc router are equipped with TBI ball screw transmission to keep stable processing .
Provide Positive Drive without slip, with high speed, high torque & high power.

Changsheng constant 3.0kw water-cooling spindle, 5.5KW, 7.5KW can choose.
Long service life, stable operation. Water cooling spindle made in china can be optional.

Delta Inverter

Servo Motor Driver

It has adjustable V/F curve and simple vector control, 16 big microprocessor controlled PWM output, automatic torque boost& slip compensation.low noise, highly ensure the spindle working ability

Leadshine stepper driving system by default
Users can also choose other brand, as Japanese Panasonic/ Yaskawa AC servo driving system

Working Table

Control System

Movable T-slot cast iron table
High duty frame, 8mm thickness

NCstudio / DSP/ Multech TK100 / WEIHONG NK280 / Syntc control system for choose

Parameters of the CNC Milling Machine

Standard Configuration
Model & Name	AP6060
Brand	APEXCNC
Working Area	600600200mm
Control system	Ncstudio control system
Spindle	3.0KW water cooling spindle
Motor and drivers	Servo motor and drivers
Rail guide	Taiwan HIWIN square rails
Ball Screw	Taiwan TBI grinding ball screw
Inverter	Fuling inverter
Electronic components	France Schneider electronic components
Software	Artcam software
Limit switch	Japan Omron limit switch
Working Dictate	G-code
Water cooling system	Included
Technical Parameters
Working area	600600200mm
Spindle power	3.0KW
Spindle speed	24000RPM
Working Accuracy (mm)	≤0.01mm
X,Y,Z Traveling Positioning Accuracy (mm)	≤0.01mm
Max. Idling Speed	60m/min
Max. Working speed	40m/min
Commend Code	G Code
Diameter of Cutter	φ3.175-φ12.7
Cooling Mode	Water-cooling
Working voltage	380V 3P 50HZ

Applications & Customers Samples Photos

APPLICATIONS

Widely apply to automotive,injection mould,ironware mould and engrave mould industries.
Especially designed for engraving and milling molds, eyeglasses, watches, panels, badge, brand, graphics and words of three-dimensional and outside surface's sleeking of large size.

MATERIALS
It is suitable for engraving, milling and drilling compactly all sorts of materials, such as stainless steel, carbon steel, copper, aluminum fiber glass, plastics, etc.
