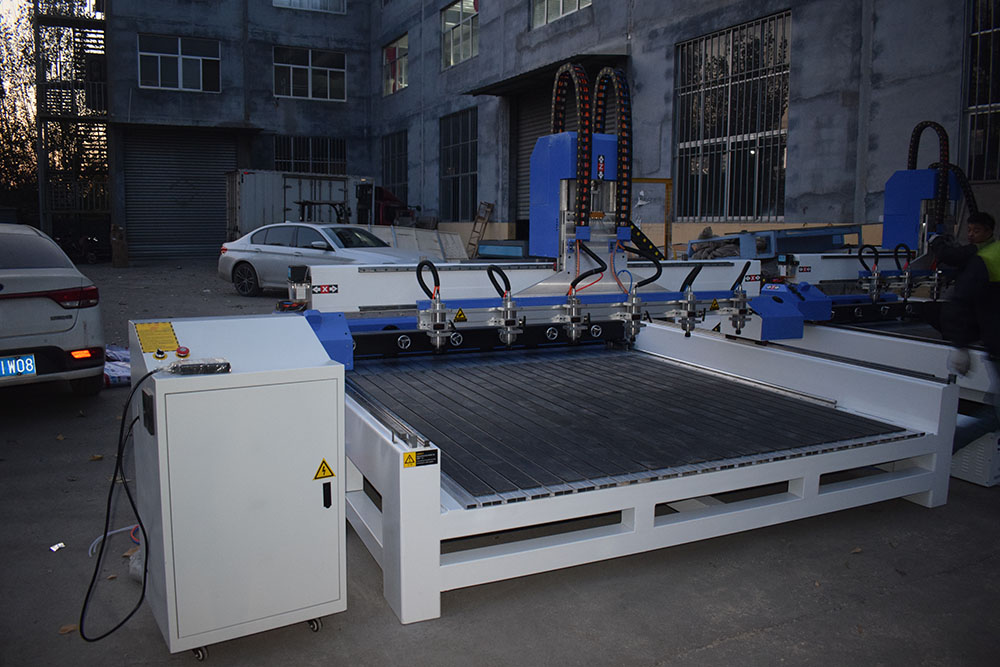

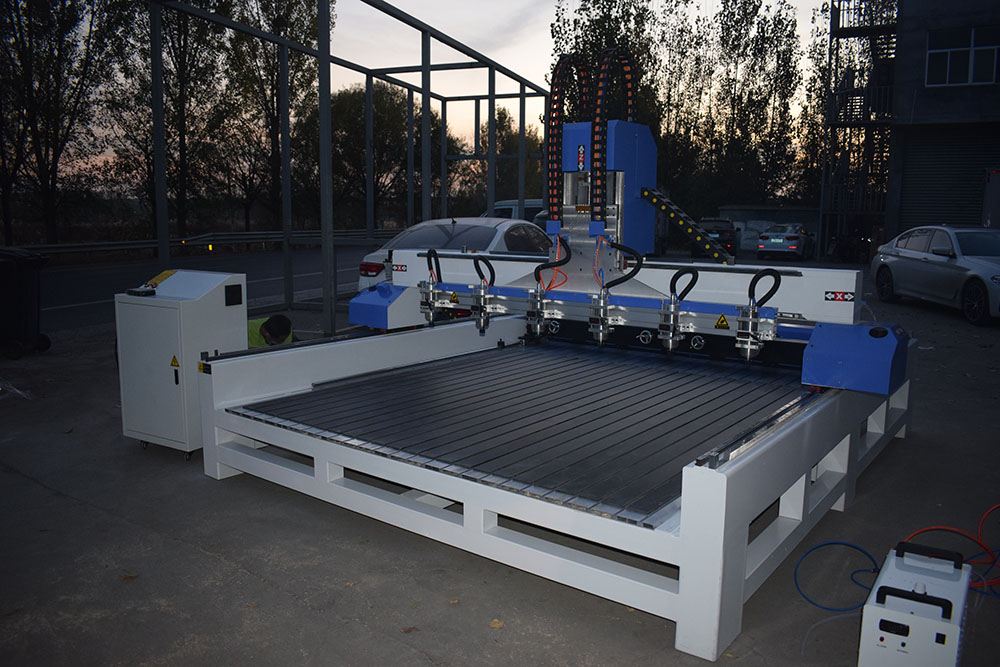

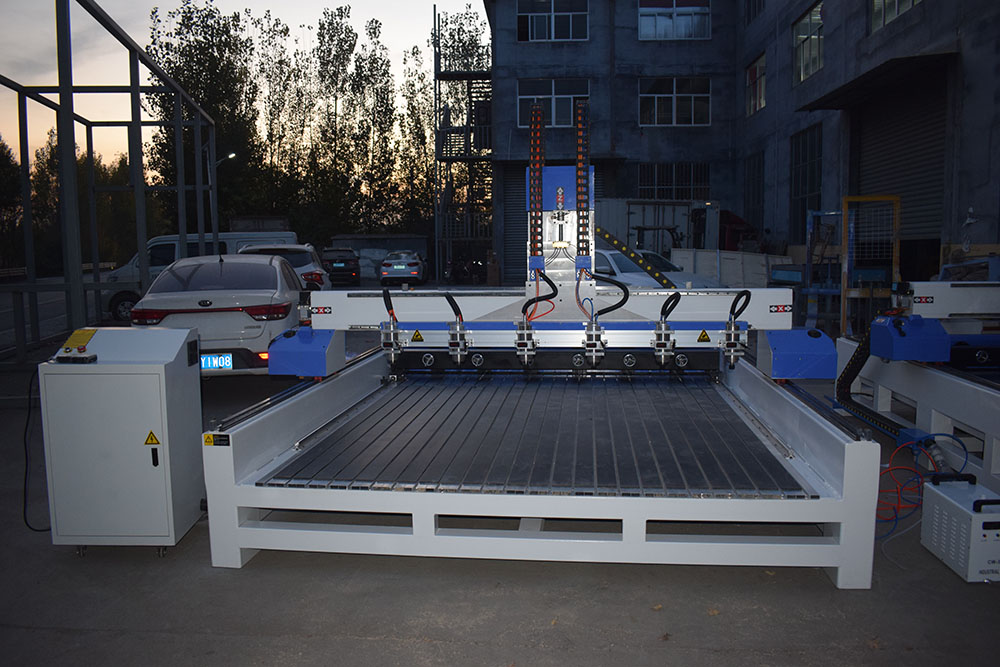

Sale at Affordable Price 2030 six Heads 3D Carving CNC Router Machine

Short Description:

This is multi heads and spindles 3d cnc engraving machine, mainly used in the processing of cylindrical objects, such as a cylindrical craft, cylinder furniture accessories, stair railing, cylindrical musical instruments and so on.

Send email to us

Product Detail

video

Product Tags

Affordable 3D carving CNC router machine with four heads is used for 3D CNC machining of furniture bulk production, 3D sculptures and complex artworks with high?speed, high precision, high efficient and low noise. Now the 3D CNC router machine for sale at affordable price.

Product Descriptions

Technical Data:

Description	Parameter
Model	APEX2025
X,Y,Z working area	2500* 2000* 200mm
Resolution	±0.03/300mm
Repeatability	±0.03mm
Table Structure	T-slot table
Lathe Structure	Welding steel structure
X,Y structure	Rack pinion, Hiwin linear rails
Z structure	TBI Ball screw, Hiwin square rails
Max. rapid	32000mm/min
Max. Working speed	25000mm/min
Rotary axis diameter	100mm , 150mm, 200mm, 250mm, 300mm optional
Spindle power	1.5kw, 2.2kw, 3kw water cooling spindle optional
Spindle speed	0-24000RPM
Working mode	Stepper or servo
Working voltage	AC380V/50/60Hz,3Ph(Option 220V,3Ph)
Command code	G code
Operating system	Mach3 system (Ncstudio, Syntec,DSP )
Interface	USB
Memory	128M
Tool holder	ER25
X,Y working accuracy	<0.03mm
Software	Artcam, Type3 UcancameV9
Working temperature	Temperature:0 degree-45 degree Humidity:30%-75% (No Condensation)
Optional Spare Parts	Air-cooling spindle
	Double bag dust collection,vacuum pump
	rotary

Main features
1. 2.2KW or 3.0KW constant water cooling spindle(optional HQD or HSD spindle), high precision, long life time, steady working, easy to start up.

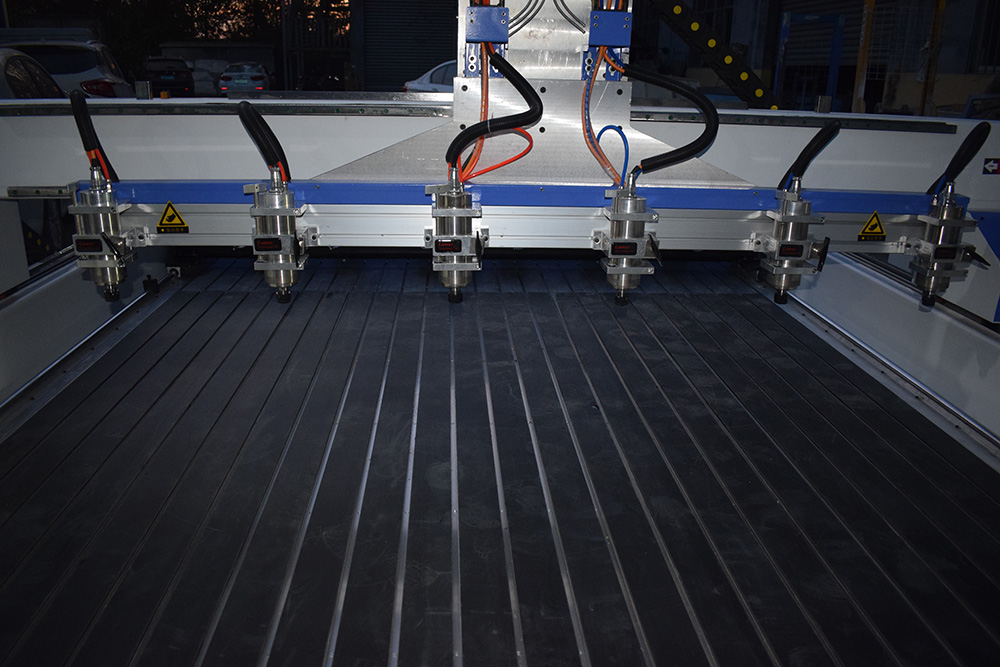

2. 8 spindles 8 rotation axis, rotation axis diameter optional 100mm, 150mm, 200mm etc
3. Thicken square pipe structure, well welded,no distortion for whole structure.
4. Adopt Taiwan square orbit, double slippers. Bearing heavy, working steadily high precision, and long life time.
5. Control system: 4 axis DSP controller system, optional Mach3, NCstudio control system
6. Support scanners,direct support ,Art CAM,Type3,Wen tai,carving and many other G-code format generated by CAD/CAM
7. Adopt high speed step motor and drivers
8. Dust collector (contain dust collector pump and dust collector pipes), for sucking away the dusts, such as wood dusks and so on.

Application:
#Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
#The wood products: voice box, game cabinets, computer tables, sewing machines table,instruments.
#Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
#Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper engraving and milling process.

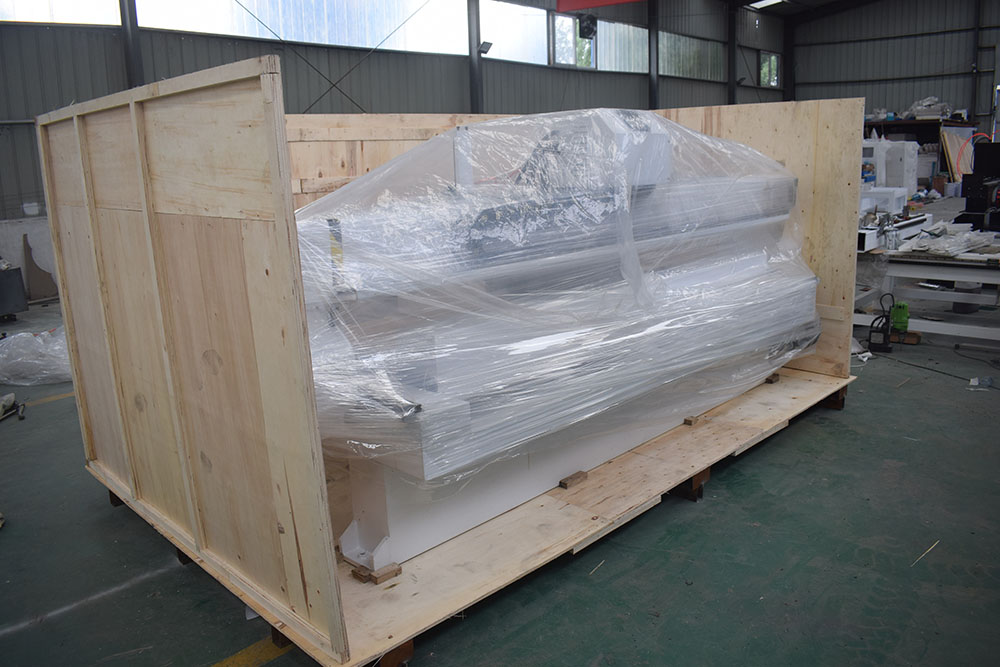

Packing and shiping
1. Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
3.Improved package, much more strong and environmental protection.
4.We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
