CNC router 1325 size 3D model 2021 best sellers

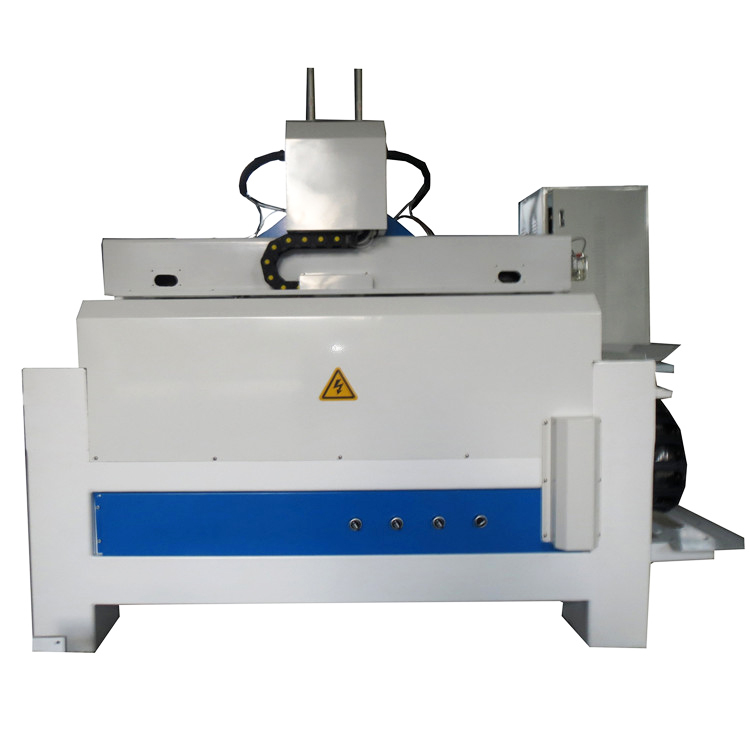

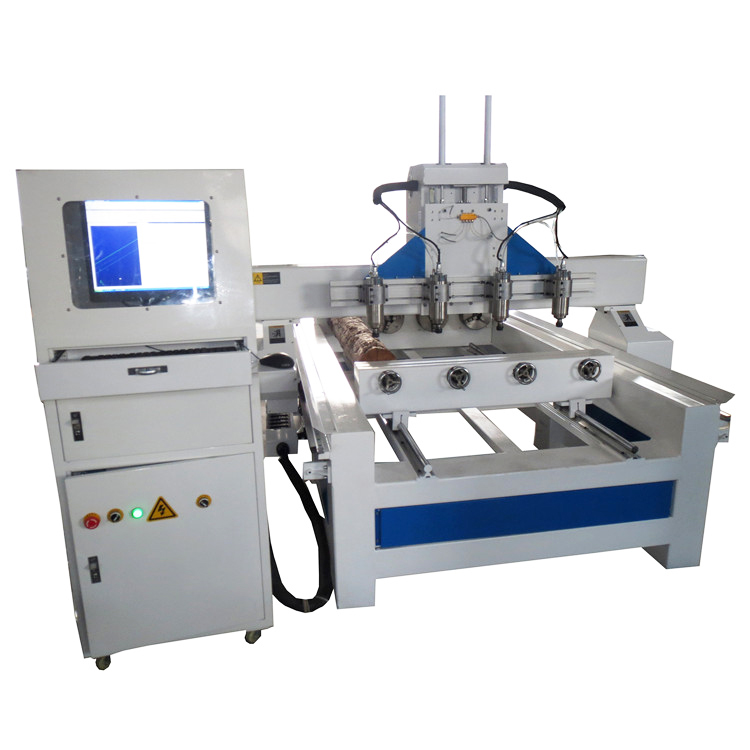

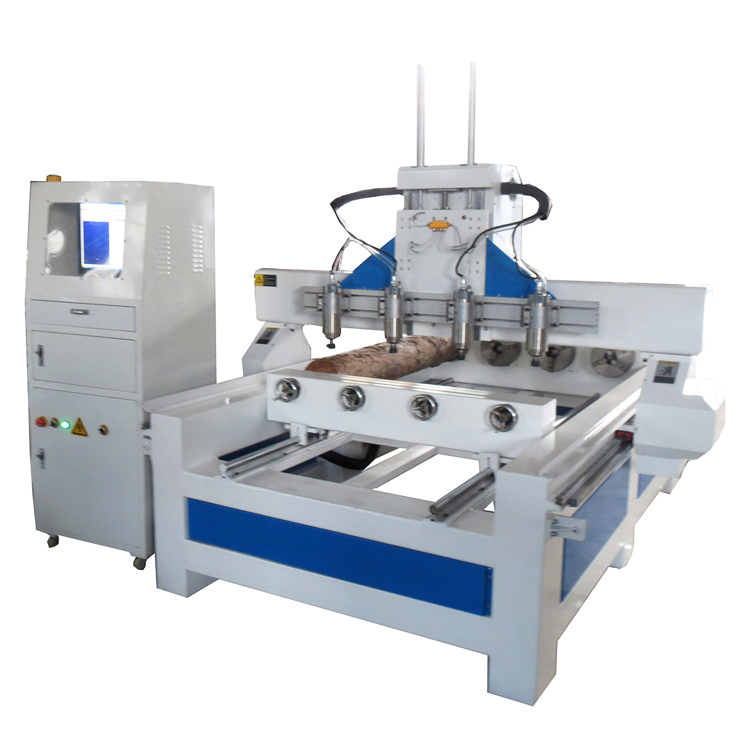

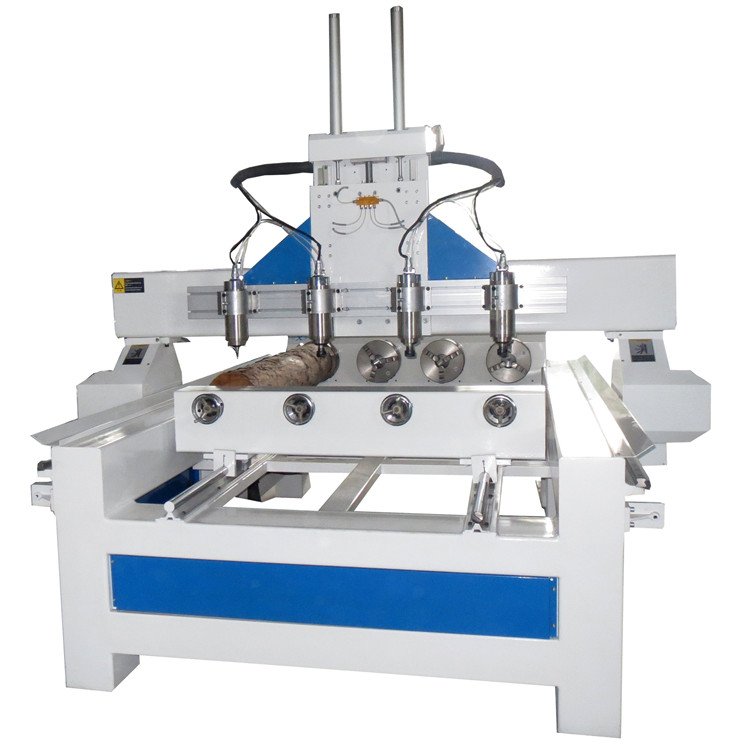

3D CNC machine with 1325 table size and with rotary axis, applicating for 3D CNC machining of staircase handrails, wooden pillars, stool legs, table legs, wood arts, crafts, gifts and toys, etc.
Demonstration Video
Product Descriptions
Features of 3D CNC machine with 4×8 Table Size:
1. Steel gantry, cast Iron uprights, high rigidity.
2. Y axis adopts durable driving by synchronizing wheel consist of belt and gear shaft. High power sub-division motors keep stable moving, improve your working efficacy.
3. Power outages, breakpoint, continued carving. More intelligent. It will start the work automatically at the point from which the power cut off.
4. Using quality sensor switch, improve the 3D machine working safty.
5. Multi spindle work at the same time, greatly improve the work efficiency.
Applications of 3D CNC machine with 4×8 Table Size:
1. Furniture decoration industry: large area plate plane carving, wood carving and board type furniture carving. Solid wood art mural, solid wood door, cabinet door sculpture.
2. Wood products processing: sewing machine desktop, electrical counter desktop, sports supplies equipment.
3. Instrument industry: 3d curved surface, shape cutting.
Technical Parameters of 3D CNC Machine with 4×8 Table Size:
| Description | Parameter of 3d wood carving machine | ||
| Model | APEX1325 | APEX1530 Option | APEX2030 Option |
| Working area | 2500*1300*300mm | 3000*1500*300mm | 2000*3000*300mm |
| Rotary axis diameter | 100mm , 150mm, 200mm, 250mm, 300mm optional | ||
| Transmission | X/Y Axis helical rack and pinion,Taiwan Hiwin railsZ Axis Taiwan TBI ball screw ,Taiwan Hiwin rails | ||
| Lathe Structure | 8mm thickness welded steel heavy duty structure | ||
| Working Form | Full-automatic | ||
| Spindle power | 1.5kw, 2.2kw, 3kw water cooling spindle optional | ||
| Spindle speed | 0~24000r/min | ||
| Travelling speed | 15000mm/min | ||
| Working speed | 10000mm/min | ||
| Motor system | Step or servo motors and drivers | ||
| Voltage | AC380/3PH/50HZ | ||
| Controller | Mach3/NC-studio/DSP controller optional | ||
| Inverter | Best / Fuling / Delta Inverter optional | ||
| Command | G code (HPGL,U00, mmg, plt) | ||
| Diameter of Cutter | φ3.175-φ12.7 | ||
| Software | UG/Alpha Cam/Becam/Type3/UcancamV9/CATIA/Vetric Pro/Power Mill | ||
| Tool Magazine | Linear-style auto-tool changer system with 8 pieces of tools | ||
| Weight | 1550KG with package | ||
|
Optional Parts |
Rotary System | ||
| Mist-cooling System | |||
| Dust Collector | |||
| Vacuum Pump | |||

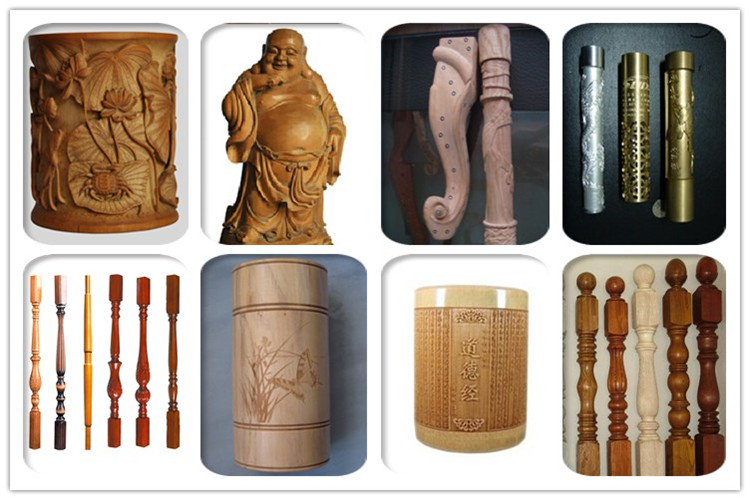

Application of cnc wood router
Suitable for furniture, home improvement, woodworking decoration, doors, wooden handicrafts and other industries manufacture.
Dimensional wave board processing, carving, cabinet doors, wooden craft, paint doors, screens, process window, or styling products such as carved.
Mainly used in the processing of cylindrical objects, such as a cylindrical craft, cylinder furniture accessories, stair railing, cylindrical musical instruments and so on
2) If you have any questions during using and maintaining, our engineers who could speak
very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional damages, we would
provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug
and fix.
5) Could be remote control if needed.
