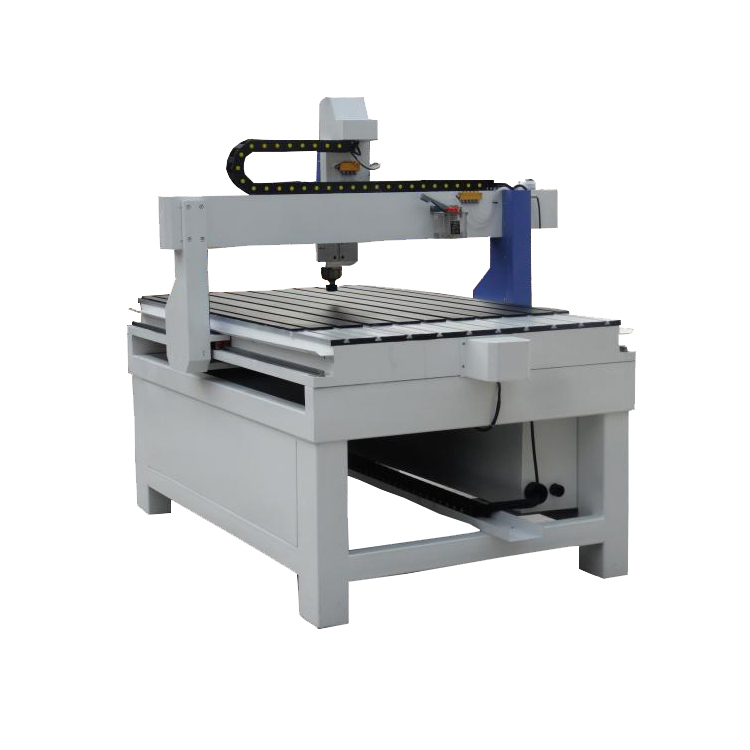

4×6 Hobby CNC Router Machine for Sale at Affordable Price
APEX1218 cheap hobby CNC router machine is equipped with 4×6 table size, standard DSP control system, stepper motors, water-cooling spindle. Now the 4×6 hobby CNC machine for sale at affordable price.
Demonstration Video
Product Descriptions
4×6 Hobby CNC router machine Features:
1. The 4×6 CNC machine body structure adopts high quality steel pipe welding, strong bearing strength.
2. The 4×6 CNC machine adopts Taiwan linear square guide rail, operating smoothly, high accuracy.
3. X, Y axis adopt rack and pinion with high speed and accuracy, at the same time, Z-axis ball screw with high precision.
4. The 4×6 CNC router machine adopts high speed stepper motor and drives.
5. 1.5 KW water cooling spindle, strong and free maintenance, continuous working.
6. Aircraft aluminum T-slot working table covered PVC protects the tools from breaking, T-slot with clamps makes it convenient to fix the materials.
7. T shape gantry makes 3 axis working stable, high speed and accuracy, customer can work on any area of the materials.
8. Optional control system, Nc Studio/DSP/Mach 3, high stability, high efficiency, easy to learn.
9. Vacuum table can absorb the materials automatically by vacuum pump, not need to fix the materials.
10. Good software compatibility, can compatible with the Artcam/Type 3/JDPaint /Ucancam, etc.
4×6 hobby CNC router Machine Technical Parameters:
| Model | APEX1218 |
| Table Size | 4×6 |
| XYZ Working Size | 1200*1800*120 mm |
| Machine body | Cast iron |
| Table Surface | T-slot table (Vacuum table for option) |
| XY structure | Ball screw drive, HIWIN square linear rail |
| Z structure | Ball screw drive, HIWIN square linear rail |
| Spindle | 1.5 kw water cooling spindle |
| Spindle speed | 0-24000 RPM |
| Drive motor | Stepper system |
| Max Rapid Travel Rate | 16000 mm/min |
| Max Working Speed | 8000 mm/min |
| Control System | DSP control |
| Software | Type3, Artcam, Ucancam |
| Command | G code |
| Machine Precision | 0.01 mm |
| Repositioning Precision | 0.03 mm |
| Working Voltage | AC 220 |
| Machine Size | 1600mmX2200mmX1500mm |
| Net Weight | 650KG |
| Dust Collector | optional |
| Remark | We can customize the model for any machining size |
Option Items of 4×6 Hobby CNC Router Machine:
1. Vacuum table with 5.5kw vacuum pump.
2. Mach3 and Nc studio control system.
3. Dust Collector system.
4. AC Servo motors.
5. Water-cooling spindle.
6. Rotary device 4th axis.
4×6 Hobby CNC Router Machine Applications:
1. Woodworking: wooden door and furniture, windows, tables and chairs, cabinets and panels, 3D wave plate, MDF, computer desk, musical instruments, etc.
2. Advertising: billboard, logo, sign, 3D characters cutting, acrylic cutting, LED/neon channel, literal-hole cut, lightbox mold, stamp, mould, etc.
3. Die industry: copper sculpture,aluminum engrave, metal molds, plastic sheeting, PVC, etc.
4. Decoration: acrylic, density board, artificial stone, organic glass, soft metals like aluminum and copper, etc.
4×6 Hobby CNC Router Machine Samples:

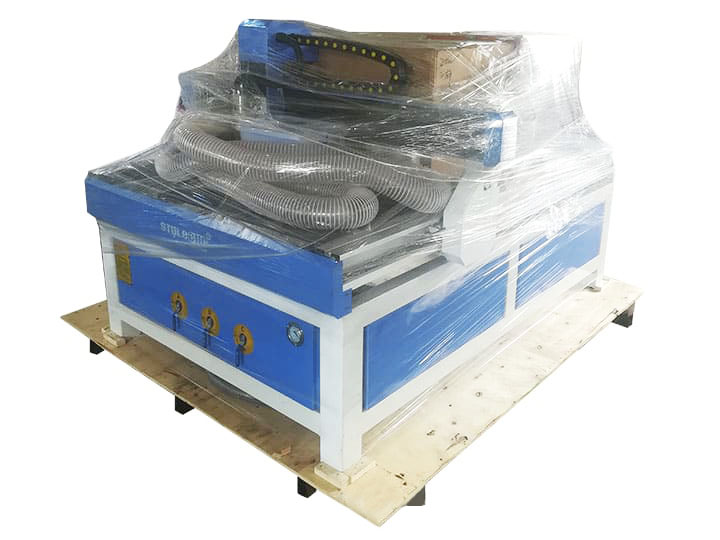

4×6 hobby CNC machine Package:
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
