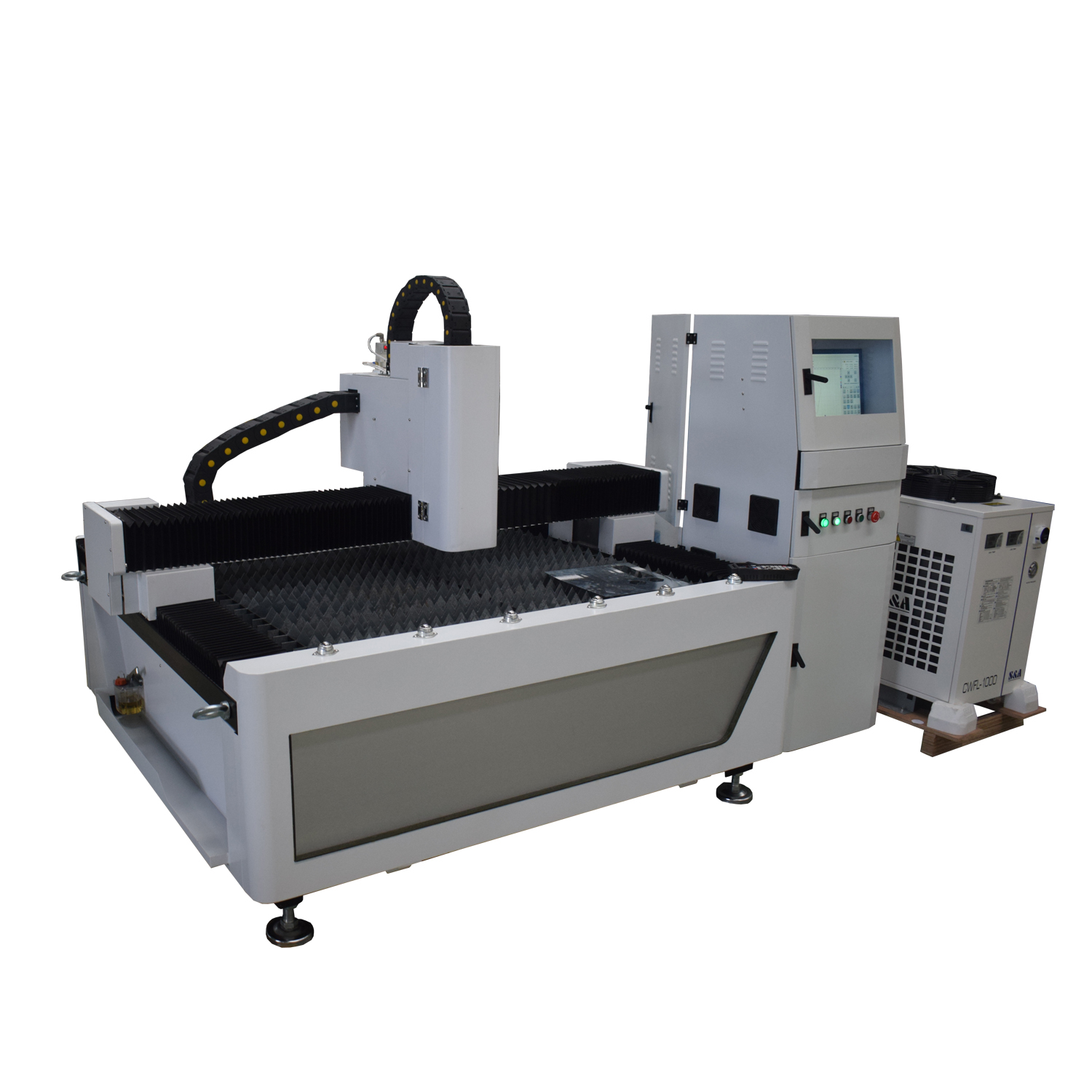

China CNC Manufacture 1390 1000w fiber laser cutting machine for metal
NO.1 Characteristics of our laser cutting machine
1. Application of gantry structure and integrated cast cross-girder to achieve higher rigidity, stability, shock resistance.
2. High-performance laser source and stable operating system which make the best cutting effect.

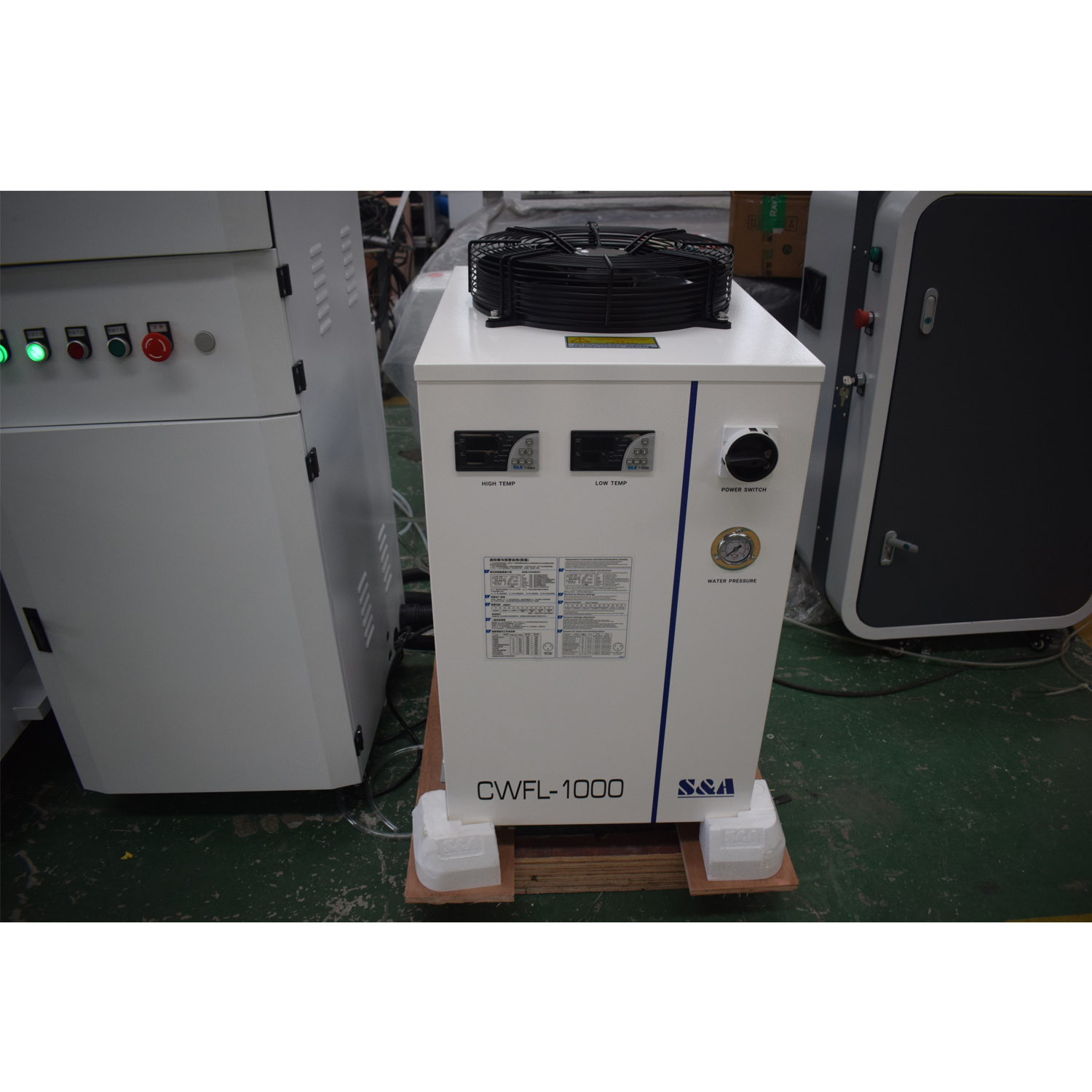

3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.
5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.

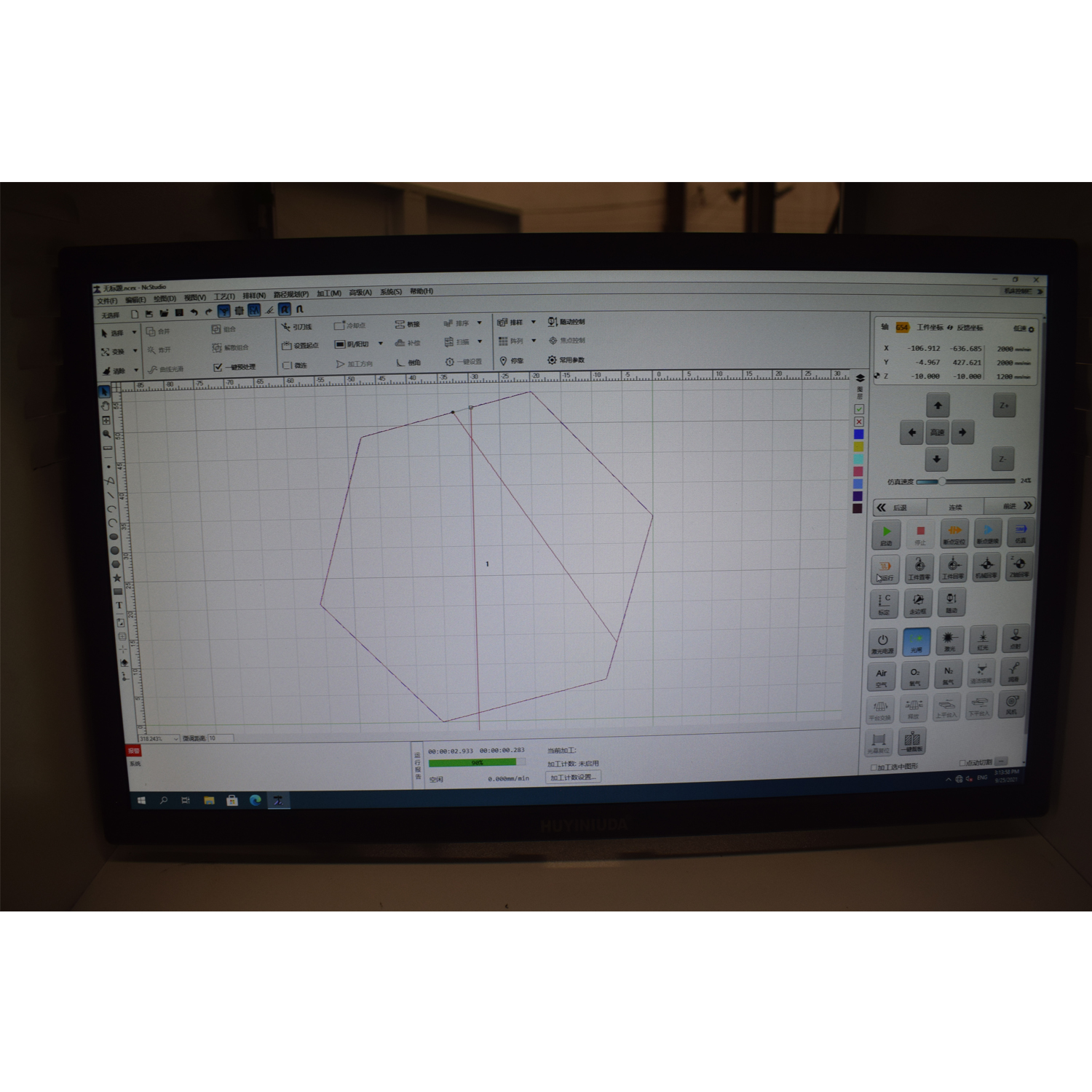

6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.
| Working Area | 1300*9000mm |
| Laser Power | 1000W/1500W/2000w |
| Laser Wave Length | 1064nm |
| Working Table | Fixed Working Table / Pallet Changer |
| Maximum Idle Running Speed | 1400mm/s |
| Position Accuracy | ±0.01mm/m |
| Moving Speed | 60m/min |
| Minimum Line Width | ± 0.02mm |
| Control System | Cypcut |
| Position Type | red dot |
| Power Consumption | ≤12KW |
| Working Voltage | AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
| Auxiliary Gas | oxygen,nitrogen,air |

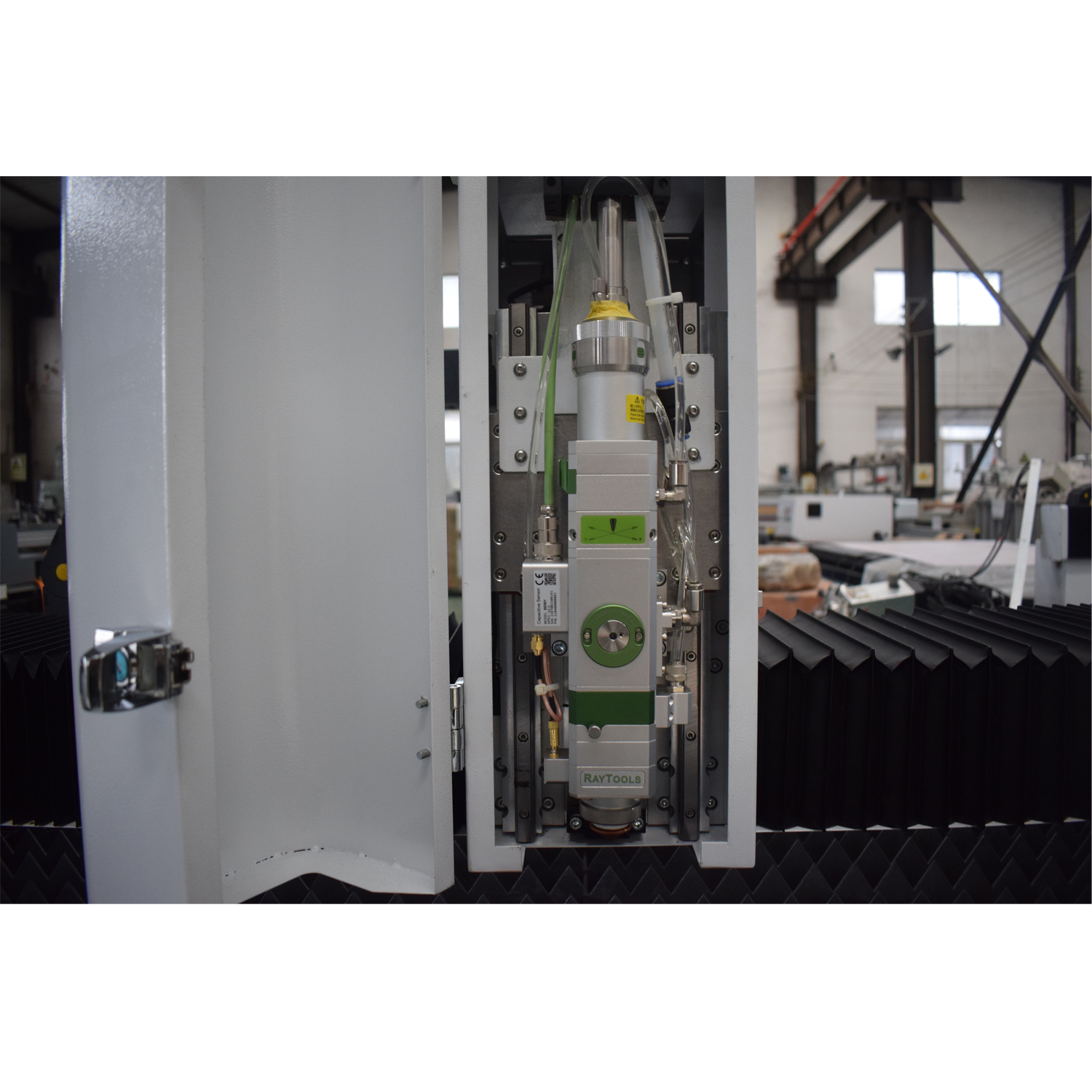

| Laser Head | Precitec / Raytools |
| Protection System | Enclosure protection |
| Focus lens | Lasermech made in USA |
| Driver system | Japanese YASKAWA servo system |
| Liner guider system | PMI H series linear guide made in Taiwan , |
| Transmit system | Dual Rack & Pinion type |
| Chain system | Igus made in Germany |
| Warranty time | Whole machine for 3 years (fiber module 2 years ) |
| Gross weight | 3000KG |
NO.2 Machine Application Field
1.Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
2.Application Industries: BODOR Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Jinan Apex Machinery Equipment Co., Ltd. is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router, laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU, CE , BV, COC, SGS certificate.
APEXCNC has 10 modern production and processing workshops, including the R&D workshop which can do special design for clients, 6 assembly workshops, 2 riveting and welding workshops, 2 machine processing workshop, more than 600 employees. Our machine are most popular among multi industries, and clients covering almost all the Countries who doing importing and exporting business. Welcome to cooperate and to be our big sales agent.
APEXCNC products are CNC router, 5 axis machineing center, 4 axis machining center, ATC CNC router, General 3 axis CNC router, CNC wood lathe, mould CNC milling machine, CO2 laser engraving cutting machine and plasma cutting machine. The application covers woodworking, advertising, Marble, Metal, Non-metal, MDF, plastic, etc. Our machines are widely sold in many countryes, European, American, Africa, Canada, England, and so on.
The aim of Jinan APEX CNC Equipment is to continuously upgrade the technique, to help our customers produce the best quality and high precision products, and offer the best after sale service.
We are looking for reliable and excellent distributors all over the world. In addition to high-quality products and good after-sales service, we will also provide you with competitive prices, to cooperate with your advertising, and provide a variety of advertising materials, text, pictures, and videos. For engraving and cutting a variety of different materials, we can provide professional design schemes and even drawings. Jian Apex Machinery Equipment Co., Ltd, We sincerely look forward to your cooperation and joining.
Not matter you are end user, or CNC machine distributor, CNC router agency, we will try all our efforts to meet your requirement. Our machine has very widely usage in the fields of advertisement application, wood furniture, metal furniture, decoration, laser marking, steel frame, stone, machine parts, even hobby and education application.
Special machine model design for you, you are special client of us,
Please feel free to contact us if you need the good quality machine, best price and the reassuring after sale service.
