Automatic 1325 3 Axis Wood CNC Router Wood Door Carving Machine for Acrylic Aluminum

Short Description:

ATC cnc router with circular auto tool changer 12 tools, can choose 10 tools, 8 tools, 6 tools etc.
Well-known 9.0KW HSD ATC spindle, strong cutting ability, low noise, long working time. Other configuration including Taiwan LNC control system, Japan yaskawa servo motor, Taiwan Detal inverter, HIWIN guide rail, Helical rack etc.
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.

Send email to us

Product Detail

Product Tags

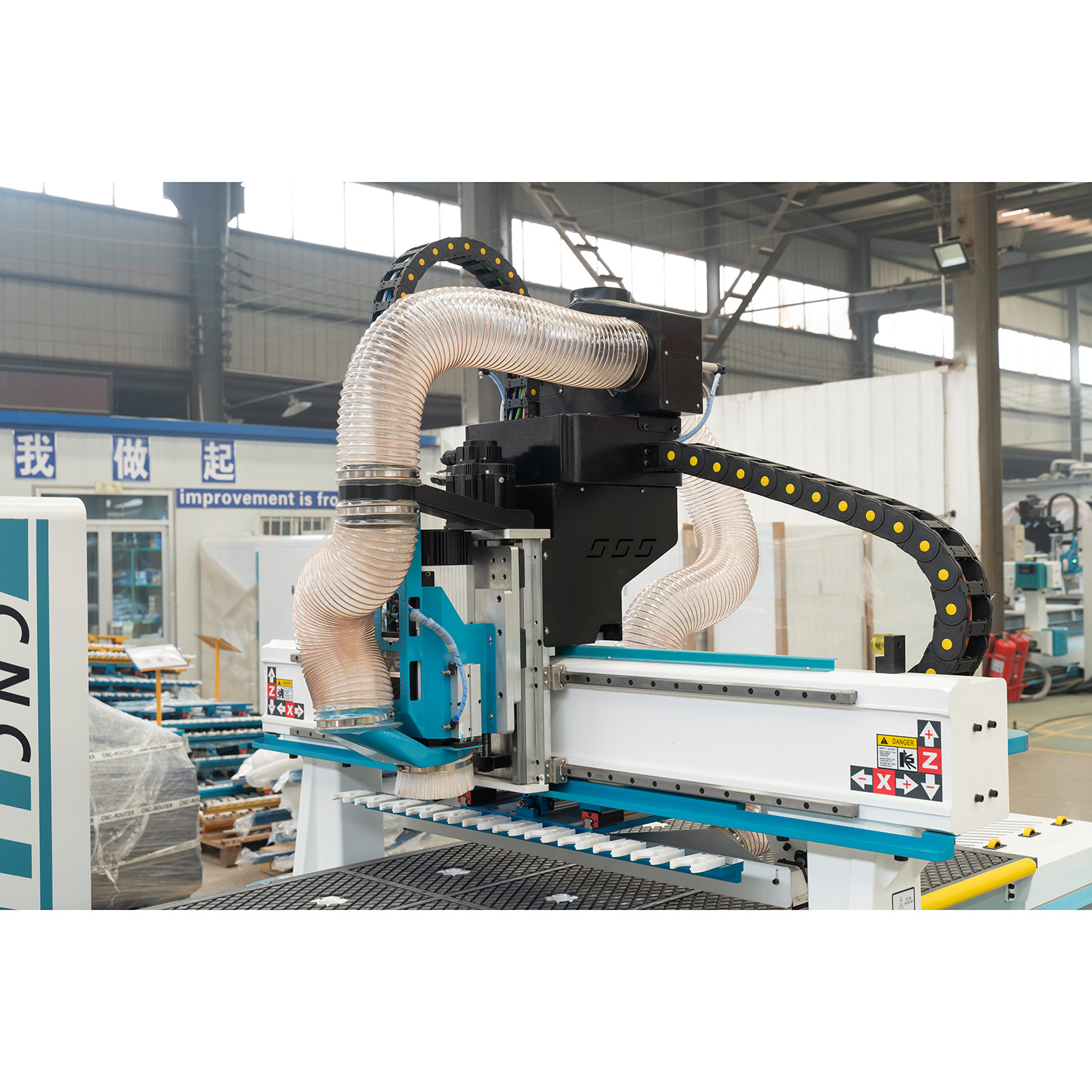

ATC CNC Router Machine features

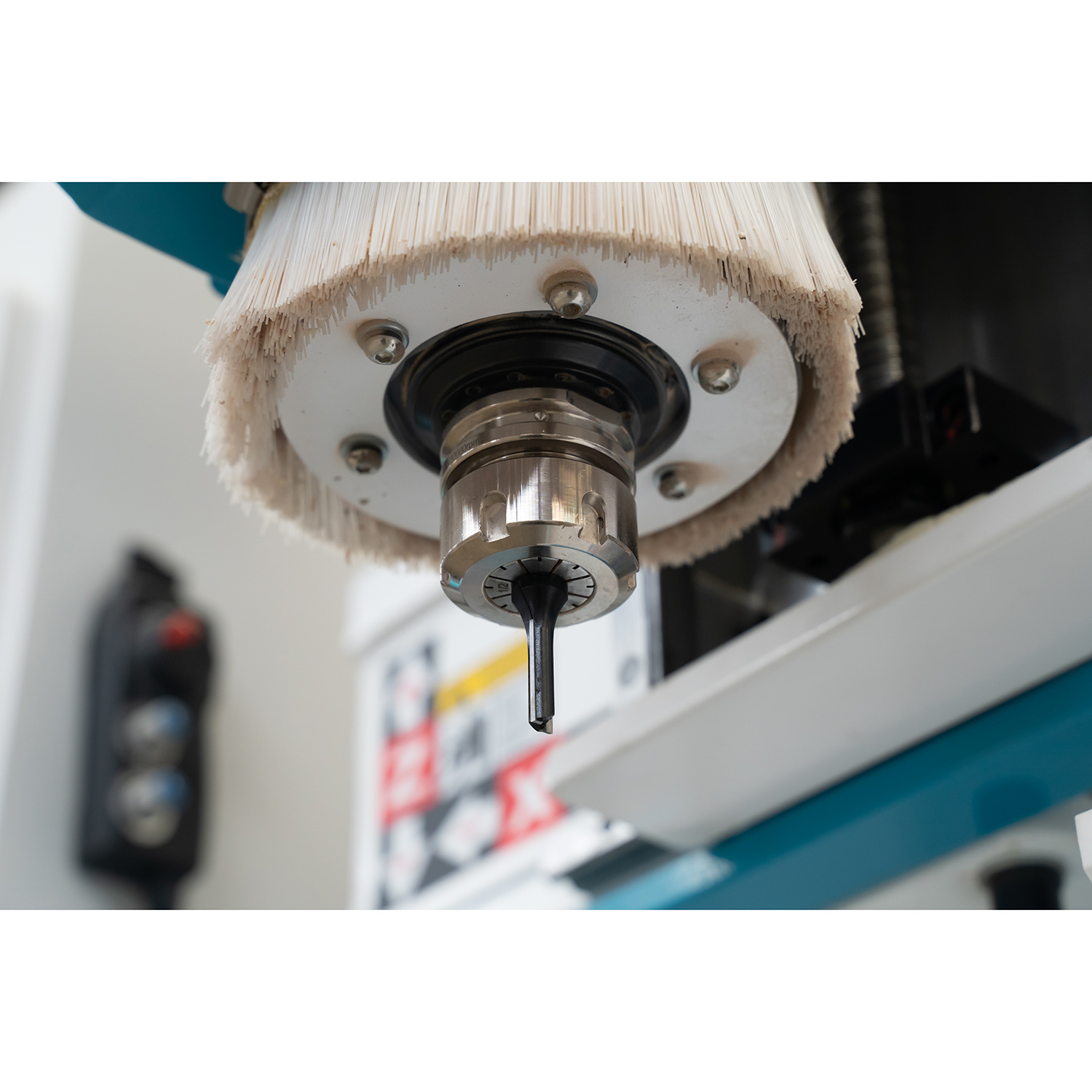

*Four air cooled spindle (HQD or Italy HSD spindle optional ),high quality and 24h continuously work.
*HIWIN square rail,good occlusion and rigidity,no distortion for long time use.
*High speed gear rack transmission for XY axis, and high precision ball screw transmission for Z axis,
ensuring high speed and high precision at same time.

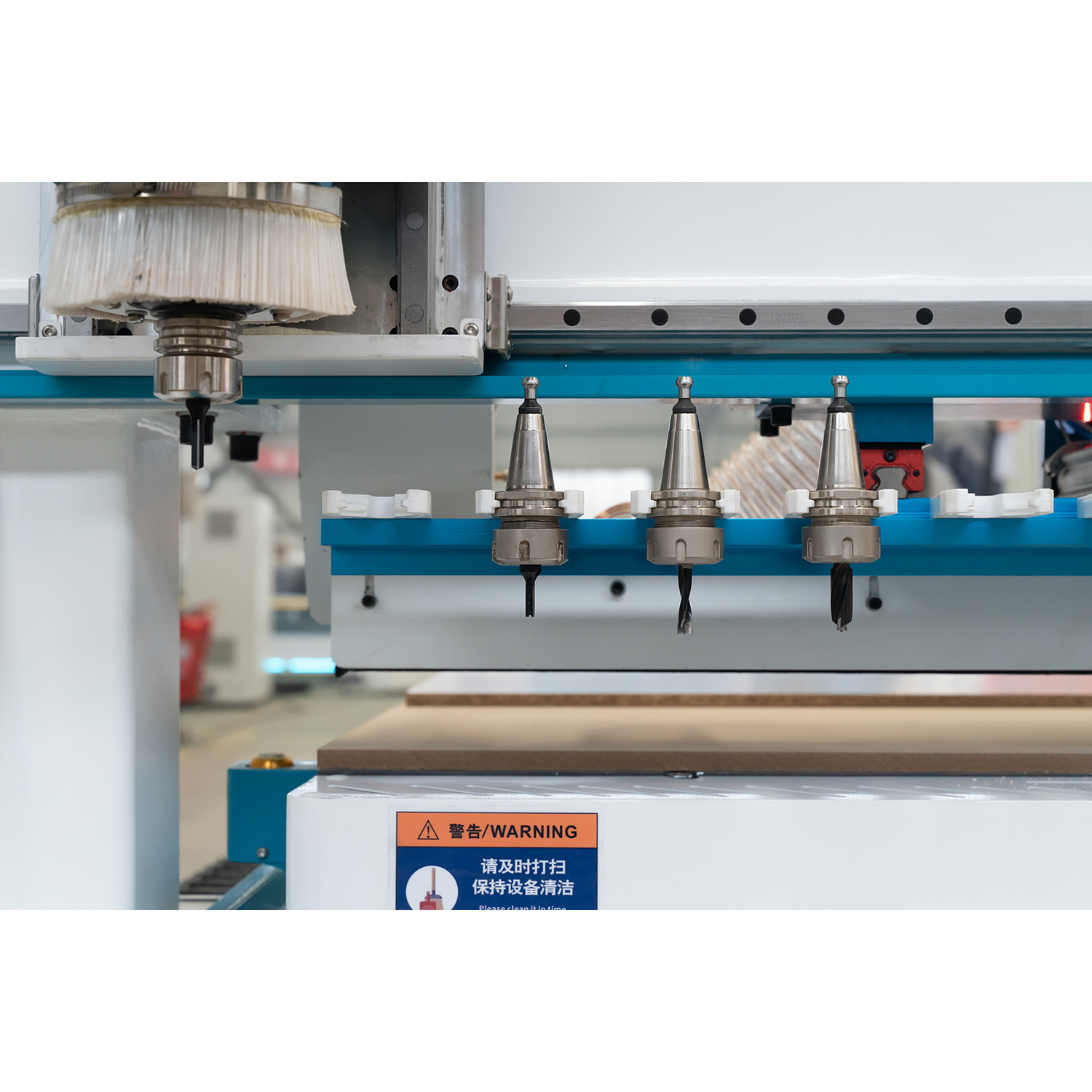

*Pneumatic ATC for 3 spindles with different tools.Automatic tool changing saves time to manually change tools.

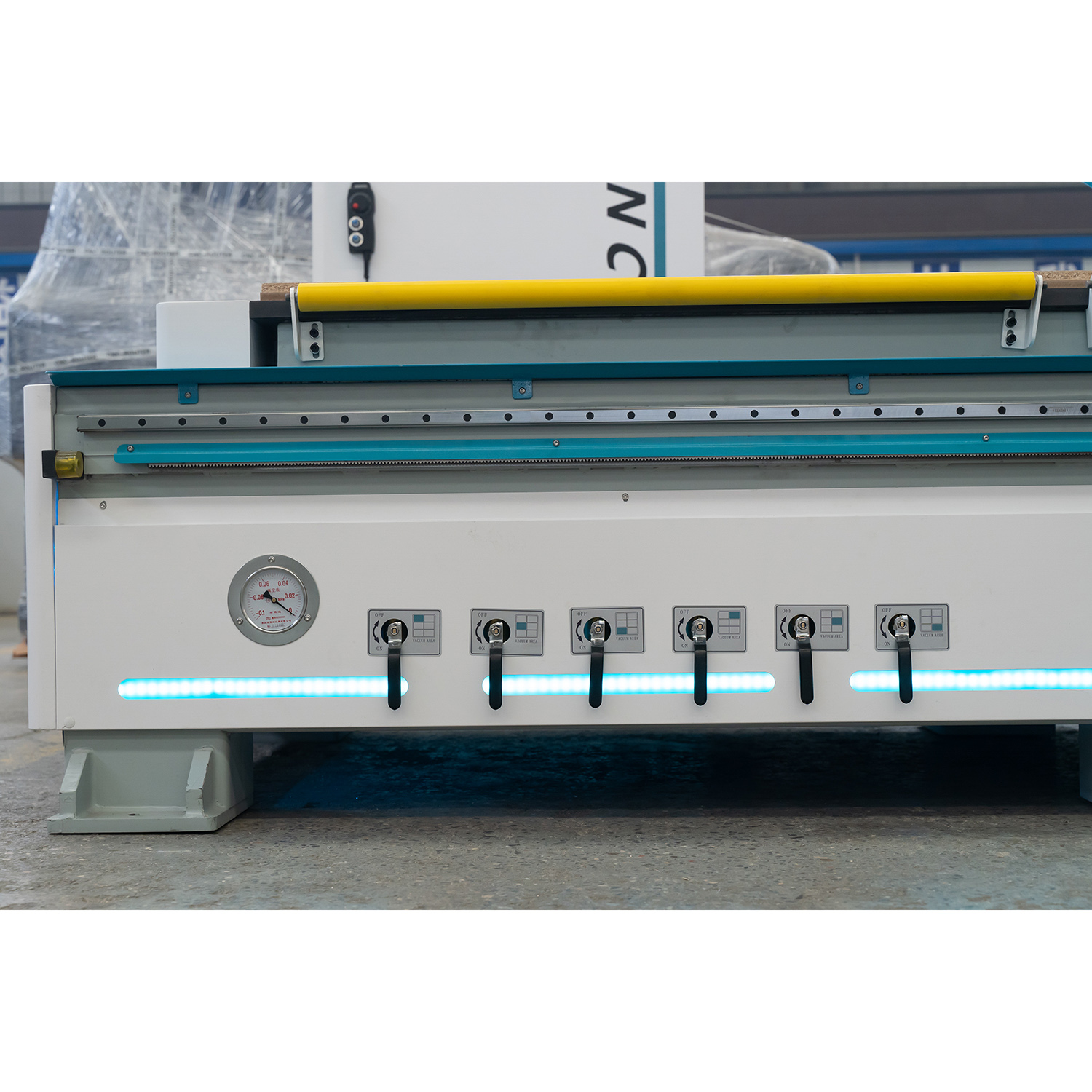

*Vacuum table with vacuum pump,can quickly and stably fix materials on the table for engraving,saving time and long service life.

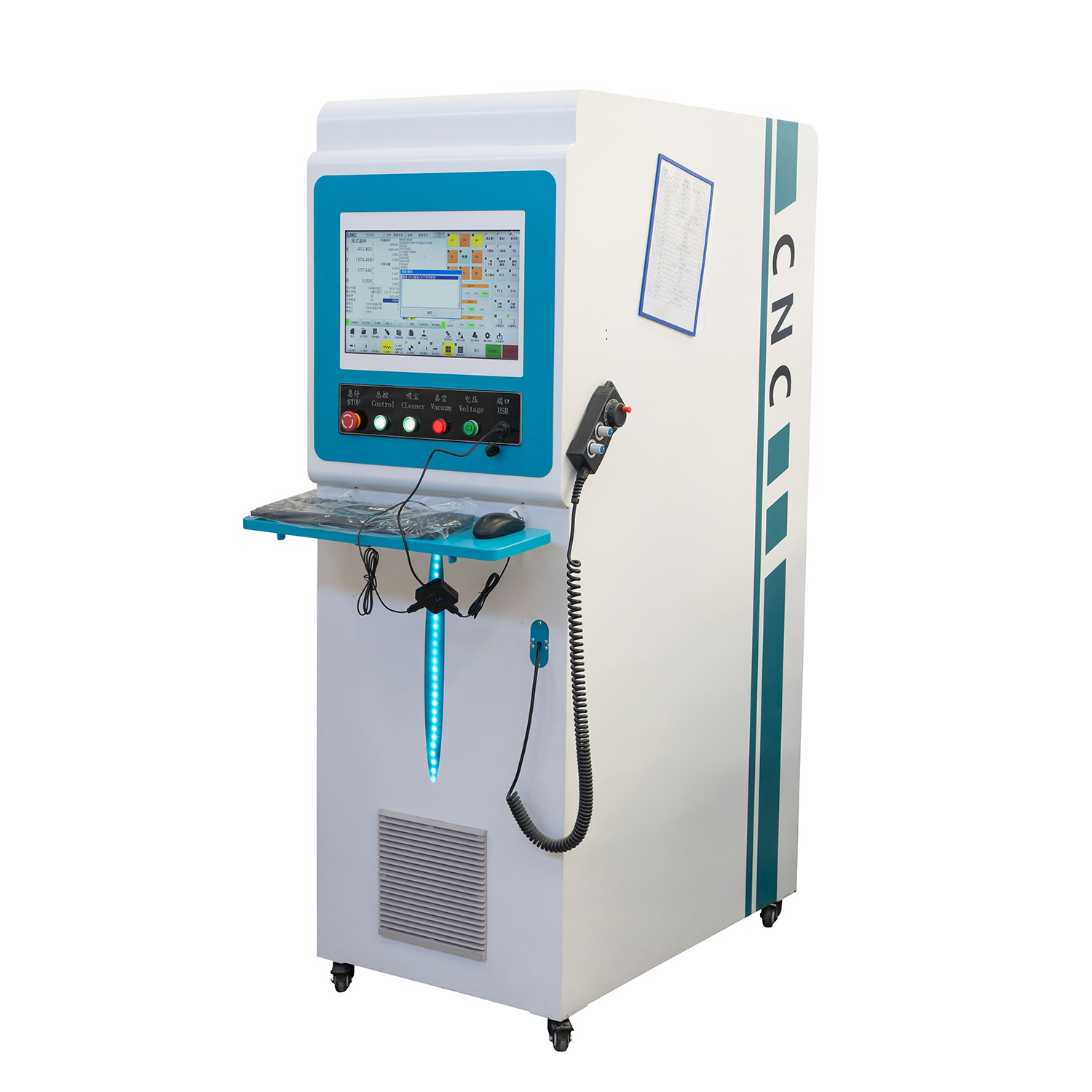

*Control system:We use the advanced Dsp, Nc-studio control system, Syntec from Taiwan or OSAI from Europ.

Technical parameters of ATC cnc router

Standard Configurations
Model & Name	APEX1325
Brand	APEXCNC
Working Area	2500*1300mm
Table	Vacuum and T-slot table
Control system	Taiwan LNC CNC control system
Spindle	9.0KW air cooling spindle
Auto tool changer	Carousel auto tool changer for 12 tools ( 6 tools, 8 tools, 10 tools for choose)
Body structure	Heavy steel welding structure (more than 10mm thickness)
Motor and drivers	Chinese Leadshien servo motor and drivers
Rail guide	Taiwan HIWIN square guide rails
INVERTER	Taiwan Delta INVERTER
X,Y axis transmission	Germany Herion helical rack and pinion
Z axis transmission	Taiwan TBI ball screw for Z axis
Electronic components	France Schneider electronic components
Limit switch	Japan Omron limit switch Limit switches at both ends of the X & Y axis
Vacuum pump	11KW water vacuum pump
Dust collector	Dust collector with double bag x 2
Coolant Attachment	Yes
Protective sheet	Yes
Tool setting gauge	Auto
Lubrication system	Auto
Technical Parameter
Working area	25001300300mm
X,Y,Z Traveling Positioning Accuracy	±0.01/2000mm
MAX. Traveling Speed	≥50000mm/min
MAX. Cutting Speed	≥25000mm/min
Commend Code	G Code
Working voltage	AC380V/3P/50Hz
Interface	USB
Rated power	At most 18KW·H
N.W./G.W.	2800KG/ 2900KG
Runing environment	Temperature:0ºC~45ºC Relative Humidity: 30%~75%

Application of ATC cnc router
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.
Samples of ATC cnc router

Packing and shiping
1.Outside package: Standard marine export plywood case.
2.Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
3.Improved package, much more strong and environmental protection.
4.We can also make package according to your requests.
Delivery Detail: Shipped in 10-15 working days after payment.
