Best-Selling Handheld Laser Cutter For Metal - 2021 New Sheet Metal Fiber Laser Cutting Machine for Carbon Stainless – Apex

Short Description:

Send email to us

Product Detail

Product Tags

Feedback (2)

We have now our possess revenue group, design staff, technical crew, QC team and package group. We now have strict excellent regulate procedures for each process. Also, all of our workers are experienced in printing subject for CNC Acrylic Working, China CNC Router 1325, Cutting Machine, We are trying to get for in depth cooperation with sincere shoppers, attaining a new result in of glory with customers and strategic partners.

Best-Selling Handheld Laser Cutter For Metal - 2021 New Sheet Metal Fiber Laser Cutting Machine for Carbon Stainless – Apex Detail:

Features of fiber laser cutting machine
1. Adopt industrial heavy duty steel structure, plate steel joint welding with square pipe steel, under heat treatment, will not
deform after long time using.
2. Adopt NC pentahedron machining, milling, boring, tapping and other machining processes to ensure high processing accuracy.
3. Configure with Japan THK linear rail for all axis, to ensure durable and high precision for long time processing.
4. XY axis configure with high accuracy grinding type gear rack, Japan Shimpo reducer, high speed and precision can be ensured, Z axis are transmitting by high accuracy rolling ball screw.
5. Adopt France Schneider AC servo system for all axis, larger power, close-cycle control, high precision positioning, stronger torque force, dynamic corresponding time is shorter, and the overload resistance ability is strong.
6. Adopt industrial optical fiber cutting system, easy to install, maintenance and cam module based on autocad kernel development, built-in process, ensure high-quality cutting effect.
7. Adopt professional WSX, Raytools laser cutting head, imported optical lens, focus spot smaller, cutting lines more precise, higher efficiency and better processing quality can be ensured.
8. Fiber laser transmitting, flexible processing, realized high accuracy cutting on ecery point.
9. Compatible with multiple software, can design ant graphic and letters as you like, operating simple, flexible and easy.

Model	3015/ 4020/6020/6015/2513
Working area	3000*1500mm
Miximum length of pipe(Options)	3000mm(or)6000mm
Limits of pipe(Customized)	Round tube:Φ20mm~Φ120mm; Square tube :Φ20mm~80mm; Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
Laser type	Fiber laser generator
Laser power(optional)	500~2000W
Transmission system	Double serve motor &gantry&rack&pinion
Maximum speed	±0.03mm/1000mm
Pipe cutting system(optional)	yes
Maximum speed	60m/min
Maximum accelerated speed	0.6G
Position accuracy	±0.15mm/1000mm
Reposition accuracy	±0.02mm/1000mm
Graphic format supported	CAD,DXF(etc)
Total power	10KW
Power supply	380V/50Hz/60Hz
Overall dimension(include cutting machine in 3 meters long)	4350mm×3200mm×1740mm
Overall dimension(include cutting machine in 6 meters long)	7650mm×3200mm×1740mm
Gross weight	6000kg

Application Industries of fiber laser cutting machine
FirberLaser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Application Materials of fiber laser cutting machine
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.

Samples of fiber laser cutting machine
Pipe steel plate cutting and cutting; pipe length 3000mm, pipe diameter maximum outer diameter 150mm, other specifications need to be determined

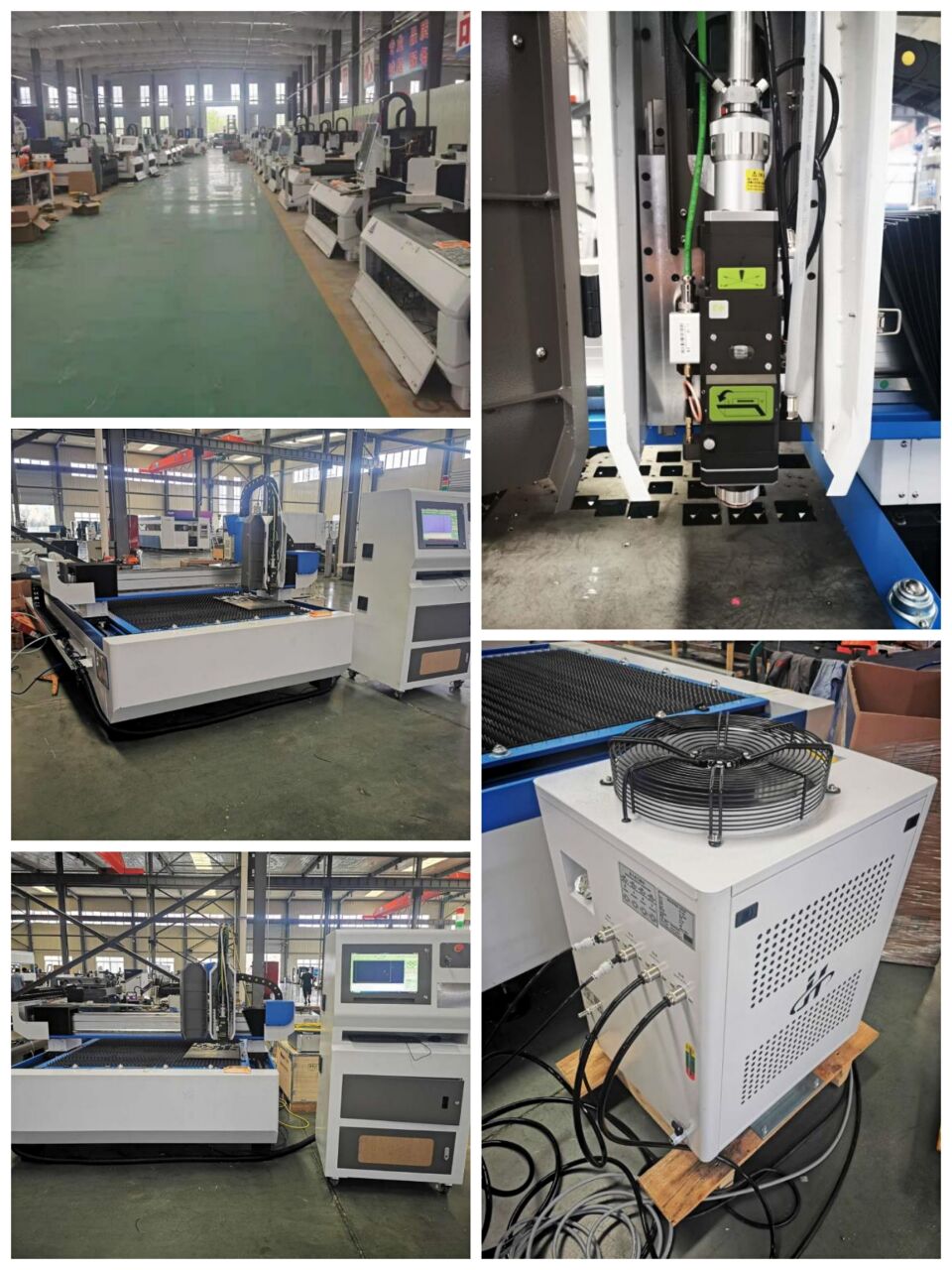

Product detail pictures:

Related Product Guide:

We take "customer-friendly, quality-oriented, integrative, innovative" as objectives. "Truth and honesty" is our administration ideal for Best-Selling Handheld Laser Cutter For Metal - 2021 New Sheet Metal Fiber Laser Cutting Machine for Carbon Stainless – Apex , The product will supply to all over the world, such as: Honduras, Netherlands, Slovakia, We believe in establishing healthy customer relationships and positive interaction for business. Close cooperation with our customers has helped us to create strong supply chains and reap benefits. Our products have gained us widespread acceptance and the satisfaction of our worldwide valued clients.

Brass Laser Cutting Machine
