China CNC Manufacture 1530 2kw Stainless Steel Carbon Steel Fiber Laser Cutting Machine

Short Description:

Fiber laser cutting machine adopting world famous Germany IPG fiber laser source and Raycus laser source,Raytools cutting head and dynamic focus system, it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber , it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing .

Send email to us

Product Detail

Product Tags

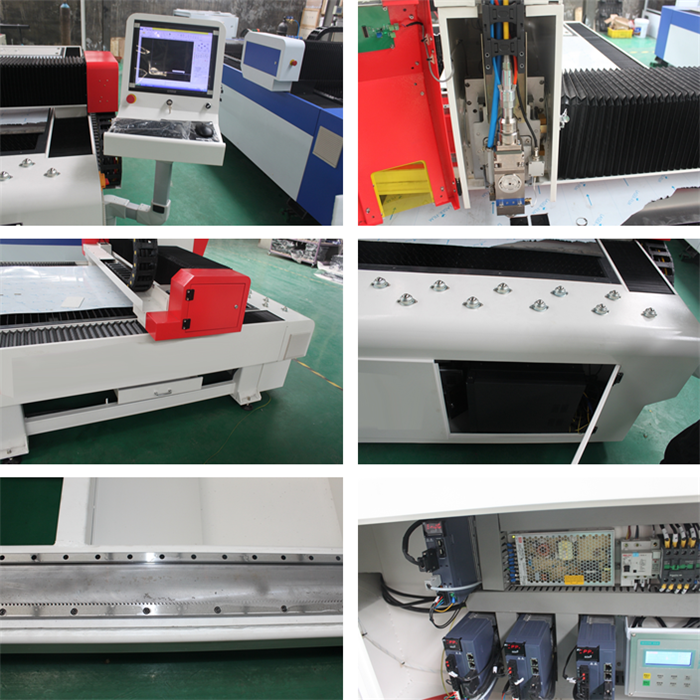

Features of fiber laser cutting machine

#Advance double driving system structure, Dual driving force from high precision driving method.
3Top standard gear, rack and guide rail, no need maintenance, high speed and efficiency.
#Components from world famous suppliers,
Panasonic,Yaskawa,YYC,Simens,Precite,etc.
#Environmental working medium, screen out radiation harm. Ensure green and safer working circumstance.
Quality assurance, long warranty. various warranty plan for you to choose.
#Professional and fast respond service mechanism, door to door after-sale service, free 24/7 online technical support and before-sale technical consultation.

Specifications of fiber laser cutting machine

Fiber Laser Cutting Machine Technical Parameters
Laser Type	Fiber laser
Laser Brand	IPG / Raycus
Laser Power	1000W / 2000W / 3000W
Working area	1500mmX3000mm / 2000mmX4000mm /
Working area	2000mmmX6000mm
Working Table	Fixed Working Table / Pallet Changer
Control System	PMAC full-closed loop servo control
Driving Mode	Double ball screw driving / Double gear rack driving
Idle/Processing Speed	120m/min / 60m/min
Positioning Accuracy	0.05mm
Protection System	Enclosure protection
Laser Head	Precitec / Raytools
Power Supply	AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz
Total Power	6KW~20KW
Floor Space	5.6mX3.2m (fixed table) / 6mX4.6m (shuttle working table)
Floor Space	/ 8.5mX4.2m (pallet changer)
Standard Collocation	Metal nesting software, dual-pressure gas route of 3 kind gas sources,
Standard Collocation	dynamic focus, remote controller, etc.
Auxiliary System
Cooling System	Dual temperature dual control water chiller
Cooling System	with purification system
Lubrication System	Automatic lubrication
Laser cooling system	Horizontal air conditioning
Auxiliary gas system	dual-pressure gas route of 3 kind gas sources
Laser cutting head	Dynamic focus
Circuit and protection system	Independent work station
Software System
Software	Shanghai Cypcut
Supported Format	PLT, DXF, BMP, AI, DST, DWG, etc.

Application Materials of fiber laser cutting machine

Industry:it’s design for metal sheet cutting and processing,such as plate processing,machinery manufacture and precision processing,etc.
Materials:stainless steel,carbon steel,aluminum,brass and pipes,etc.

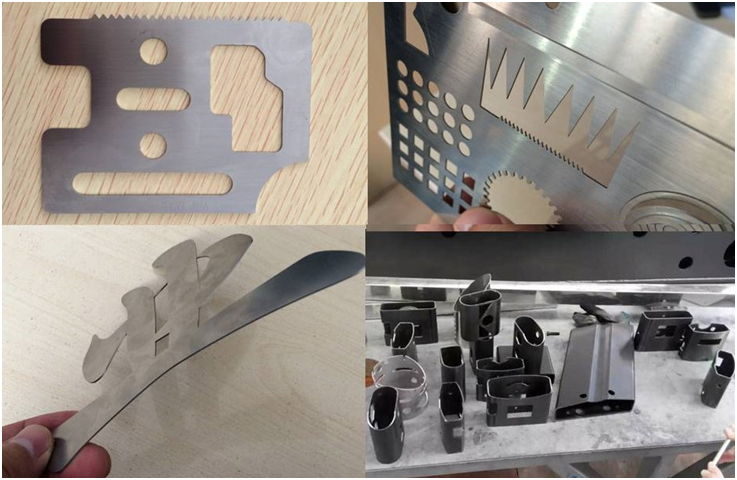

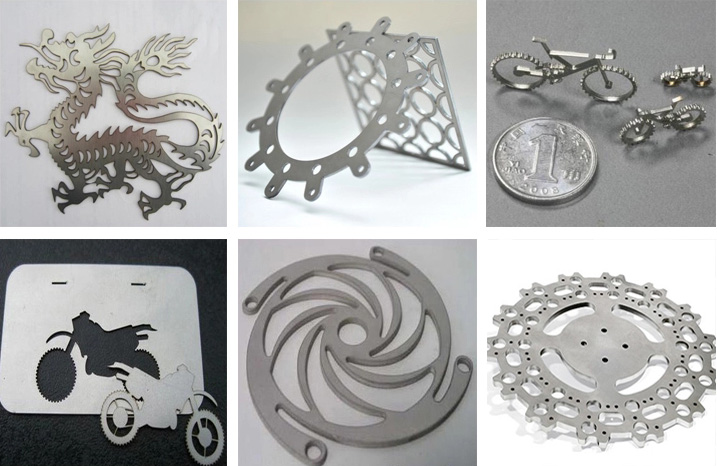

Samples of fiber laser cutting machine

Packaging and shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information.
