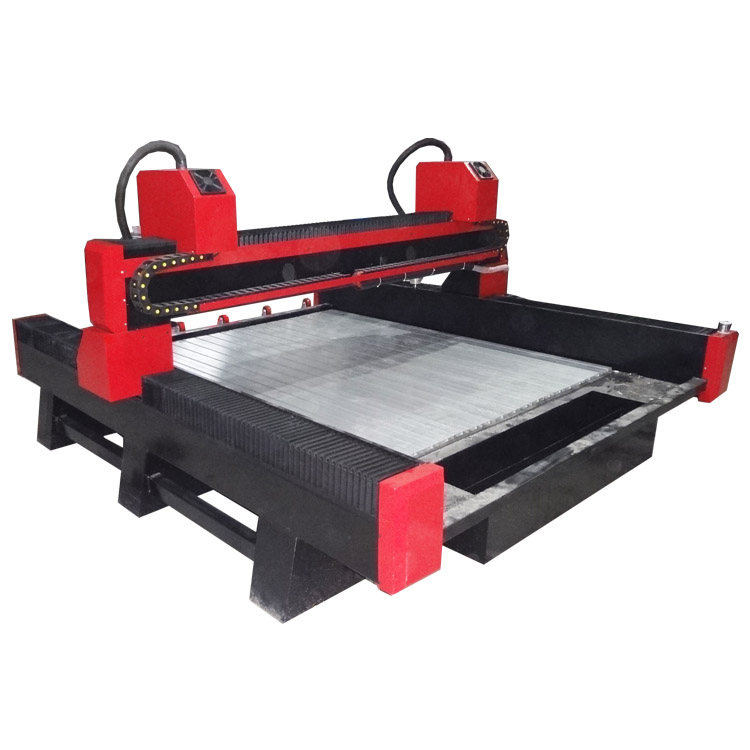

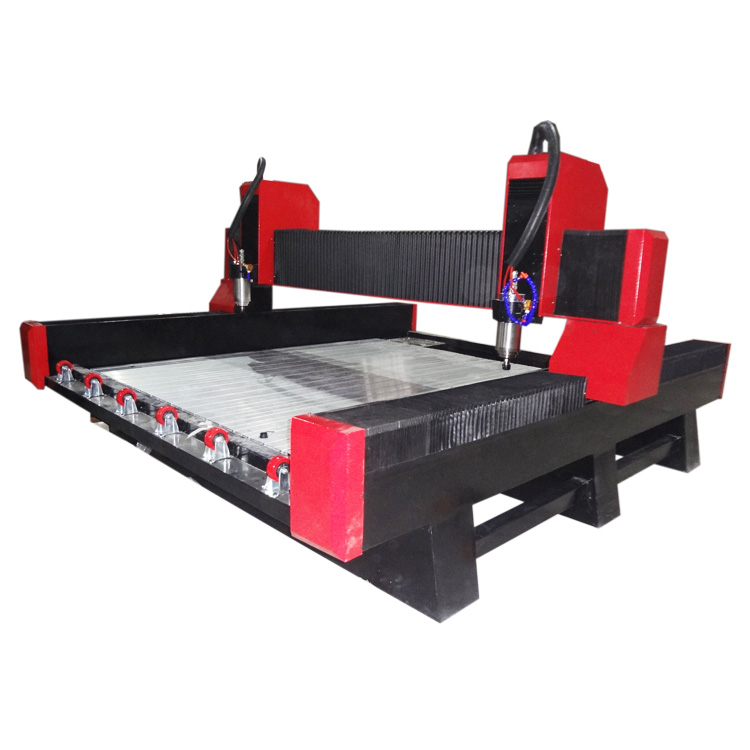

CNC Machining Center for Stone Cutting and Polishing OEM service available
Stone CNC machining center is suitable for cutting and polishing natural marble, granite, quartz, bluestone, tombstone, headstone, etc. Now the best stone CNC machine for sale with affordable price.
Product Descriptions
Features of Stone CNC machining center:
1. Vacuum adsorption table design, feeding is convenient and quick.
2. High-power spindle motor is more suitable for cutting.
3. The stone CNC machine is more stable, more durable, effectively reducing the equipment in high-speed operation, the spindle jitter, broken knife, dislocation and so on.
4. A unique filter tank, water circulation system, effectively extending the service life of the sink.
5. Automatic oiling system, maintenance and more convenient.
6. Three shaft all dustproof and waterproof design.
7. Top brand spindle to ensure that the stone CNC machine in the high-speed operation, the output torque capacity unchanged, the spindle wear, high temperature.
8. All institutions of the stone CNC machine are made of precision parts assembled.
Technical Parameters of Stone CNC Machining Center:
| Model | APEX2030 |
| Working Area | 2000*3000*500mm |
| Lathe Bed | Thick steel weld |
| Table | Steel board+Aluminum board |
| Guide Rail | 35mm Taiwan Square Rail |
| X/Y Axis Transmission | Imported Rack Gears |
| Z Axis Transmission | Imported Ball Screw |
| Spindle | BT40 ATC 5.5 kw spindle |
| Spindle speed | 0-8000rmp/min |
| Running speed | 0-8000rmp/min |
| Feeding speed | 1-10000mm/min |
| Fast feeding speed | X/Y: 15000mm/min Z: 6000mm/min |
| Working accuracy | 0.05mm |
| Reposition accuracy | 0.02mm |
| Maximum processing thickness | 350mm |
| Motor | Japanese servo motor |
| Drive | Servo driver |
| Reducer | Brand from Taiwan |
| Way of fixing Workpiece | Scuction Cup |
| vacuum pump | 5.5kw water-cooling |
| ATC | 8 sets Vertical-type ATC system |
| Position | Air Cylinder |
| Control system | APEXCNC control system |
| Engraving Command | G code, PLT, HPGL2D, 3D |
| Software compatability | Origin UCANCAM software |
| Switch and emergency stop | The best one in China |
| Working voltage | AC380V/3phase,50HZ |
| Weight | 4500KG |
Applications of Stone CNC Machining Center:
Quartz stone cabinet countertops processing, stone side modeling, arc retaining water grinding, basin pots, stone relief, hollow, line carving.
Granite, marble, bluestone, tombstone, headstone and other stone materials processing.
Projects of Stone CNC Machining Center:
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
