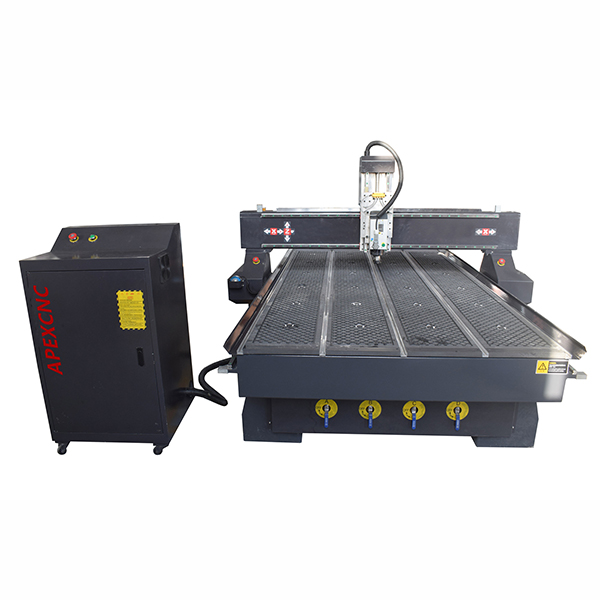

CNC Wood Router 3 Axis Wood Carving Cutting Machine
Features of the CNC Wood Router
6KW Air Cooling Spindle
Vacuum absorption table combined with T slots can save much time to fix the processing sheets
Thick steel tube seamless welding structure make sure high working speed without viberation, and will not bend after long time use.
Dust collector, keep the environment dirty and health
Leadshine brand stepper motors and drivers

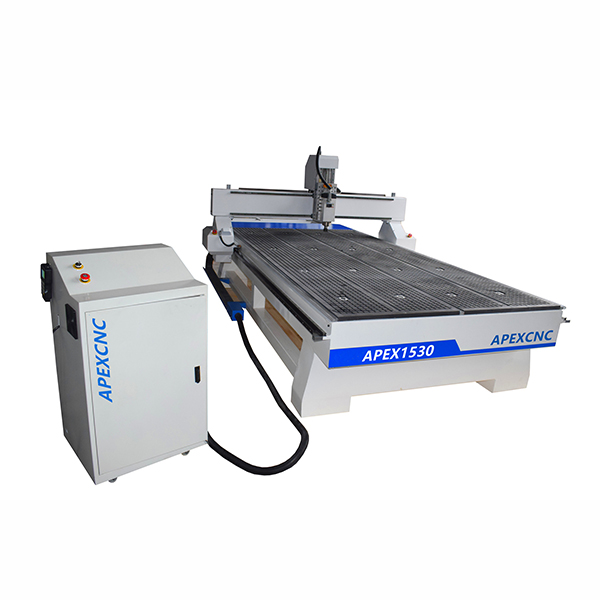

Parameters of the CNC Router APEX-1530W
| Technical Parameters | |
| Model & Name | APEX-1530W |
| Brand | APEXCNC |
| Working Area | 1500mm*3000mm*300mm |
| Spindle Power | 6KW |
| Spindle Speed | 18000RPM |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
| Max Travelling Speed | ≥40000mm/min |
| Max Working Speed | ≥20000mm/min |
| Commend Code | G Code |
| N.W/G.W | 1800/2000KG |
| Package Size | 3.7m*2.2m*2.15m |
| Diameter of Tools | 3.175, 4, 6, 8, 10, 12.7mm |
| Interface | USB |
| Running Environment | Temperature: 0-45ºC Relative Humidity: 30%-75% |
| Working Voltage | AC380V/220V |
Detailed Parts of the CNC Woodworking Machine
Taiwan TBI ball screw
High Soft Shielded Cable
Tool Sensor
Taiwan HIWIN Guide Rails 25
France Schneider Electronic Components
High Precision Helical Rack and Pinion
Customers Samples Photos
APPLICATIONS
Woodworking industry
Three-dimensional wave plate processing, cupboard doors, wooden doors, window processing, video game cabinets and panels, computer table and Plate furniture auxiliary processing.
Advertising industry
Advertising signs, logo production, acrylic cutting, forming system module, a variety of materials advertising the production of decorative products.
Die-board industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Other industries
A variety of large-scale relief sculpture, video carving, widely used in gift processing industry.
MATERIALS
Organic glass board, PVC,KY board, wood, stone plate,sheet metal, artificial synthetic board,acrylic etc plate type material processing
