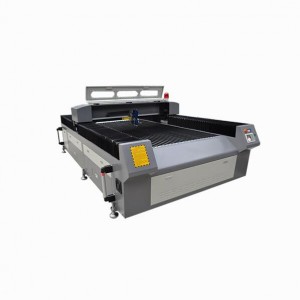

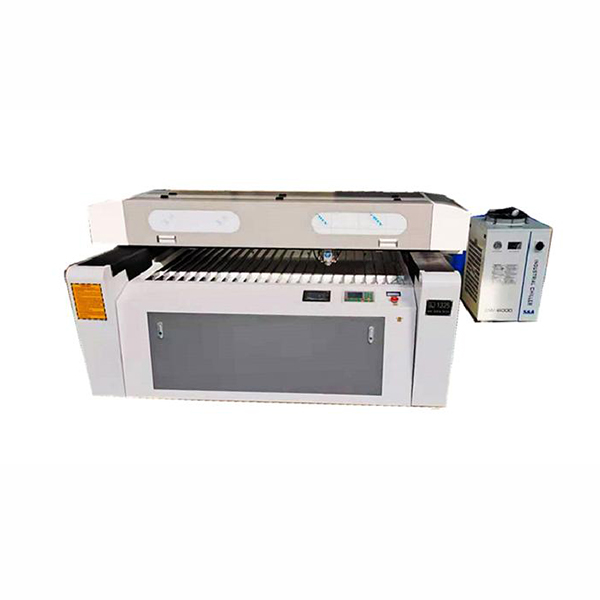

Co2 Hybrid Laser Cutting Machine Cut Metal Plastic Garments Paper Leather 1325 300W

Short Description:

APEX-1325JA
Co2 Hybrid Cutter, can process metal, wood, bamboo, jade, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials
Untouched following system and automatic live focus system make it easy to operate and save time
Famous brand parts of the machine, which ensure the device work stable and long life time

Send email to us

Product Detail

Product Tags

Main Parts of the Co2 Cutting Machine

Metal Laser Cutting head

SLW300W CO2 laser tube (lifetime up to 10000 hours)

Co2-Hybrid-laser-cutting-RD-control-pannel

RuiDa(RD) control panel, USB offline

Blade table

Parameters of the Co2 Fiber Laser Cutter

Machine Specification
Model & Name	APEX-1325JA
Brand	APEXCNC
Working Area (X,Y Axis Travelling)	1300mm x 2500mm
Laser Power	300W
Cutting Thickness	Steel: 2mm
Cutting Speed	Different material different speed
Resolution Ratio	0.05mm
Working Voltage	220V 1P 50HZ
Positioning Speed	20m/min
Gross Power	1.6kw
Operating Temperature	0-45ºC
Operating Humidity	5-80% (free of condensed water)
Graphic Format Supported	BMP, JGP, PNG, DXF, etc.
N.W/G.W	1100KG/1300KG

Customers Samples Photos

This Hybrid Co2 Laser cutter can cut both metal and non-metal materials.

APPLICATIONS
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping, packaging and paper industry.

MATERIALS
Wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other non-metal materials.
