Co2 Desktop Laser Marking Machine for sale

Short Description:

Fiber laser marking machine can be used for marking logo, serial number, bar code and other beautiful patterns on any metallic materials such as stainless steel,
titanium, brass, gold, silver, aluminum and lots of engineering plastic products such as mobile cover & charger, consume electronics housing and etc.
Our laser marking machine adopts the best quality fiber laser source in the world. We have 10w, 20w, 30w and 50w for optional.
The estimated life for laser source will be around 100,000hours, which is 10 times longer life than diode laser and 2 times longer life than other fiber laser source.

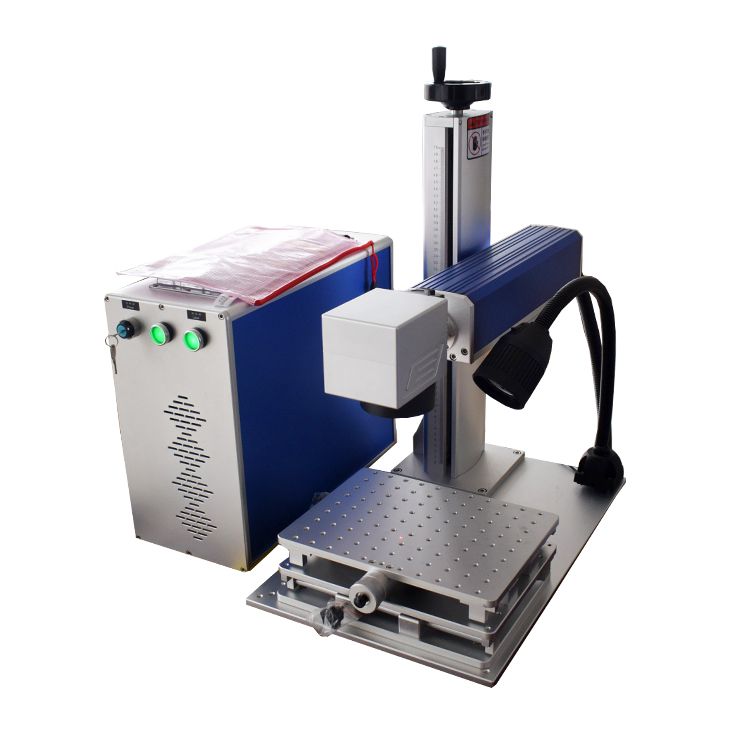

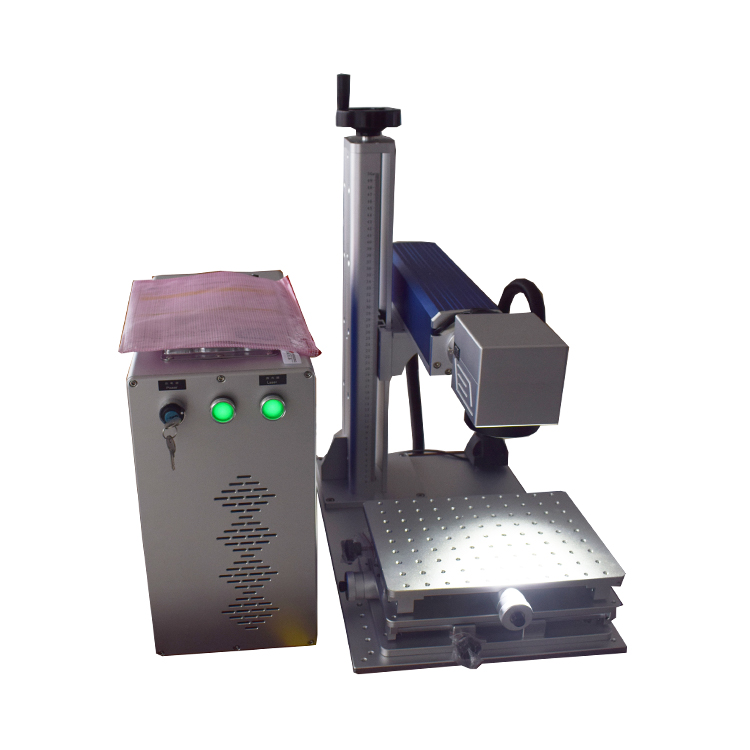

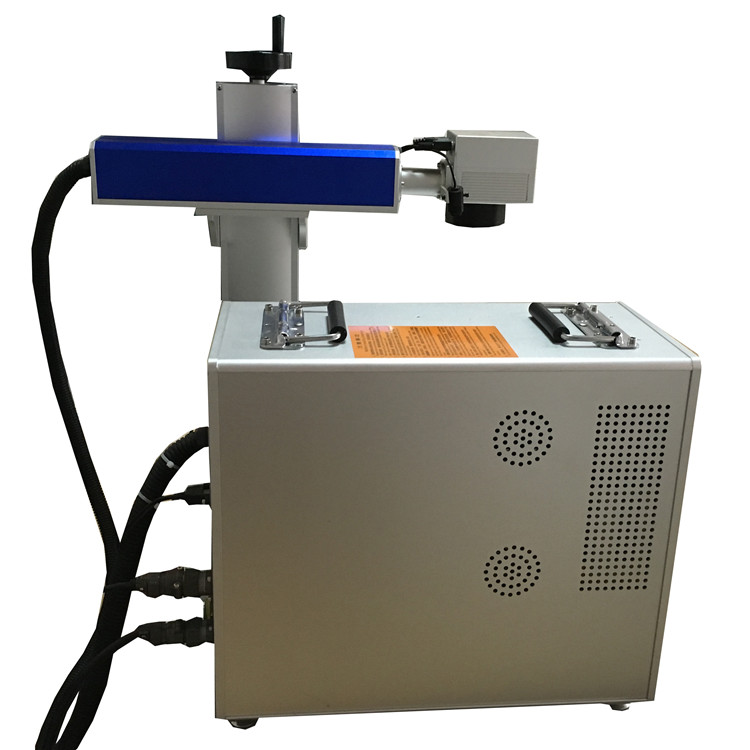

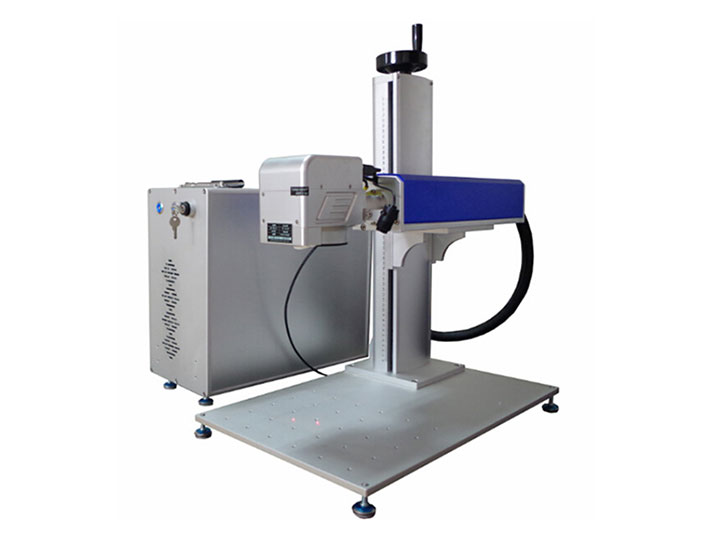

This Portable desktop Fiber metal Laser Marking Machine is very easy to use, small, light, moveable. It is your best choice.

Send email to us

Product Detail

video

Product Tags

Co2 laser marking machine with cyclops system is one new technology for laser marking machine. The image from the camera can be displayed on laser marking software in the computer.

Product Descriptions

Cyclops camera positioning laser marking machine
Intelligent mark positioning laser marking machine features:
1. Intelligent mark positioning laser marking machine is a low-cost, simple and effective tool which in conjunction with BJJCZ software, allows the user to have an accurate and detailed view of exactly what is makring on the table from the marking scan head.
2. The Cyclops camera is mounted on the marking head and looks at the whole area of the marking table below the head. The image from the camera can be displayed on software in the computer.
3. Cyclops system match the marking area and camera view area. Used Background show software and Calibration software.
4. The Cyclops camera position scan head and camera locate in same coordinate system after calibrate. Scan speed of cyclops is above 5000mm/s.
Laser marking machine with cyclops system advantages:
1. No need extra camera.
2. No need red light.
3. No need manul focal length setting
4. Draw where, mark where.
Technical parameters of laser marking machine with cyclops system:

Model	APEX-30FC-Mini
Output Power	30W
Laser Wavelength	1064nm
Fiber Cable Length	2m
Pulse Width	90-130ns
Repetition Frequency Range	30-60kHz
M2	<1.5
Max.Single Pulse Energy	1mJ
Output Power Stability	<3%
Output Beam Diameter	7
