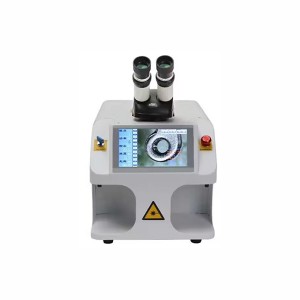

Desktop Jewelry Dot Welding Machine
Features Of The Jewelry Dot Welding Machine
- High aspect ratio, thin weld width, narrow heat affected zone, zero deformation, and fast welding speed.
- The weld is smooth and clean, with or without simple process after welding.
- High weld strength, no porosity, eliminates the impurities of the base metal, the microstructure can be refined after welding, the weld strength is at least equal to or even exceed the base metal strength.
- Tiny laser spot can be precisely positioned and easily automated.
- Fit for some dissimilar metal welding.
- Spot welding, butt welding, overlap sealing welding.
- Various metals such as gold, silver, platinum, stainless steel, titanium, and their alloys.
Parameters Of The Jewelry Dot Welding Machine
| Standard Parameters | |
| Laser Power Supply | 200W (boost version, strong and durable) |
| Cabinet | Protection grade industrial special cabinet |
| Microscope | 10X with crosshair |
| Laser Power Software | Compatible with the power supply, versatile and easy to operate |
| Chiller | Built-in air cooling |
| Crystal | Yellow stick |
| Overall Size | 920*550*610mm |
| Net Weight | 90 KG |
| Gross Weight | 105 KG |
| Technical Parameter | |
| Input Power | AC 220V/50/60Hz ＜3KW |
| Output Power | 200 W |
| Current Regulation | 5--200 A |
| PWM | 0.1--20 MS |
| Frequency Adjustment | 0-35 HZ |
| Maximum Single Pulse Energy | 80 J |
| Spot Diameter | 0.1--3 mm |
| Continuous Working Time | 16h ≥ |
| Laser Wavelength | 1064nm |
| Laser Divergence Angle | ≤ 5 rad |
| Laser Instability | ≤± 2% |
| Welding Focal Length | F=110 mm |
Customers Applications
APPLICATIONS
This laser spot welder is mainly used for repairing holes of gold and silver jewelry, seams and claw parts.
MATERIALS
It can be applied to a variety of metals and alloys such as, gold, silver, platinum, stainless steel, titanium, etc.
