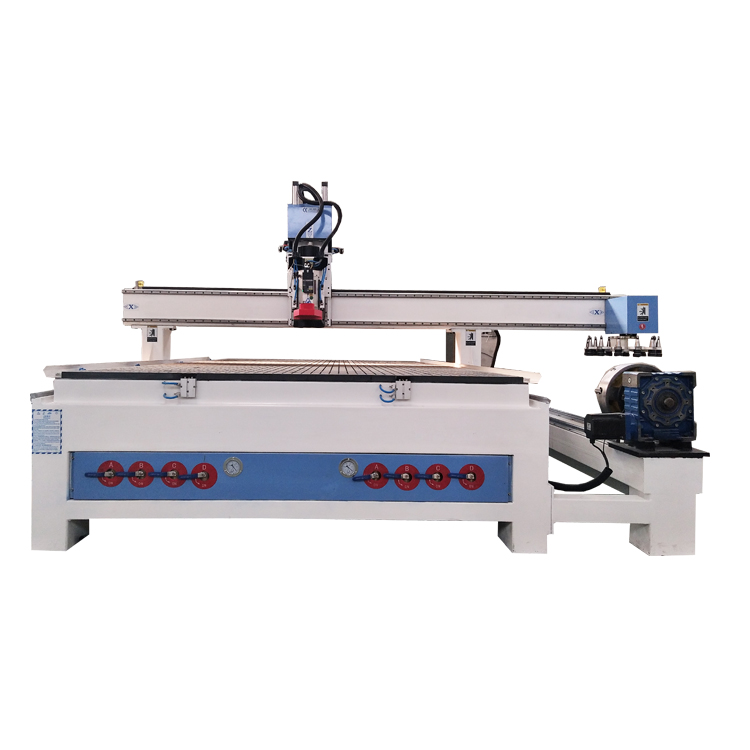

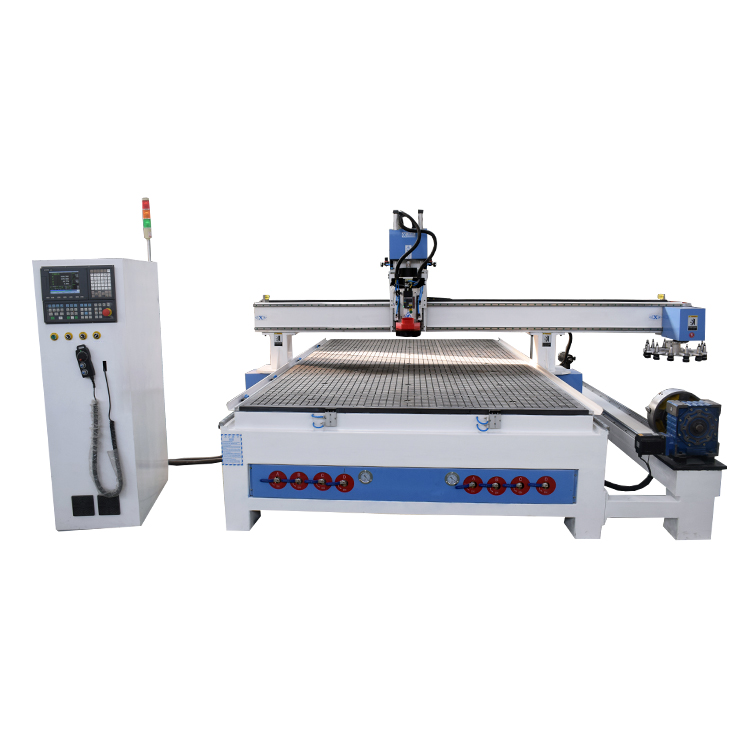

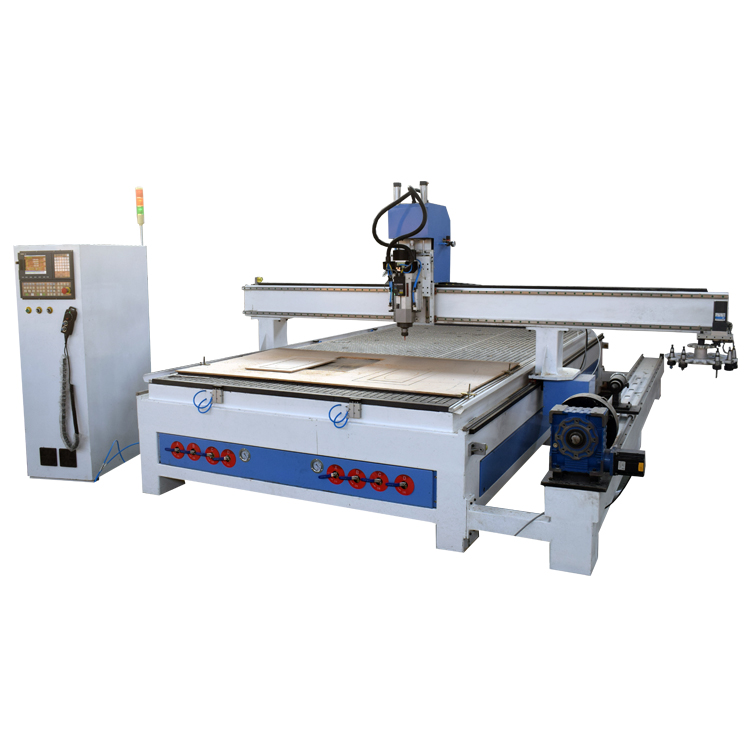

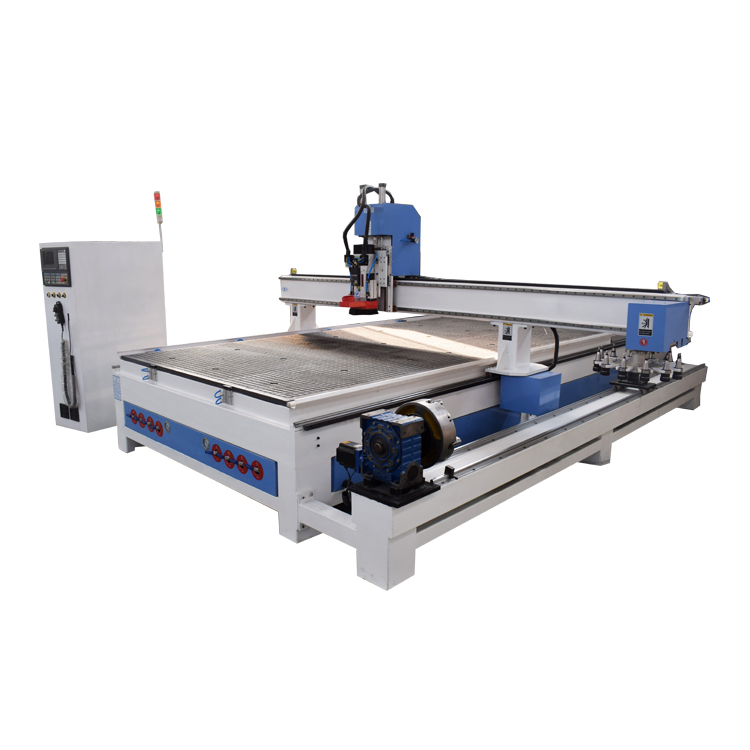

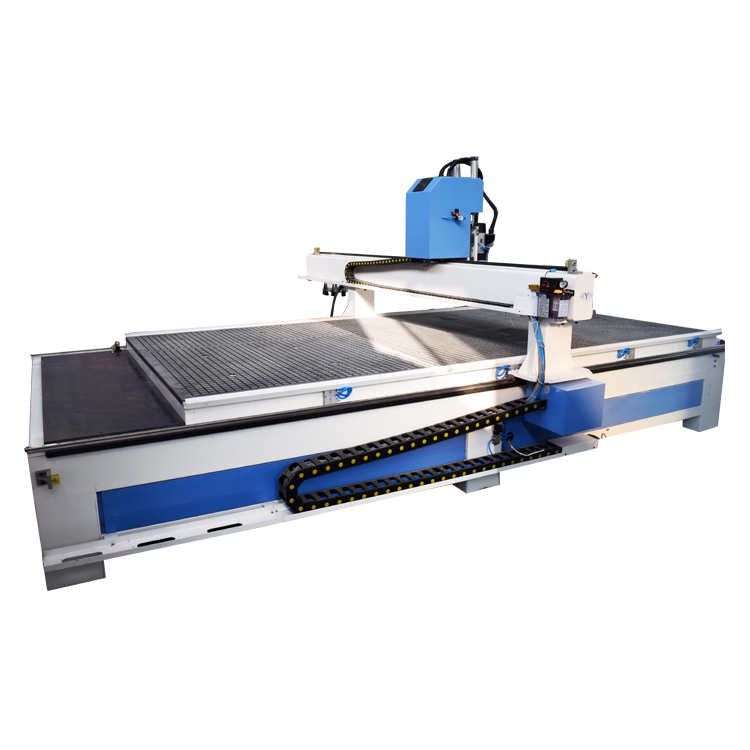

Factory directly supply 4 Axis Automatic Tool Changer CNC Router Wood 1325 for Kitchen Furniture Cutting
Features:
1. Adopt China best brand CS air cooling 9KW ATC spindle, high accuracy, big cutting power, long life span.
2. Imported servo motor and driver, ensure working stability, high speed and low noise.
3. Intelligent linear ATC System, change tools fast and easily.
4. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
5. Use special extra heavy size square tubes for holding rails and racks, use precise planer milling machine to ensure parallelism and squareness.
6. The key component parts all adopts casting tempering finish machining technology, ensures stiffness and accuracy.
7. The professional mechanical design, scientific structure and generous appearance.
8. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
9. High quality driver motors, spindle motors, cables, inverters, etc.
10. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Patameter:
| Model | FM1325L-ATC |
| Table Size | 1300× 2500mm |
| Working Size | 1300× 2500× 300mm |
| Spindle Power | 9KW CS ATC Spindle |
| ATC Tools | 4 –10 PCS TOOLS |
| Spindle Rotate | 6000~18000rpm |
| Motor Driver | Imported Delta Servo Motor and Driver |
| Tool Diameter | Φ 3.175, Φ 4, Φ 6, Φ 12.7mm |
| MachineStructure | Industry Square Tube Structure |
| Transmission | XY High Accuracy Gear Rack, Z ball Screw |
| XYZ Rails | Imported Square Rails |
| Dust-proof System | XYZ High Quality Dust Cover |
| Mechanical Accuracy | < 0.03/300mm |
| Engraving Speed | 18000mm/Minute |
| Table | Vacuum & T-slot combined Table |
| Vacuum Pump | water cooling pump |
| Data Transmission | PC Connect or USB |
| Support Format | G code |
| Working Voltage | AC220V/60HZ OR 380V/50HZ |
| Weight | 2000kg |

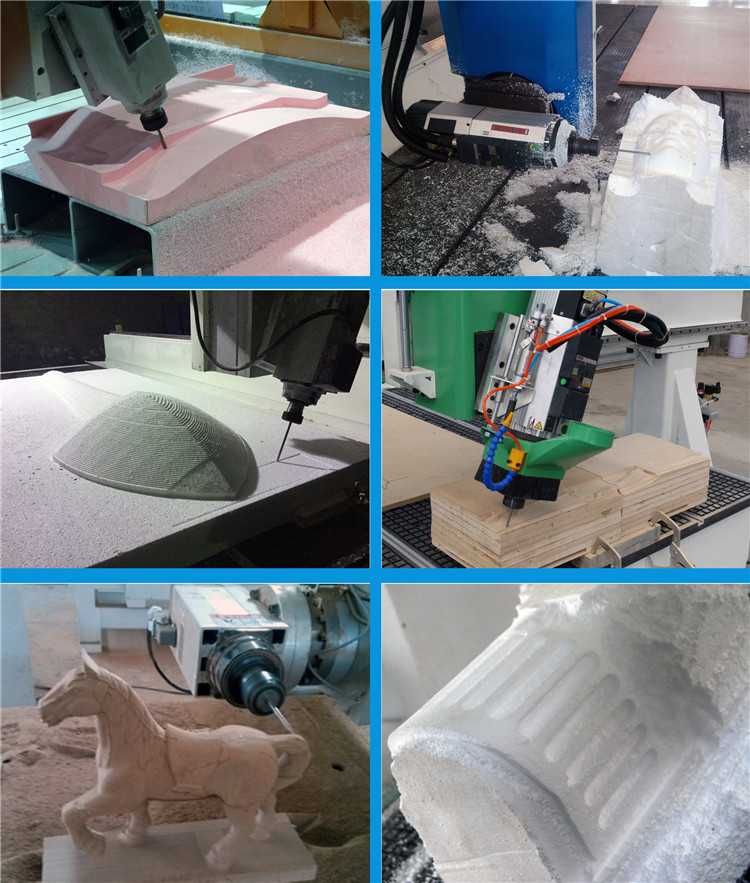

Applications:
1. Woodworking industry: Engraving machine can be used for carving wood carving, wood jewelry boxes, decorative products and jewelry carved and so on.
2. Advertising industry: Engraving machine can be used for carving a variety of signs, logos, badges, panels, craft and decorating, home decoration.
3. Other industries: Also can be used for portraits, landscapes, calligraphy, seals and other graphic art and sculpture reliefs and other production.
