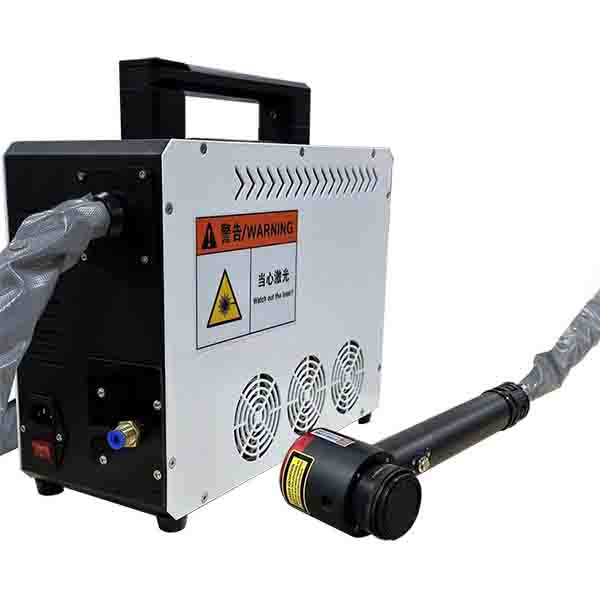

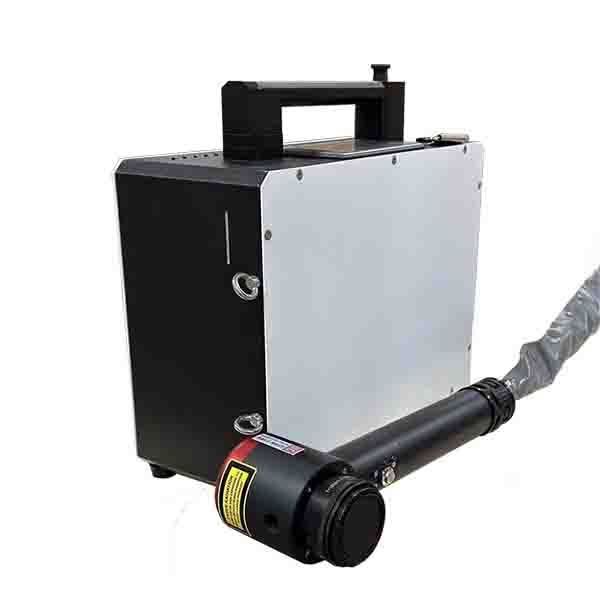

Handheld Rust Removal Laser Cleaning Tool Smart Pulse Laser Cleaner

Short Description:

APEX-HC
Non-contact cleaning without damaging the matrix of the parts
Accurate cleaning, which can achieve precise position, accurate size selective cleaning
Do not need any chemical cleaning liquid, no consumables, safety and environmental protection
Easy to operate, ergonomics design
High cleaning efficiency, which can largely save time cost
Stable cleaning system with little maintenance.

Send email to us

Product Detail

Product Tags

Features of the Fiber Laser Cleaning Machine

It is a new generation of high-tech products for surface treatment, which is easy to install, operate and realize automation. The operation is simple, turn on the power, turn on the device, and you can clean without chemical reagents, medium, dust, and water. It can be cleaned on a curved surface, and the cleaning surface has a high degree of cleanliness.

Advantages

Self-developed bottom layer control system and application software for laser cleaning.
Perfectly adapt to most of the laser cleaning light sources on the market.
The special software interface is clear, concise and easy to operate.
Built-in database system, which can save and edit 50 sets of process data.
Free adjustment of laser parameters such as laser power and laser repetition frequency.
With online pulse width adjustment function (if supported by the laser), the process parameters can be.
Optimized according to the specific conditions on site.
Optimizing the control of the galvanometer and controlling the sine wave signal can effectively reduce the calorific value of the galvanometer and improve the service life of the galvanometer.
The dual-axis version provides 7 cleaning modes: straight line, rectangle, circle, sine wave, double helix, free mode, and ring to meet the needs of various application scenarios.
Adjustable scanning speed, up to 30m/s

Parameters of the Fiber Laser Cleaning Machine

Optical Parameters
Model	APEX-HC
Average Laser Power	≥100W
Power Instability	<5%
Laser Working Mode	Pulse
Pulse Width	150-190ns
Maximum Mono Pulse Energy	1.7mJ
Power Regulation Range (%)	0-100 (Gradient adjustable)
Repeat Frequency (kHz)	20-200 (Gradient adjustable)
Fiber Length	1.5m
Cooling Mode	Air cooling
Cleaning Head Parameters
Scan Range (length * width)	0 mm~100 mm, continuously adjustable Biaxial supporting 8 scanning modes
Scanning Frequency	10 Hz~300 Hz continuous adjustable
Field Mirror Focal Length (mm)	160mm (optional 210mm/254mm/330mm/420mm)
Depth of Focus	About 5 mm
Operating Environment
Supply Voltage	Optional single battery, 100W continuous work 80-90min Standard AC220V±10%, 50/60Hz power adapter (output DC48V)
Power Consumption	≤300W
Working Environment Temperature	5ºC~40ºC
Working Environment Humidity	≤80%
