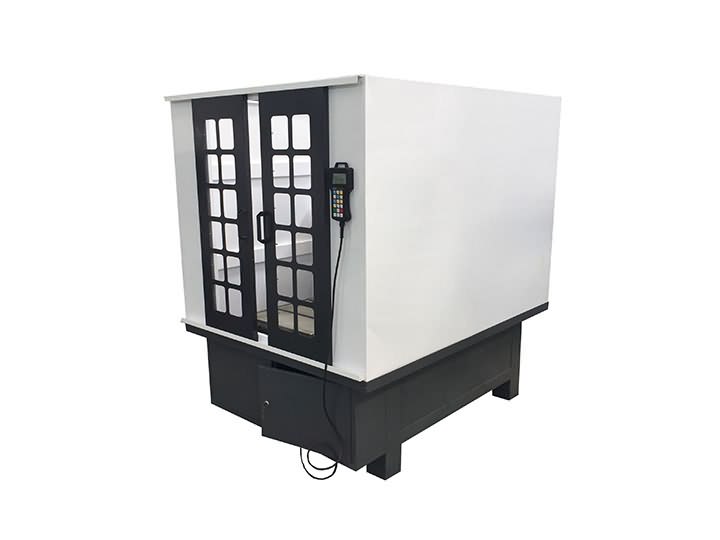

Mould cnc router CNC Milling Machine for Sale at Cheap Price

Short Description:

# Iron cast wholly frame, double-screw auto eliminating clearance ball screw, floor-type linear guide transmission.
# High power water cooling brushless motor, more forceful cutting capability, wear well;
# Well designed dust and waterproof device ensure the machine easy maintenance;
# Advanced in CNC industry, break-point memory points for 10 pcs, reducing material waste;
# High compatibility, applicable for CNC software: type3, Artcam, Castmate, Pore, Weitai, variable CAD/CAM, etc.

Send email to us

Product Detail

video

Product Tags

Cheap CNC milling machine for home use is designed for home shop and home business for iron, copper, aluminum, stainless steel, mould steel, MDF sheets, PMMA, PVC Sheet, ABS sheet, KT sheet, timber, gemstone, marble. Now the affordable home CNC mill machine for sale at cheap price.

Product Descriptions

Applications of Cheap CNC milling machine for Home Use:

1. The home CNC milling machine is suitable for engraving, milling and drilling compactly all sorts of materials such as steel, copper, aluminum and plastics.
2. The home CNC milling machine is widely used in automotive, injection mould, ironware mould and other mould industries.
3. The homemade CNC milling machine is especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics and words of three-dimensional and outside surface’s sleeking of large size molds.
4. The homemade CNC milling machine is used for iron, copper, aluminum, stainless steel, mould steel, MDF sheets, PMMA, PVC Sheet, ABS sheet, KT board, timber, gemstone, marble, aluminum and plastic composite panel, etc.

Technical Parameters of Cheap CNC Milling Machine for Home Use:

Ravelling size	X working area	400mm / 600mm
	Y working area	400mm / 600mm
	Z working area	200mm
Accurancy	Working Accurancy	±0.01mm
Accurancy	Repositioning Resolution	±0.01 mm
Table	Surface	stainless steel T-slot table
Guide rail		Taiwan HIWIN square guide rail 25
Transmission	X/Y/Z Axis	Taiwan TBI ball screw
Structure	Lathe Structure	Integral cast iron
Speed	Rapid Travel Rate	15000mm/min
Speed	Working Speed	10000mm/min
Spindle	Spindle Power	2.2KW/3KW
	Spindle Speed	0-24000rpm
	Inverter	Fuling inverter
Working	Drive motor	Stepper motor /JAPAN YASKAWA Servo motor
Working	Command Language	G code(optional:HPGL)
Others	Working Voltage	AC220/50HZ
	Operating System	Original NC studio
	Compatible Software	Type3(optional:Artcam,Ucan)
Weight	Gross weight	1800kg
Weight	Net weight	1500kg
Package	1. Protective film package and fumigation-free plywood case.
Package	2. OEM and package can according to customer requirements.

Main configuration of cnc milling machine
Machine body
The whole body is cast iron steel ,It is whole structure , The gantry is fixed on worktable,so it has the advantage of high density and strength, which will enable the machine work in lifespan and keep the parallelism between router and gantry.
Movable worktable
The machine is whole structure which is made from cast iron , So its gantry can not move like normal cnc router , It is table move mode , It can keep the working more precision ,Also It has high strength and rigid frame
X,Y,Z Transmission
X,Y Z axis of metal mould cnc router are equipped with TBI ball screw transmission to keep stable processing . Provide Positive Drive without slip, with high speed, high torque & high power.
3.0kw constant Spindle
China changsheng constant 3.0kw water-cooling spindle, Long service life, stable operation. water cooling spindle made in china can be optional.
Delta Inverter
It has adjustable V/F curve and simple vector control, 16 big microprocessor controlled PWM output, automatic torque boost& slip compensation.low noise, highly ensure the spindle working ability.
Servo motor driver
We have China Leadshine stepper driving system/ Japanese Panasonic/Yaskawa AC servo driving system for you to choose.
Control System
Multech control system, It is easy to operate
