Short Description:

Brief Introduction of 4 axis cnc router
♦ The spindle can rotated 180 degree, specially designed for curve surface cabinet,doors and indoor decoration. and also for some mold prcessing.
♦ It can be used for mass-processing with Vacuum holding way and dust collector.
♦ Equipped with top quality components for the machine, such as HSD ATC spindle, and the spindle Yaskawa servo motor & Taiwan Delta Inverter, Becker Vacuum pump,
Hiwin linear square guide rails, SYNTEC control system and so on, to keep the machine in the best condition even after working for many years.
* Equipped with 400mm rotary axis


Product Detail

video

Product Tags

Gaining purchaser gratification is our company’s aim eternally. We’re going to make great initiatives to create new and top-quality products, satisfy your exclusive prerequisites and supply you with pre-sale, on-sale and after-sale solutions for Hot sale China Wood CNC Router Machine 1325/1530/2030/2040 Cncmachinery for Cutting MDF PVC Plywood, Trust us and you’ll gain a lot more. Make sure you experience absolutely free to make contact with us for more details, we assure you of our greatest interest at all times.
Gaining purchaser gratification is our company’s aim eternally. We’re going to make great initiatives to create new and top-quality products, satisfy your exclusive prerequisites and supply you with pre-sale, on-sale and after-sale solutions for China CNC Router, CNC Router Machine, Our items are sold to the Middle East, Southeast Asia, Africa, Europe, America and other regions, and are favorably appraised by clients. To benefit from our strong OEM/ODM capabilities and considerate services, you should contact us today. We are going to sincerely create and share success with all clients.

3 axis CNC machining center with ATC system for woodworking adopts double disc tool holder including 16pcs different tools, the CNC machining center for woodworking is especially used for wood furniture production.

Product Descriptions

CNC Machining Center
Features of 3 Axis CNC machining center with ATC system for woodworking:
1. The whole machine uses high quality seamless welded steel structure, the assembly contact surface is used scraping process, the whole structure high-temperature aging treatment, upright and support plate, using aluminum cast process that ensures the high stability.
2. Driving rail adopts original Taiwan Hiwin 30mm square lead rail.
3. Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission.
4. The CNC machining center adopts Italian high-speed HSD 9KW air-cooled spindle motor, spindle cooling fully guaranteed, it can work long time.
5. The CNC machining center adopts imported Japanese Yaskawa Servo drive system, torque, high precision, fast and stable performance.
6. The CNC machining center adopts Taiwan Syntec controlling system, good compatibility, compatible with type3 /Artcam /Castmate /Artcut /CAD/CAM and other design softwares.
7. It can control the completion of multi-dimensional 3D processing, and can do fast, smooth three-dimensional processing, carving and cutting.
8. The CNC machining center table is vacuum adsorption countertops which is an international leader technic, made of high strength rigid plastic, high-absorption edge and strong adsorption of different sizes of materials, density, non-deformation.
9. Auto-oiling lubrication system, easy to operate, greatly improve the life of the various components of the machine.

Details of 3 Axis CNC machining center with ATC system for woodworking:

ATC CNC Machining Center
CNC Machining Center for woodworking
ATC CNC Machining Center for woodworking
Automatic Tool Changer

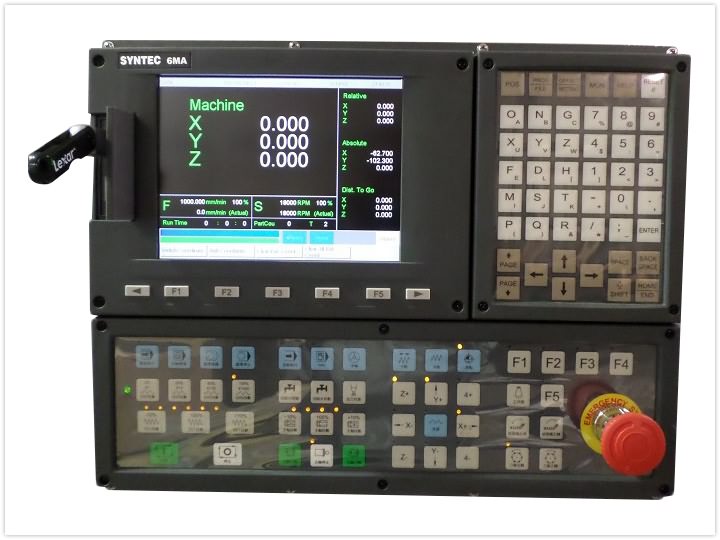

Syntec CNC Controller

Applications of 3 Axis CNC machining center with ATC system for woodworking:

3 axis CNC machining center with ATC system is widely applied in industrial board cutting, mould manufacturing & processing, wooden products processing, building decorating & furnishing, stone, glass, copper, aluminum and advertising products processing, etc.

Woodworking Industry:
Ideally suitable for furniture decoration, musical instruments, wooden crafts, solid wood furniture, MDF paint-free door, wood composite door, cabinet, kitchen doors, windows, night table, etc.

Decoration industry:
Art model, Wall Art, screen relief engraving and cutting, decoration processing, gifts wrapping, waved plate, electrical cabinets panels, sports equipment, and other wooden industrial products.

Technical parameters of 3 Axis CNC machining center with ATC system for woodworking:

Model APEX1325
Working Area 1300*2500*300mm
Resolution 0.01mm
Lathe Structure Seamless welded steel structure, better than cast iron one
X,Y Structure Rack and pinion, gear drive,Taiwan Hiwin H30square guide rails
Z Structure Z axis Taiwan TBIball screw,Taiwan Hiwin H30square guide rails
Max. Idling Speed 60m/min
Spindle HSD 9.0kw air-cooling spindle
Spindle Speed 0-24000r/min, variable speed
Working Voltage AC380V/50Hz
Motor and driver Yaskawa 850W from Japan
Working Mode Servo
Command G code (HPGL,U00,mmg,plt)
Operating System SYNTECcontrol system
Diameter of Cutter
