Hot sale Factory China Professional Atc Wood Aluminum CNC Router with Ce Certificate

Short Description:

ATC cnc router with circular auto tool changer 12 tools, can choose 10 tools, 8 tools, 6 tools etc.
Well-known 9.0KW HSD ATC spindle, strong cutting ability, low noise, long working time. Other configuration including Taiwan LNC control system, Japan yaskawa servo motor, Taiwan Detal inverter, HIWIN guide rail, Helical rack etc.
Ideal for panel furniture, solid wood furniture, office furniture, wooden door productions, as well as other non-metal and soft metal applications.


Product Detail

video

Product Tags

The business keeps to the operation concept “scientific management, premium quality and efficiency primacy, customer supreme for Hot sale Factory China Professional Atc Wood Aluminum CNC Router with Ce Certificate, We will supply high-quality solutions and fantastic companies at aggressive charges. Start benefiting from our comprehensive providers by contacting us today.
The business keeps to the operation concept “scientific management, premium quality and efficiency primacy, customer supreme for Atc Aluminum CNC Router, China Atc Wood CNC Router, Aiming to grow to be by far the most expert supplier within this sector in Uganda, we keep researching on the creating procedure and raising the high quality of our principal goods. Till now, the merchandise list has been updated on a regular basis and attracted customers from around the globe. Thorough data can be obtained in our web page and you’ll be served with good quality consultant service by our after-sale team. They’re intending to let you to get complete acknowledge about our objects and make a satisfied negotiation. Small business check out to our factory in Uganda can also be welcome at any time. Hope to obtain your inquiries to get a happy co-operation.

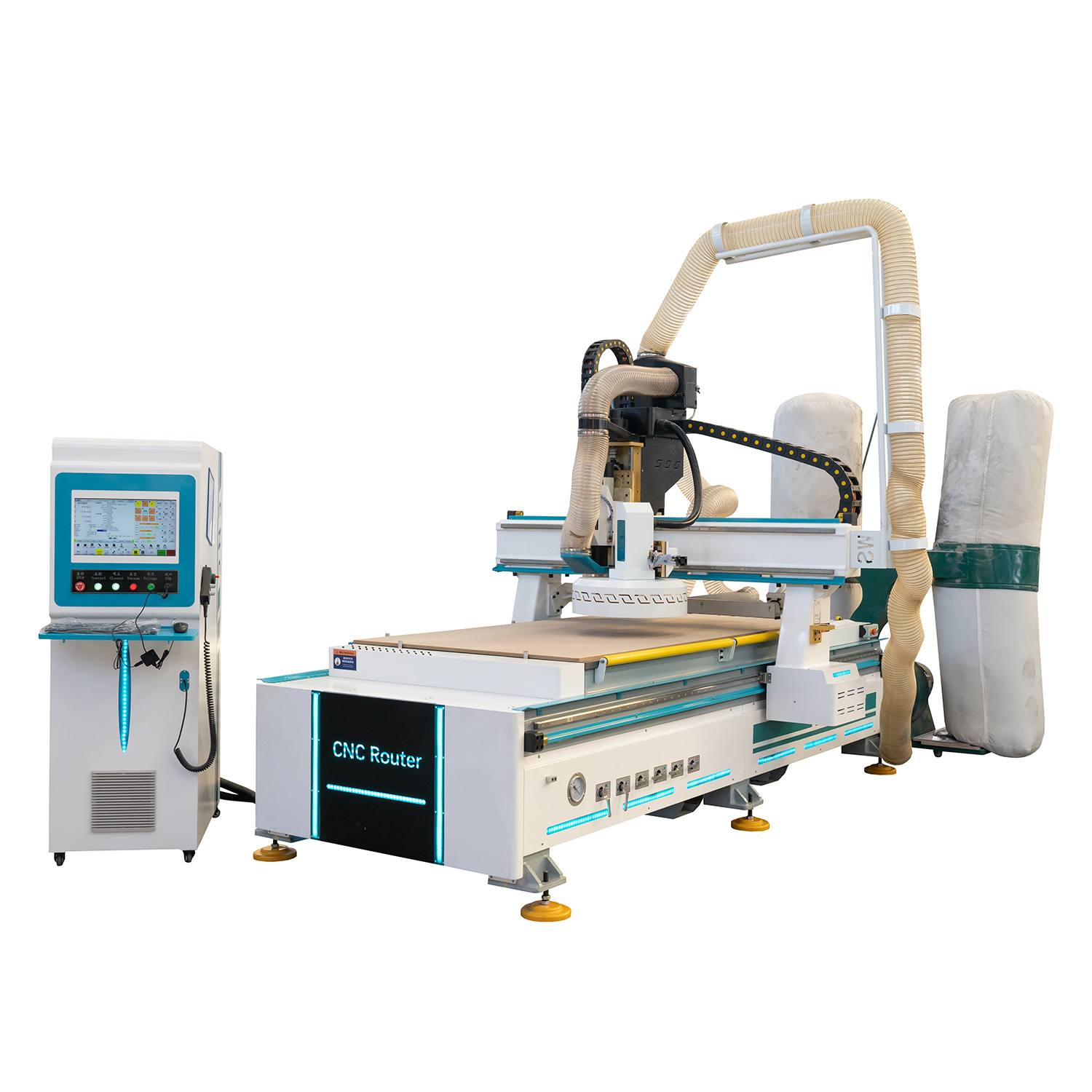

DSC00702

Technical parameters of ATC cnc router

Standard Configurations
Model & Name APEX1325
Brand APEXCNC
Working Area 2500*1300mm
Table Vacuum and T-slot table

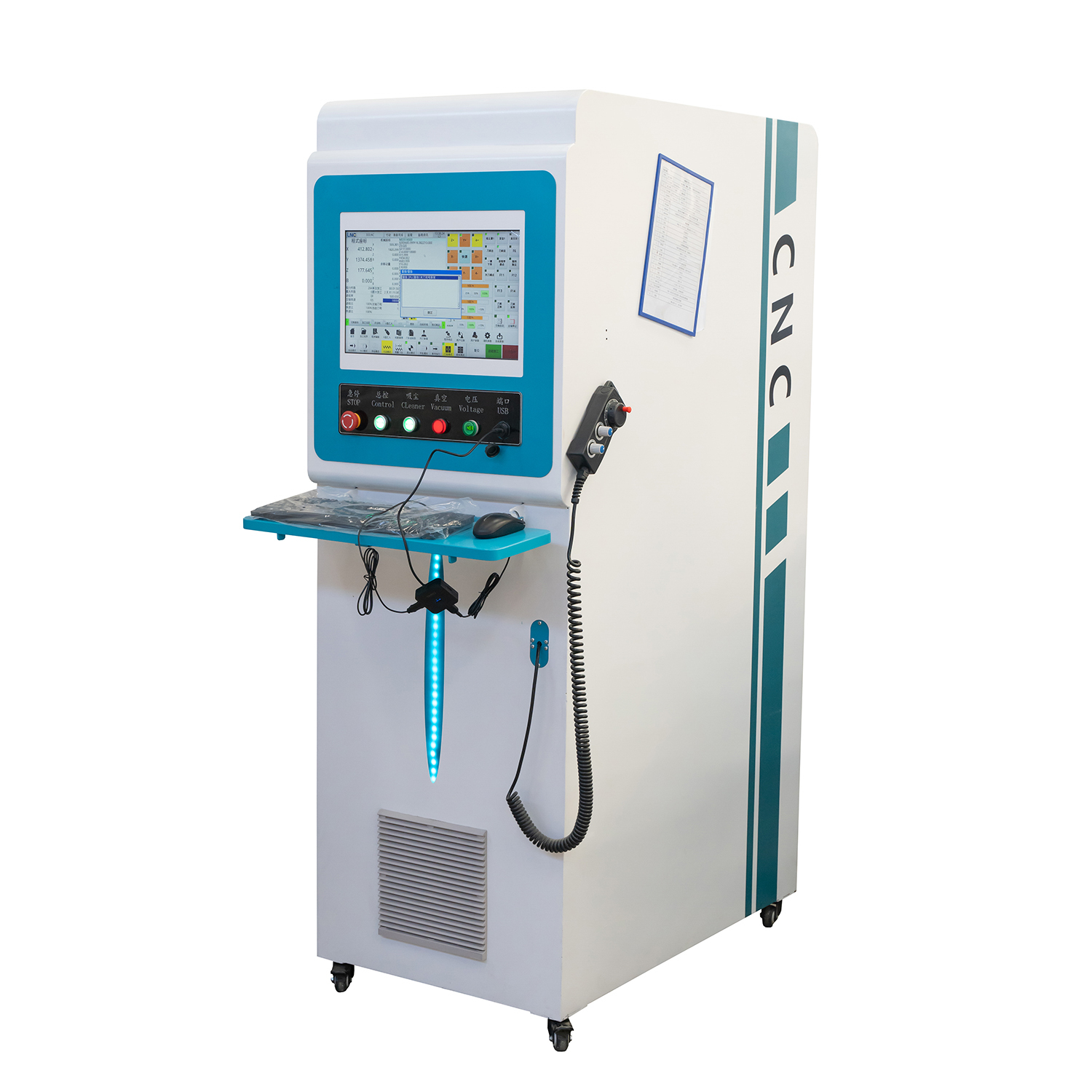

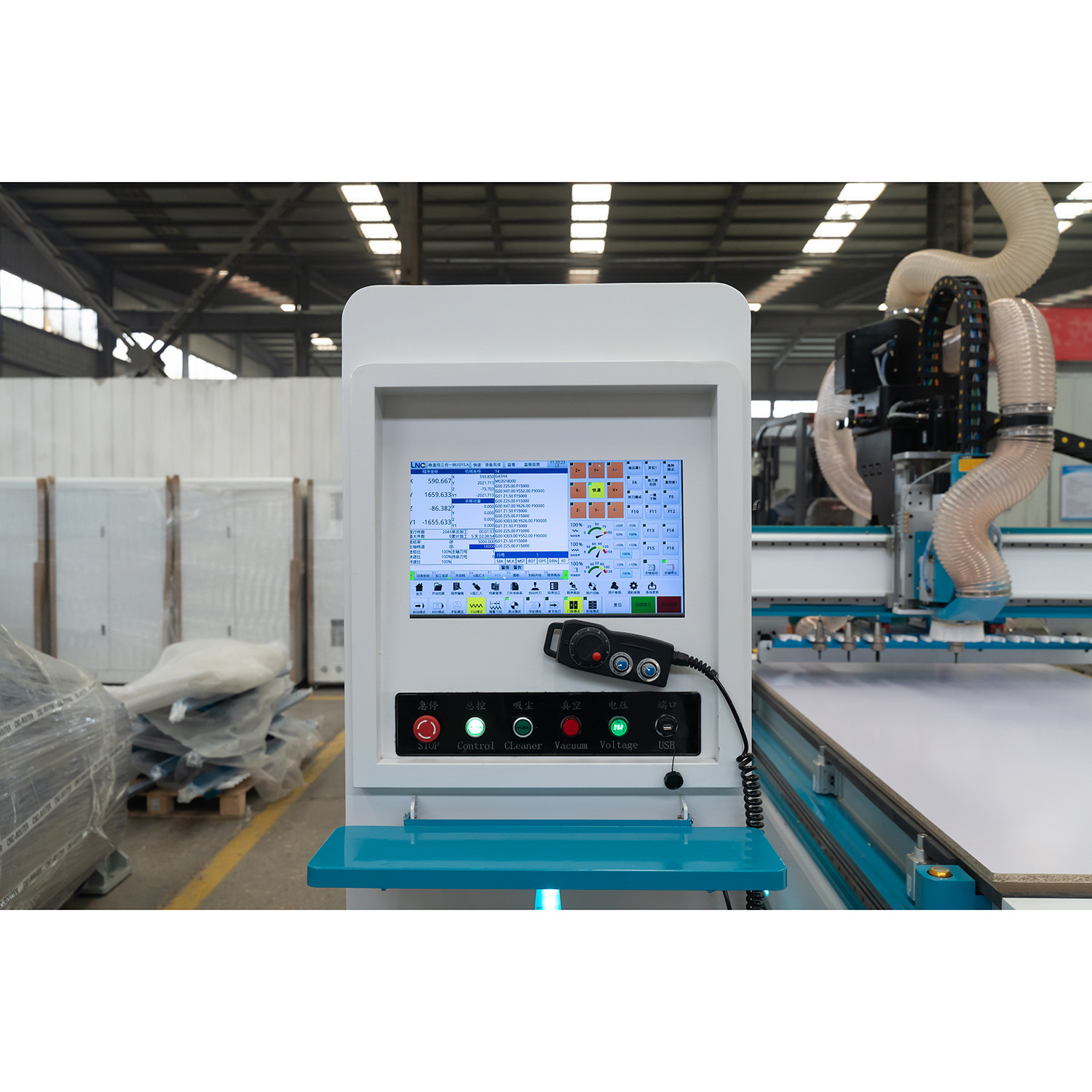

Control system Taiwan LNC CNC control system
Spindle  9.0KW air cooling spindle
Auto tool changer Circular auto tool changer for 12 tools
( 6 tools, 8 tools, 10 tools for choose)
Body structure Heavy steel welding structure
(more than 10mm thickness)
Motor and drivers Chinese Leadshine servo motor and drivers
Rail guide Taiwan HIWIN square guide rails
INVERTER Taiwan Delta INVERTER
X,Y axis transmission Germany Herion helical rack and pinion
Z axis transmission Taiwan TBI ball screw for Z axis
Electronic components France Schneider electronic components
Limit switch Japan Omron limit switch
Limit switches at both ends of the X & Y axis
Vacuum pump 11KW water vacuum pump
Dust collector Dust collector with double bag x 2
Coolant Attachment Yes
Protective sheet Yes
Tool setting gauge Auto
Lubrication system Auto
Technical Parameter
Working area 2500*1300*300mm
X,Y,Z Traveling Positioning Accuracy ±0.01/2000mm
MAX. Traveling Speed ≥50000mm/min
MAX. Cutting Speed ≥25000mm/min
Commend Code G Code
Working voltage AC380V/3P/50Hz
Interface USB
Rated power At most 18KW·H
N.W./G.W. 2800KG/ 2900KG
Runing environment Temperature:0ºC~45ºC  Relative Humidity: 30%~75%

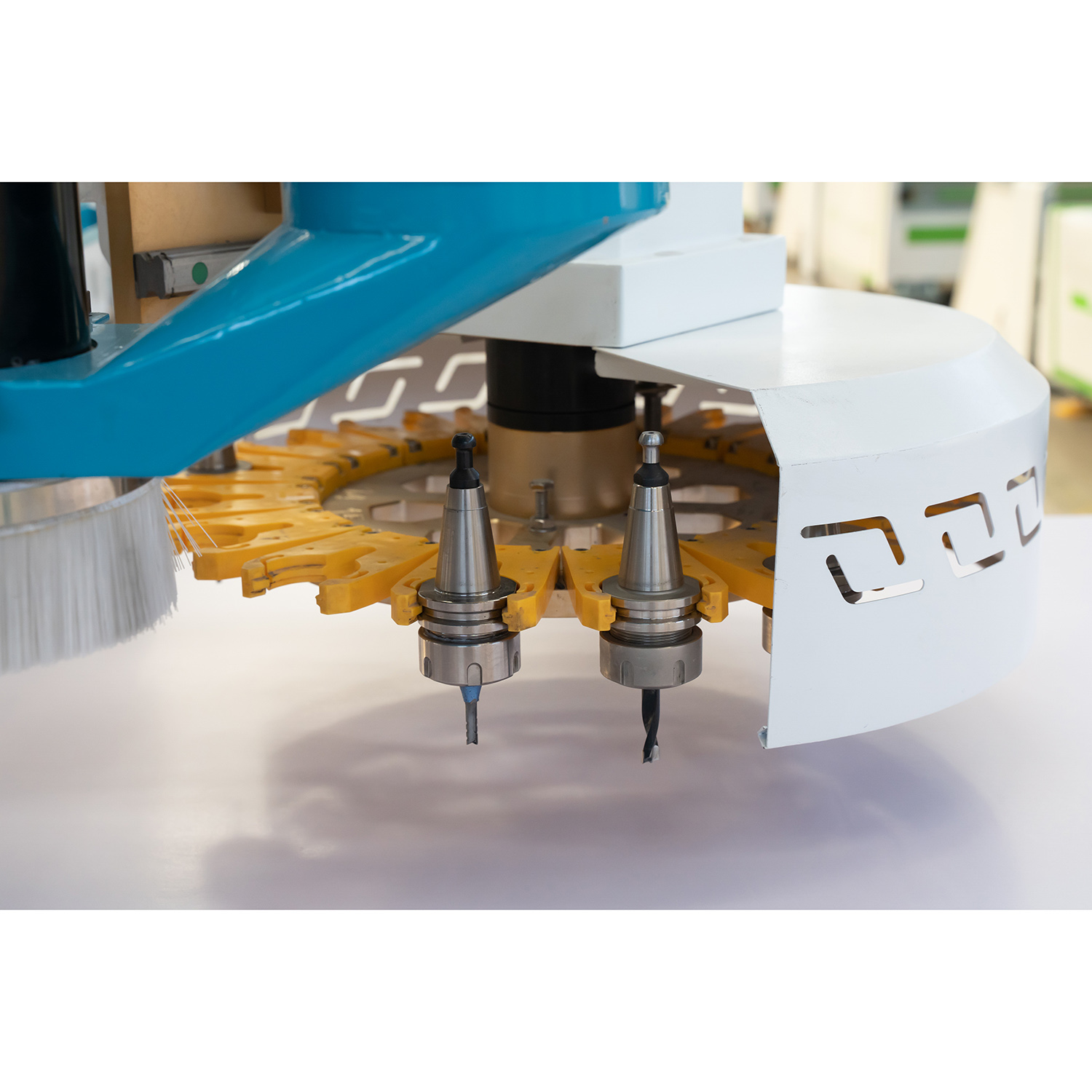

DSC00703 DSC00704

Application of ATC cnc router
1.Wood working :Solid wave board process,door of cabinet,wooden door,artistic wooden door ,no-paint door,avoid wind,process of the artistic window,shoes cleaning machine,the cabinet of the playing machine and the board, mahjong table,computer table .
2 Advertising:Advertising board,Label design,Acrylic cutting,model, of the multi material decoration products.
3.Model industry:It can engrave on the steal materials such as copper, aluminum ,iron etc and non-mental materials such as man-made marble,
sand, plastic board PVC materials, wood board etc.
4.Other field:It can engrave many image, embossment,and widely used in artistic industry.

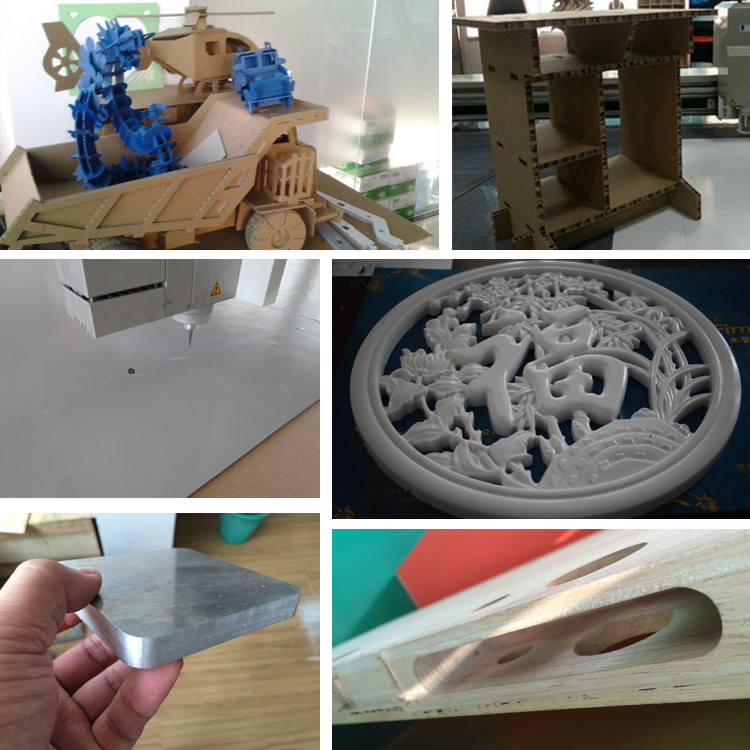

Samples of ATC cnc router

组合 (3)

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
