Hot sale Fiber Laser 1kw Cutting Machine - China CNC Manufacture 1530 2kw Full-cover Fiber Laser Cutting Machine for Stainless Steel Carbon Steel in Stock – Apex
Hot sale Fiber Laser 1kw Cutting Machine - China CNC Manufacture 1530 2kw Full-cover Fiber Laser Cutting Machine for Stainless Steel Carbon Steel in Stock – Apex Detail:
Features of fiber laser cutting machine
#Advance double driving system structure, Dual driving force from high precision driving method.
3Top standard gear, rack and guide rail, no need maintenance, high speed and efficiency.
#Components from world famous suppliers,
Panasonic,Yaskawa,YYC,Simens,Precite,etc.
#Environmental working medium, screen out radiation harm. Ensure green and safer working circumstance.
Quality assurance, long warranty. various warranty plan for you to choose.
#Professional and fast respond service mechanism, door to door after-sale service, free 24/7 online technical support and before-sale technical consultation.
Specifications of fiber laser cutting machine
| Fiber Laser Cutting Machine Technical Parameters | |
| Laser Type | Fiber laser |
| Laser Brand | IPG / Raycus |
| Laser Power | 1000W / 2000W / 3000W |
| Working area | 1500mmX3000mm / 2000mmX4000mm / |
| 2000mmmX6000mm | |
| Working Table | Fixed Working Table / Pallet Changer |
| Control System | PMAC full-closed loop servo control |
| Driving Mode | Double ball screw driving / Double gear rack driving |
| Idle/Processing Speed | 120m/min / 60m/min |
| Positioning Accuracy | 0.05mm |
| Protection System | Enclosure protection |
| Laser Head | Precitec / Raytools |
| Power Supply | AC220V ± 5% 50 / 60Hz / AC380V ± 5% 50 / 60Hz |
| Total Power | 6KW~20KW |
| Floor Space | 5.6mX3.2m (fixed table) / 6mX4.6m (shuttle working table) |
| / 8.5mX4.2m (pallet changer) | |
| Standard Collocation | Metal nesting software, dual-pressure gas route of 3 kind gas sources, |
| dynamic focus, remote controller, etc. | |
| Auxiliary System | |
| Cooling System | Dual temperature dual control water chiller |
| with purification system | |
| Lubrication System | Automatic lubrication |
| Laser cooling system | Horizontal air conditioning |
| Auxiliary gas system | dual-pressure gas route of 3 kind gas sources |
| Laser cutting head | Dynamic focus |
| Circuit and protection system | Independent work station |
| Software System | |
| Software | Shanghai Cypcut |
| Supported Format | PLT, DXF, BMP, AI, DST, DWG, etc. |

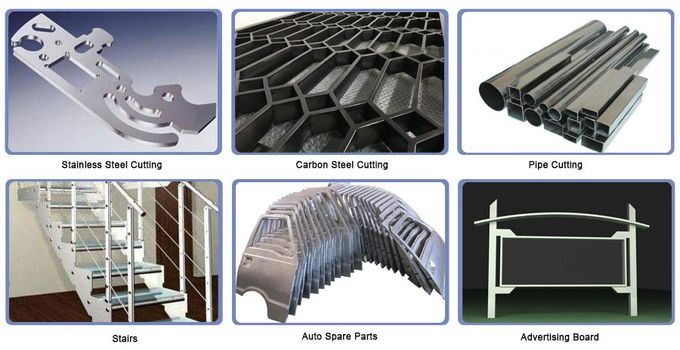

Application Materials of fiber laser cutting machine
Industry:it’s design for metal sheet cutting and processing,such as plate processing,machinery manufacture and precision processing,etc.
Materials:stainless steel,carbon steel,aluminum,brass and pipes,etc.

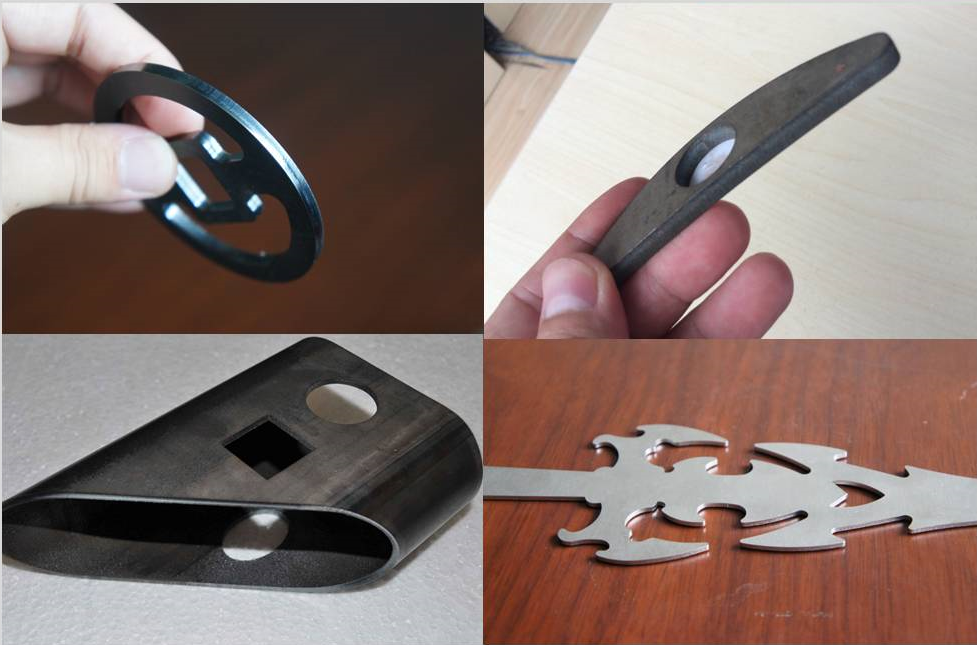

Samples of fiber laser cutting machine
Packaging and shipping
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information.
Other fiber laser cutting machine

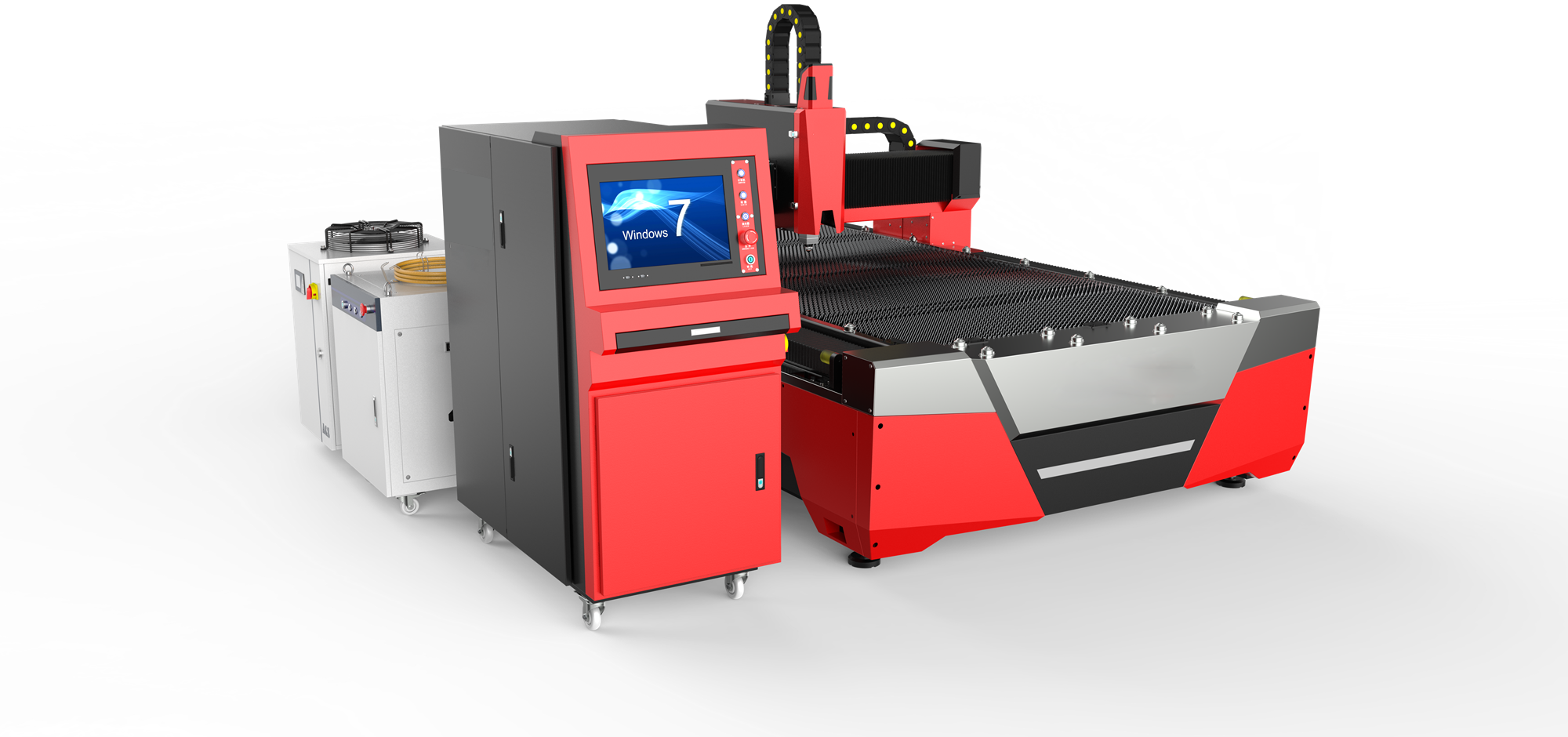

1530 fiber laser cutting machine for plate

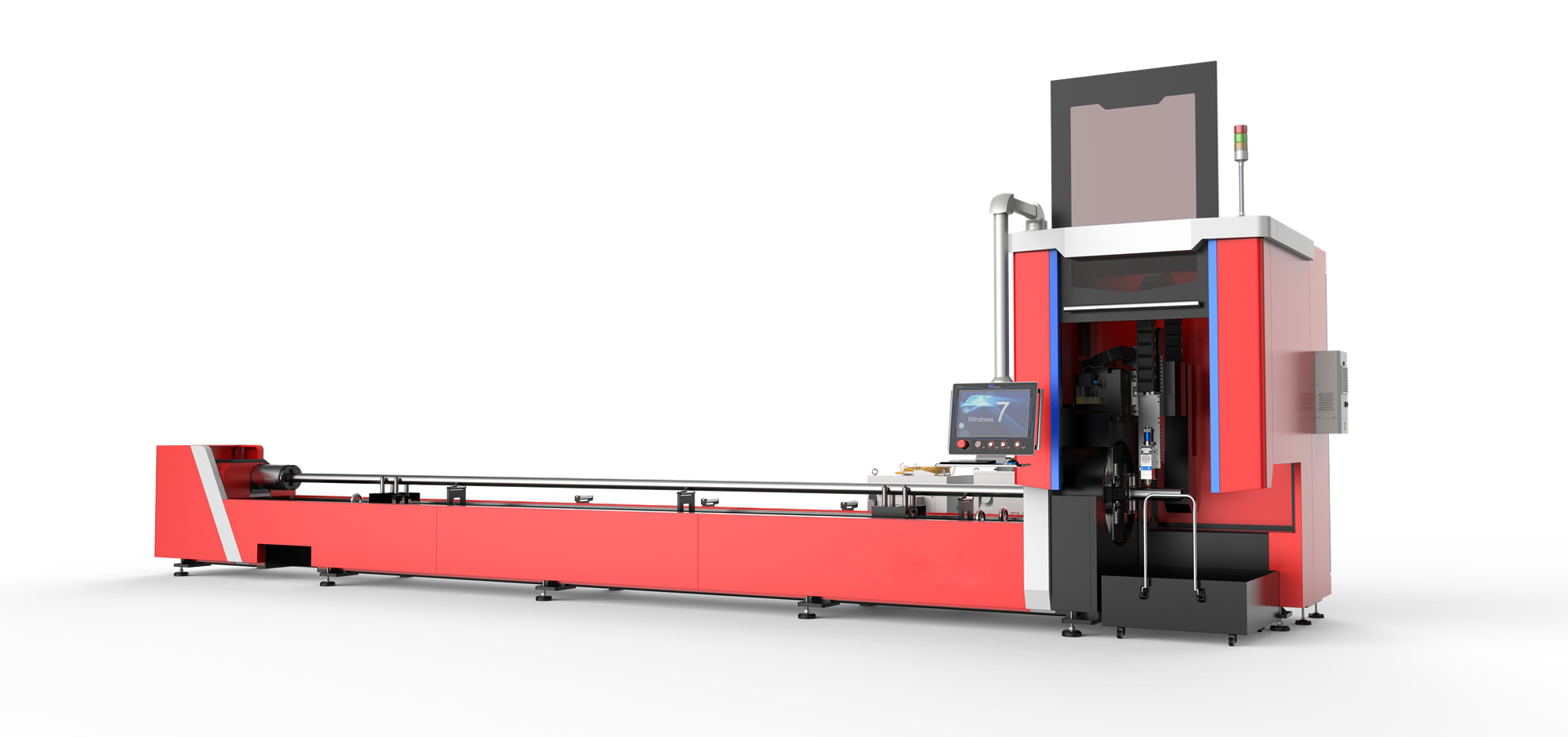

2060 fiber laser cutting machine for tube
Customer visit
Product detail pictures:
Related Product Guide:
With sophisticated technologies and facilities, strict top quality handle, reasonable value, exceptional support and close co-operation with clients, we are devoted to furnishing the ideal worth for our clients for Hot sale Fiber Laser 1kw Cutting Machine - China CNC Manufacture 1530 2kw Full-cover Fiber Laser Cutting Machine for Stainless Steel Carbon Steel in Stock – Apex , The product will supply to all over the world, such as: United Kingdom, Thailand, Malawi, Our technical expertise, customer-friendly service, and specialized products make us/company name the first choice of customers and vendors. We are looking for your inquiry. Let's set up the cooperation right now!
