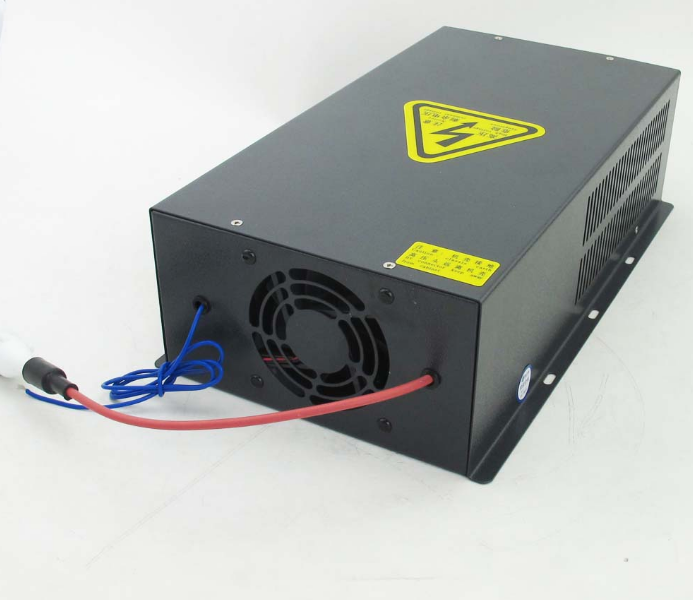

HY-W150 150W laser co2 power source for 150 180w different brands of tube

Main feature of W150 CO2 laser power supply

150w co2 laser power supply Main Features

Match with 1650mm 1850mm 2050mm 130w 150w 180w co2 laser tube

1.Good Compatitility: It can be applicable to 130w 150w 180w laser tubes manufactured by different factories.

2.has good power stability and strong adaptability, It can prolong the laser tube service life dramaticlly.

3, Easy control: the start and stop of laser can be easily controlled bt TTL level.

4,has output open circuit protection.

5, has TTL signal indication, water through signal indication and laser output indication.

6, has the BUTTON to test output laser manually.

7, application: sculpture and cut acrylic, fabric, double color sheet and rubber, etc.

Main features:

1) This power supply is specially designed for special laser tube. It makes laser tube output larger and more stable.
2) Quick response speed and good effect: It can enlarge laser power and prolong laser tube’s service life.
3) Easy Control: The start and stop of laser can be easily controlled by TTL level. And there are protection switch to test the external water, ventilation, etc.
4) The power supply has output open circuit protection. Under the condition of good protective earthing, the power supply can work in open-circuit condition for a short time, which could avoid the damage of laser power supply because of the bursting of laser tube, thereby enhancing the life of power supply.
5) The power supply has TTL signal indication, water through signal indication and laser output indication.
6)This power supply has the BUTTON to test output laser manually.
7) Application: Sculpture and cut acrylic, fabric, double color sheet and rubber, etc.

8) The power supply can take feedback interface which can be used in closed-loop control and testing the working current of laser.

9) The power supply adds a new function, that is timely scene judging which part is damaged, laser tube or laser power.

Specifications:
