Mini Laser Engraver | Small Laser Engraver | 4060 Laser Engraver for Beginners

Short Description:

Cutting laser machine is the main products of Jinan APEX CNC Equipment Co., Ltd. We adopted honey nest table which have strong suction, suitable for cutting and engraving soft material, like leather cloth and so on. We also have aluminum blade table which can withstand heavy material, can hold 200kg material, suitable for cutting and engraving hard material, like wood acrylic and so on.


Product Detail

video

Product Tags

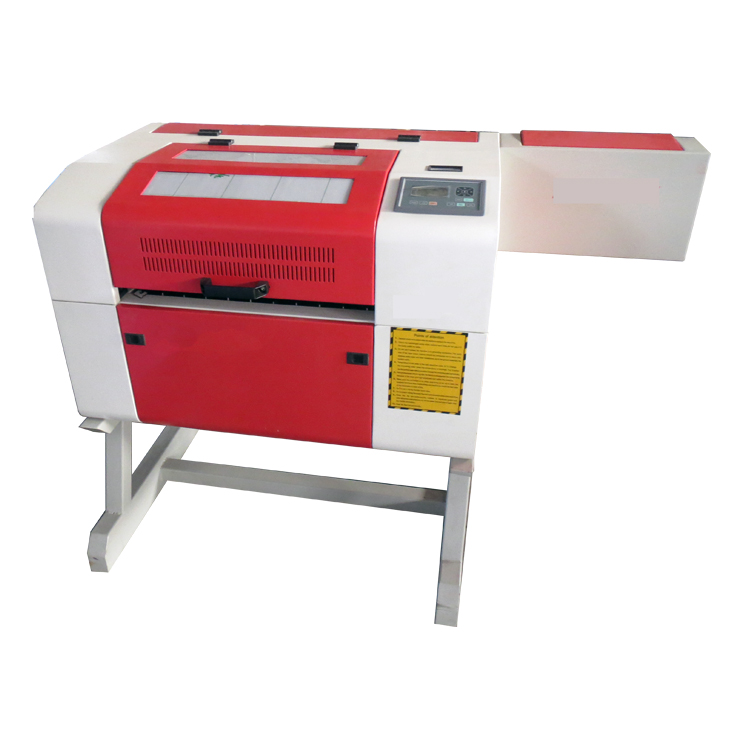

4060 Mini laser engraver is an entry level laser engraving machine for beginners with engraving and cutting crafts, arts, gifts of wood, MDF, acrylic, crystal, plastic, glass, paper, leather, fabric or stone in small business/small shop/home business/home shop. Now the entry level small laser engraver for sale at low price.

Product Descriptions

4
Mini laser engraver is also known as mini laser engraving machine, small laser engraver, small laser engraving machine, entry level laser engraver, entry level laser engraving machine, which is used for beginners in small business, small shop, home business, home shop, hobbyists, school education. The entry level small laser engraver can engrave and cut letters, signs, logos, numbers and patterns as crafts, arts and gifts on fabric, wood, MDF, stone, crystal, plastic, acrylic, glass, paper or leather.

Entry Level Mini Laser Engraver Features and Advantages

1. The small laser engraver can work for organics/non-metal – Able to mark pre-treated metals.
2.Fine engraving, the small laser engraver adopts top brand USA professional optical lens, the laser beamis more stable.
3. Precise red light positioning system.
4. Facilitate discharge and reclaimer system, with lifting up and down to adjust the front-end to be completely open.
5. The small laser engraving system supports AUTOCAD, CORELDRAW, PHOTOSHOP and other designsoftwares, the human-machine interface is friendly.
6. The working area of the mini laser engraver: 900*600mm, this can be customized according to your requirements.
7. DSP control system: The laser engraving machine has USB interface in the control panel, which will support the offline work, you have no need to connect the computer, this is very convenient.
8. Knife worktable/Honeycomb worktable for your option: Knife worktable is better for hard materials such as wood, acrylic. Honeycomb worktable use for soft materials such as leather, fabric, etc.
9. High resolution laser head: High quality and long lifetime.
10. Water pump: It is used for cooling laser tube to protect it has long life.
11. Air pump/Compressor: It is used for cooling the laser head to avoid the materials to be burned.
12. Exhaust fan: Blow away the smoke.
13. Tool box: Includes the CD, User manual and some wrenches for your work.

Entry Level Mini Laser Engraver Technicial Parameters



Model Type APEX4060
Laser type Sealed CO2 laser tube
Laser power 60W – 100W
Engraving area 400*600mm
Resetting position accuracy +/-0.05mm
Working voltage AC110-220V +/-10%.50-60HZ
Minimum shaping character English 1*1mm
Graphic format supported BMP, PLT, DST, DXF and AI
Driving system Stepper
Cooling mode Water-cooling and protection system
Auxiliary equipment Exhaust-fan, air-exhaust pipe
Controlling software RD control system
Compatible software Coreldraw, AutoCAD, Photoshop



Entry Level Small Laser Engraver Applications

组合(15)
The entry level laser engraver can engrave and cut various non-metal materials.

Materials Engrave Cut
Wood/ MDF/ Cork Yes Yes
Acrylic/ Crystal/Plastic Yes Yes
Glass Yes No
Acetate/ Delrin Yes Yes
Rubber/Stamp/ Silicon Yes Yes
Paper/Card/ Pressboard Yes Yes
Fiberglass / Mylar Yes Yes
Leather/ Cloth Yes Yes
Fabric/Cotton Yes Yes
Silk/Textile Yes Yes
Marble/Granite/Stone Yes No
Ceramic/ Tile Yes No

International Shipping Around the World

All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
