Wood processing machinery. It is divided into three control methods: one is that all calculations are completed by computer control, and the computer is in working state when the engraving machine is working, and other typesetting work cannot be performed, which may cause waste products due to misoperation of the computer; Control, typesetting can be performed while the engraving machine is working, but the computer cannot be turned off, which can reduce waste products caused by misoperation of the computer; the third is to use the USB port to transmit data. The system has a memory capacity of more than 32M. After saving the file, it can be completely separated from the computer. Turning off the computer or doing other typesetting can greatly improve work efficiency.

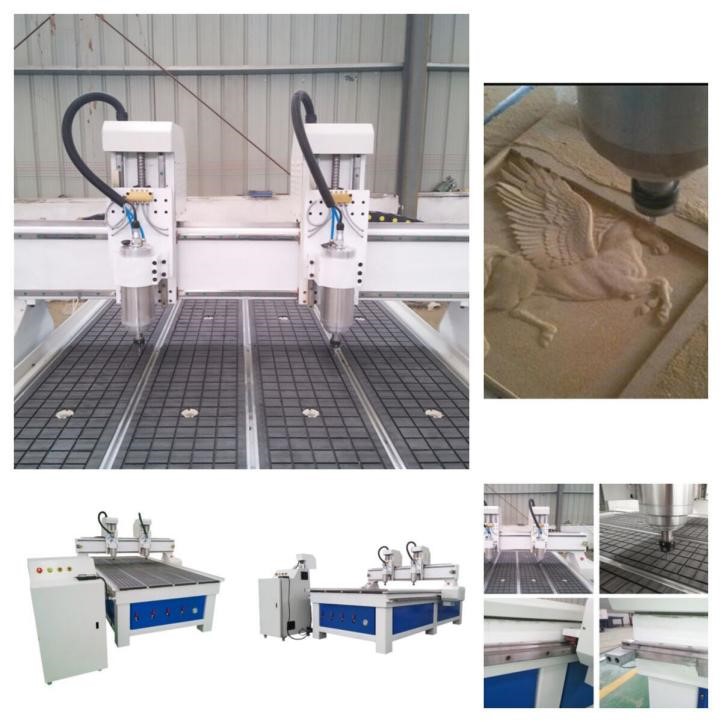

Product description

Mainly used for wood processing, crystal, copper, aluminum, etc. to make it more aesthetically pleasing. There are many types of woodworking engraving machines and many brands, resulting in uneven prices.

Styles are customized according to customer needs. Applicable to wood industry, advertising signs, furniture manufacturing, toy gift manufacturing, decoration industry, PCB production, etc.

Features

1. Start pause: When the processing file has been loaded, if the system is in the idle state, press this key, the system starts to run the processing program; if the system is already in the processing state, press this key, the system suspends processing.

2. Stop: stop the current operation. If the system is in processing state, press this key to stop processing; if the system is in floating tool setting state, press this key to stop floating tool setting.

3. Continue at breakpoint: If the system is in the processing pause state, press this key, and the system starts to continue processing at the breakpoint.

4. Continuous: switch user data input to manual continuous.

5. Spindle switch: If the spindle is off, press this key to turn on the spindle; otherwise, turn off the spindle.

6. Return to origin: press this key, the system executes the command of returning to the workpiece origin.

7.×1: Press this key to set the jog step length to 0.01mm.

8.×10: Press this key to set the jog step length to 0.1mm.

9.×100: Press this key to set the jog step length to 1mm.

10. X+: Move the tool to the positive direction of X axis. If it is in the state of continuous jogging, it will jog continuously towards the positive direction of X axis; otherwise, it will advance one step towards the positive direction of X axis according to the current step length. Note: If it is in the state of continuous jogging, single press this button, the tool will jog continuously at low speed manually; press and hold the combination of the shift key and this key (hold down the shift key and press this Do not loosen), the tool will jog continuously at high speed manually.

11. X-: Move the tool to the negative direction of X axis. The moving speed, step length and combination keys are the same as X+ keys.

12. Y+: Move the tool to the positive direction of Y axis. The moving speed, step length and combination keys are the same as X+ keys.

13. Y-: Move the tool to the negative direction of Y axis. The moving speed, step length and combination keys are the same as X+ keys.

14. Z+: Move the tool to the positive direction of Z axis. The moving speed, step length and combination keys are the same as X+ keys.

15. Z-: Move the tool to the negative direction of Z axis. The moving speed, step length and combination keys are the same as X+ keys.

16. Shift: Pressing this key alone has no function, and only pressing this key in combination with other keys has corresponding functions; see the description of other keys for the type of combination.

17. Tool setting: the second key from the left on the fifth line of the special small keyboard. Press this key, the system performs floating tool setting.

18.F-: Press this key to decrease the feedrate override.

19.F+: Press this key to increase the feedrate override.

Application field

Woodworking industry: three-dimensional corrugated board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window processing, shoe polishers, game machine cabinets and panels, mahjong tables, computer tables and auxiliary processing of panel furniture products .

Advertising industry: advertising signs, logo production, acrylic cutting, blister molding, production of various material advertising decoration products.

Mold industry: It can engrave metal molds such as copper, aluminum, and iron, as well as non-metal molds such as artificial marble, sandstone, plastic boards, PVC pipes, and wood boards.

Other industries: It can carve various large-scale reliefs and shadow carvings, which are widely used in the craft gift industry.

Precautions for use

1. After setting the engraving position, the workpiece coordinates of X, Y, and Z axes must be set to “0″.

2. Adjust the engraving speed and the rotation speed of the spindle motor to prevent the knife from breaking due to excessive speed or slow rotation during engraving.

3. During automatic tool setting, please note that the tool setting block must be insulated from the aluminum table of the engraving machine.

4. When engraving, if you are not sure about the first cut or are afraid of making mistakes, you can slow down the feed speed, and then adjust the speed back to normal when you feel that the engraving is normal; you can also simulate engraving in the empty space to see if it is normal.

5. If the woodworking engraving machine is not used for a long time, it should be refueled and idling every week, preferably every week, to ensure the flexibility of the transmission system.

6. The continuous running time of the woodworking engraving machine is required to be less than 10 hours/day; to ensure the cleanness of the cooling water and the normal operation of the water pump, the water-cooled spindle motor must not be short of water, and the cooling water should be replaced regularly to prevent the water temperature from being too high. As much water as possible, you can change a large capacity water tank.

7. After each use of the woodworking engraving machine, pay attention to cleaning. The dust on the platform and the transmission system must be cleaned; regularly lubricate the X, Y, and Z axes of the transmission system.

8. It is better for the operator to wear a dust mask and protective glasses when operating the woodworking engraving machine, so as to avoid the dust generated during processing from invading the human body and causing discomfort.

9. The daily maintenance method of woodworking engraving machine should add a certain dust-proof and dust-removing device to the woodworking engraving machine, and choose dust-removing equipment for supporting use.
