OEM Customized China CNC Turning Wood Lathe for Cylindrical Work Piece, Tubular Sharp and Vehicle Wood Crafts

Short Description:

Main Features

1) Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials’ vibration.
2) Spindle:we could configure single spindle or two spindles, single spindle could configure chuck, two spindle could process two pieces at the same time for high efficiency.
3) Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
4) Feeding part:Taiwan TBL high quality straight line sliding rails and Germany NEFF precise ball screw, control the linear error effectively.
5) Japanese frequency converter with high stability
6) Operation system developed by ourself with patent is easy to operate.

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

Send email to us

Product Detail

video

Product Tags

Our company since its inception, constantly regards product or service high quality as business life, continually improve creation technology, make improvements to product high-quality and consistently strengthen business total high-quality management, in strict accordance together with the national standard ISO 9001:2000 for OEM Customized China CNC Turning Wood Lathe for Cylindrical Work Piece, Tubular Sharp and Vehicle Wood Crafts, We are going to continually strive to increase our company and supply the ideal quality products with aggressive price ranges. Any inquiry or comment is hugely appreciated. Remember to get hold of us freely.
Our company since its inception, constantly regards product or service high quality as business life, continually improve creation technology, make improvements to product high-quality and consistently strengthen business total high-quality management, in strict accordance together with the national standard ISO 9001:2000 for China Lathe, Lathe Machine, our qualify products have good reputation from the world as its most competive price and our most advantage of after-sale service to the clients.we hope we can provide a safe, environmental products and super service to our clients from all of the world and establish strategic partnership with them by our professional standards and unremitting efforts.

wood cnc lathewith single spindle and double cutters is designed for craftsman, small business or industrial production, the power wood lathe machine is mainly used for turning the complex shape of wood cylinders or semi-finished wood products.

Product Descriptions

Applications of Power wood lathe machine for Custom Woodworking

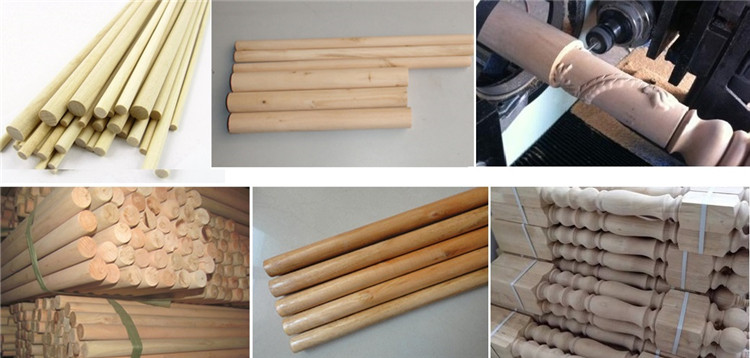

Power wood lathe machine with single spindle and double cutters is used for turning various cylindrical workpiece, staircase columns, bowl sharp, bar stool legs, tubular sharp and vehicle wood crafts, stairway balusters, dining table legs, end table legs, sofa table legs, Roman column, bar stool legs, general column, washstand, wooden vase, wooden table, baseball bat, children’ s bed column, chair arm posts, car wooden furniture, chair stretchers, bed rails, lamp posts, sofa and bun feet, baseball bats and so on.

Technical Parameters of Power Wood Lathe Machine for Custom Woodworking

Brand	APEX
Model	APEX1530
Max turning length	1500mm
Max turning diameter	300mm
Axis and Blades	single axis, 2 blades
Maximum feed rate	2000mm/min
Minimum setting unit	0.1mm
Spindle motor power	4KW
Power supply	AC380v/50hZ
Overall dimensions	330015001300mm
Weight	1600kg
Price Range	$6,980.00 – $7,680.00

Features of Power Wood Lathe Machine for Custom Woodworking

1. One thimble, one chuck and one backlash, it can be upgraded with two chucks and two backlash so that it can complete the workpiece simultaneously.

Wood Lathe Machine for Custom Woodworking

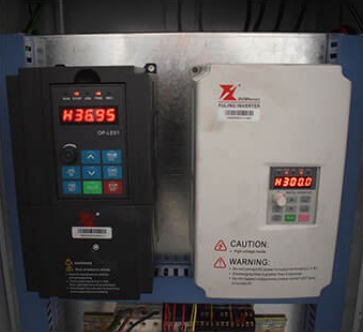

2. Heavy-duty with good stability to avoid shaking when the spindle rotates with high speed for the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.

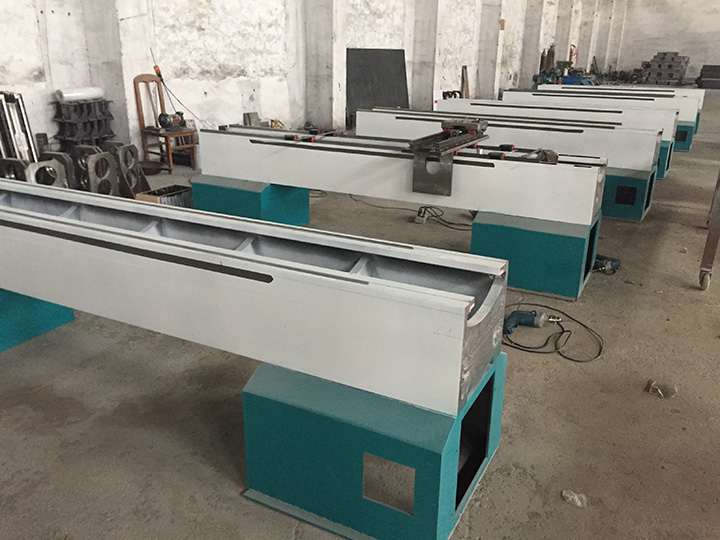

Power wood lathe body

3. Easy operation, we can draw by Coredraw, Artcam, AutoCAD and other softwares, and the control directly by the CNC cabinet computer (Industrial PC configuration) or transfer the files to machine by USB (DSP handle configuration).

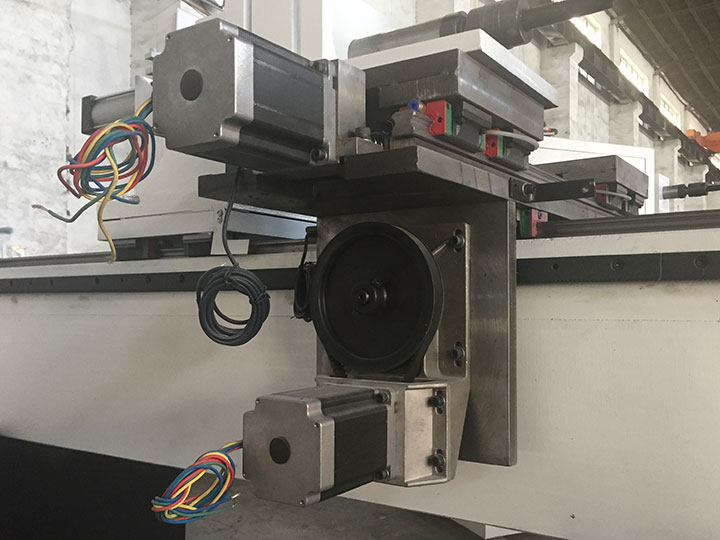

4. The CNC wood lathe adopts Taiwan TBI ball screw and Taiwan Hiwin square rail with high transmitting precision and longevity. Big module helical/diagonal rack. high precision and durable.
5.High accuracy stepper motor, after program calculating, guarantee the exact processing size.

Single spindle double cutters power wood lathe

Power Wood Lathe Machine for Custom Woodworking Projects

International Shipping Around the World

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.

Our company since its inception, constantly regards product or service high quality as business life, continually improve creation technology, make improvements to product high-quality and consistently strengthen business total high-quality management, in strict accordance together with the national standard ISO 9001:2000 for OEM Customized China CNC Turning Wood Lathe for Cylindrical Work Piece, Tubular Sharp and Vehicle Wood Crafts, We are going to continually strive to increase our company and supply the ideal quality products with aggressive price ranges. Any inquiry or comment is hugely appreciated. Remember to get hold of us freely.
OEM Customized China Lathe, Lathe Machine, our qualify products have good reputation from the world as its most competive price and our most advantage of after-sale service to the clients.we hope we can provide a safe, environmental products and super service to our clients from all of the world and establish strategic partnership with them by our professional standards and unremitting efforts.
