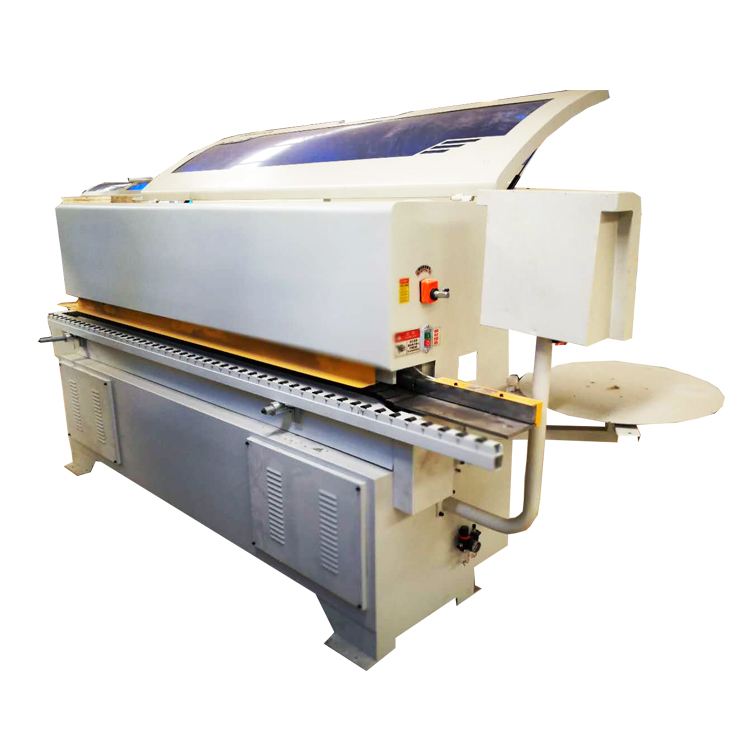

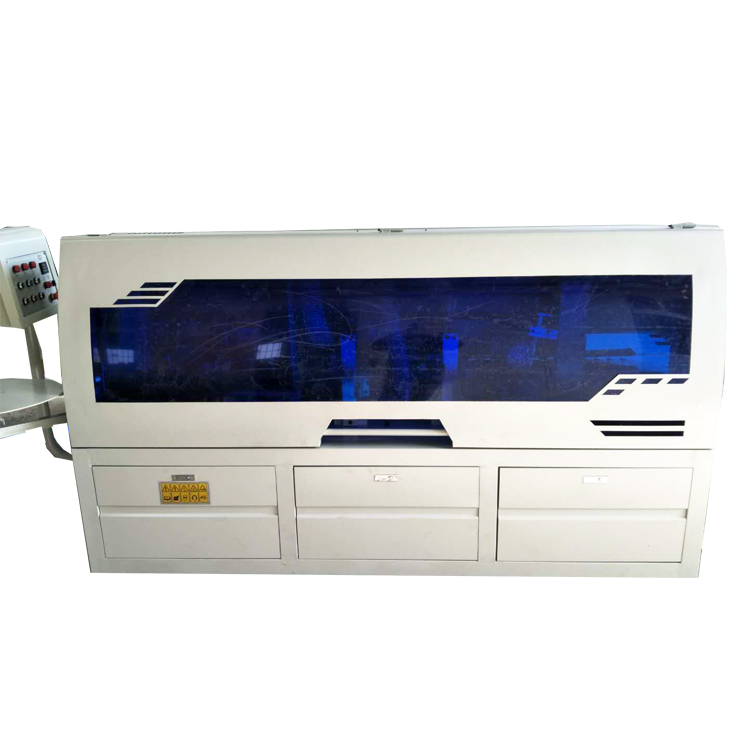

Plywood Automatic Edge Bander Machine Edge Banding Machine with Pre Milling
Features
1.Adopt domestic famous motor and high quality electrical components.
2.The fuselage is firm and steady,thus increasing the stability of the whole machine.
3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.
4.Auto cleaning, high precision, high efficiency.
5.The machine can be customized.
6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.
7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.
8.Secondary Dust Exhaust System, mainly used for sawdust collection during processing period, to keep the material smooth and clean.
9.The machine adopts the devices of sound insulation, controlling of dust, platform frame Micro adjustment by manual operat
Product Description
| Model | APEX |
| Overall Dimensions | 8700*910*1540mm |
| Min Panel Side | 300(L)*60(W)
150(L)*150(W) |
| Feed Speed | 15-23m/min |
| Edge Thickness | 0.2-3mm |
| Panel Thickness | 10-60mm |
| Panel Length | ≥150mm |
| Panel Width | ≥60mm |
| Working Air Pressure | 0.6mpa |
| Weight | 2950kg |
| Total Power | 24.1kw |

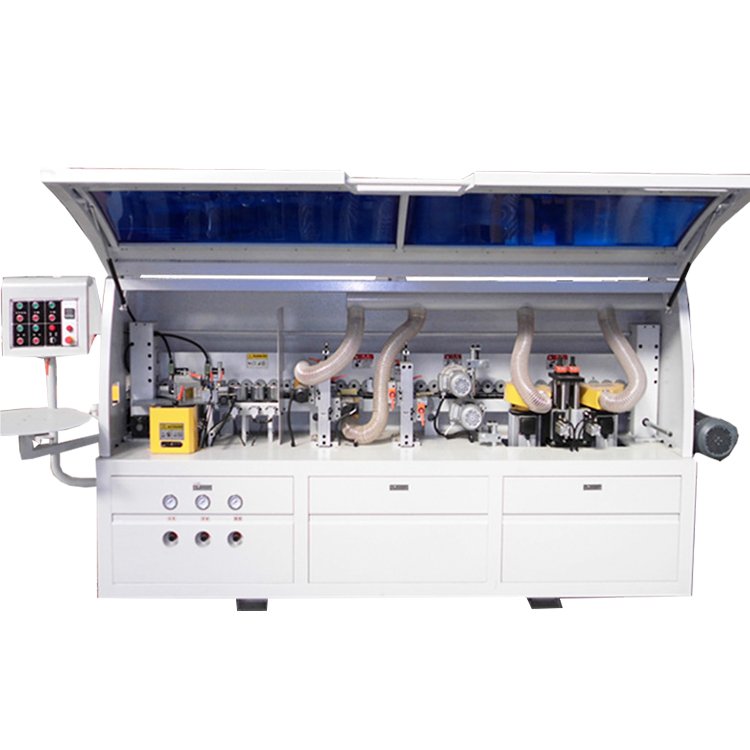

1)Gluing and press mechanism adopts glue melting device to gelatinize the plates and tape uniformly, meanwhile make sure they canbe conglutinated firmly.
2)End-trimming mechanism is to cut the forward and rear tape after gluing and press process by the movement of the precise guide track, it is with automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.
4)Scraping unit for a perfect finishing of the applied edge. Buffing unit is equipped with cotton polishing wheels to make smooth surface by end-polishing.
