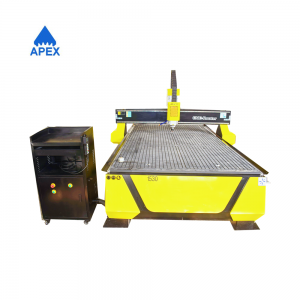

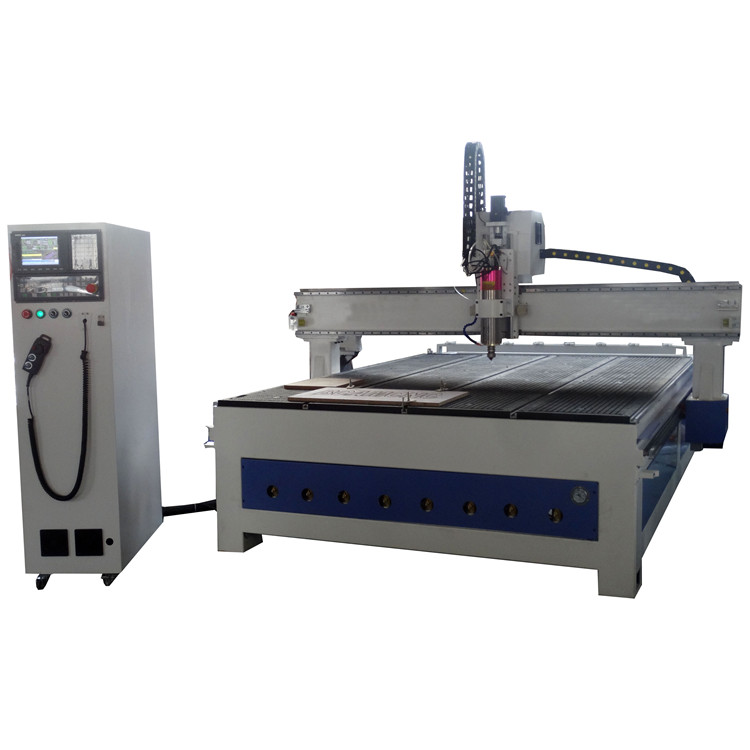

CNC router wood Working Center PTP All-Rounder
PTP all-rounder CNC working center is high automatic machinery, it is widely used for engraving, drilling, cutting, milling, chamfer.
Demonstration Video
Product Descriptions
1. Adjustable Vacuum Pump Suction Cups
2. Boring Unit &Saw Blade Unit optional
3. Intelligence OSAI or Syntec control system
4. Japan Yaskawa Servo motors
5. Strong heavy duty Mahine Body design
6. Smart Feet-Touch Sensor Switch
7. Disk Type 8PCS Auto Tool Changer SYSTEM.
Application materials:
Our PTP all-rounder CNC working center is high automatic machinery. It is suitable for various complex processing of work pieces, widely used for engraving, drilling,cutting,milling,chamfer. MDF, wood, organic glass, PVC, double color board, laminboard, aluminium, copper,etc
Application Industries:
panel furniture industry,wood furniture,solid wood doors,decorative materials,cabinets doors,computer tables,mahjong table,office furniture,wooden sound box,kitchenware,etc. Also applied to non-metallic mold,automobile mold,foam processing industry.
PTP all-rounder CNC working centerfeatures:
1. Advanced components are equipped in this router,for example,European vaccum system,Japanese servo driving system and Italian spindles etc.
2. This machine has disk type ATC tool magazine,capacity is 8,tool change time is only 8 seconds,engraving spped: 20 meters per minute
3. Two guide ways,double sides driving structure.
4. Germon Movble vaccum blocks table. whole panel no need cutting before processing,save working time.
PTP all-rounder CNC working center technical parameters:
| Description | APEX1224 | APEX1230 | ||
| X/Y/Z Axis Travelling size | 3400*1640*250mm | 4660*1640*250mm | ||
| Working size | 3060*1260*100mm | 4320*1260*100mm | ||
| Working area | 3060*1200mm | 4320*1200mm | ||
| Transmission | X/Y rack and pinion drive,Z ball screw drive | |||
| Table structure | Moveable gantry; suction cups | |||
| Spindle Power | 9.0KW | |||
| Spindle speed | 24000 r/min | |||
| Travelling speed | 80m/min | |||
| Working speed | 20m/min | |||
| Tool magazine | Carousel | |||
| Tool slots | 8 | |||
| Drilling head | 14 vertical+6 horizontal+2 sawing units/9 vertical+6 horizontal+1 sawing units | |||
| Driving system | Yaskawa | |||
| Voltage | AC380/3Ph/50Hz | |||
| Control system | OSAI or Syntec | |||
