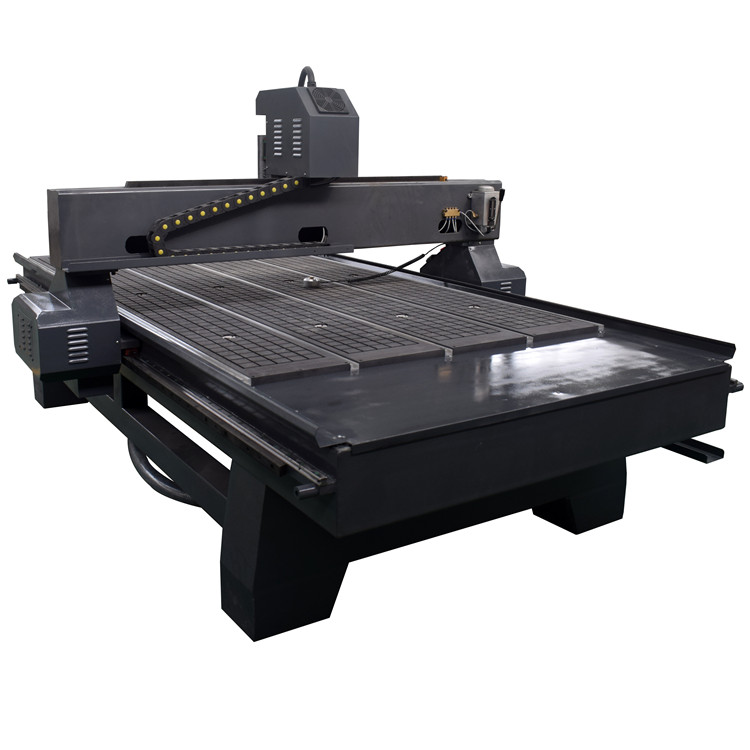

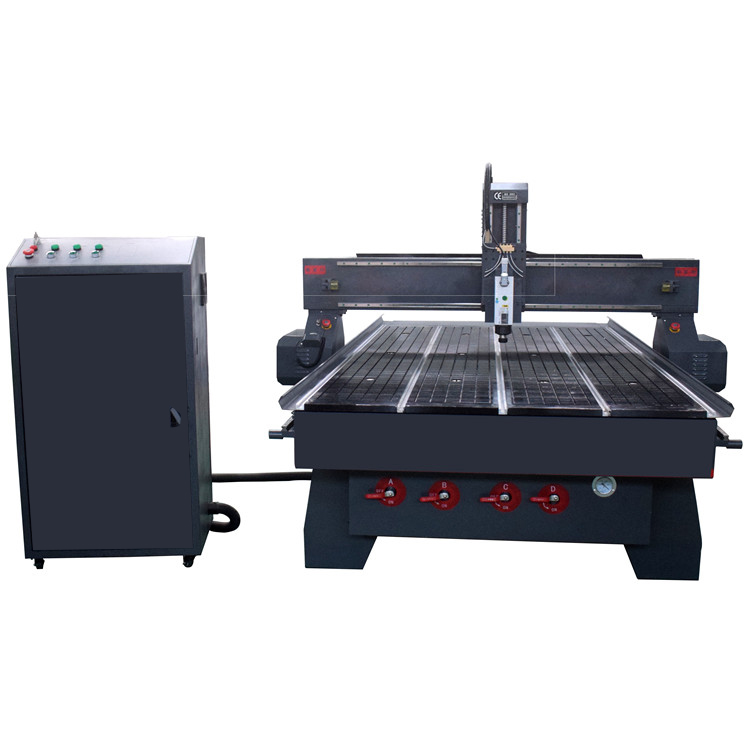

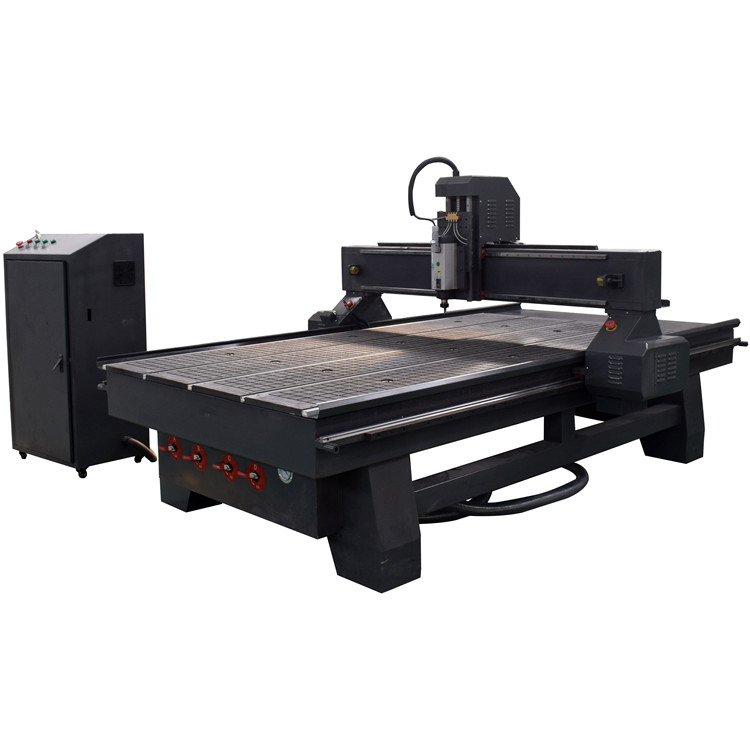

Wood CNC Router Plywood /Wood CNC Cutting /Engraving Machine for Wood Acrylic Plastic Aluminium
Machine Features
1. whole body is 2 parts ,ensure the high strength of machine . bracket is stainless steel pipe. Whole lathe bed and gantry are whole casting aluminum (whole casting iron is optional)
2. XYZ axis adopt linear square guide rail (Taiwan HIWIN or PMI, diameter 20mm)smooth operation, high precision, long life

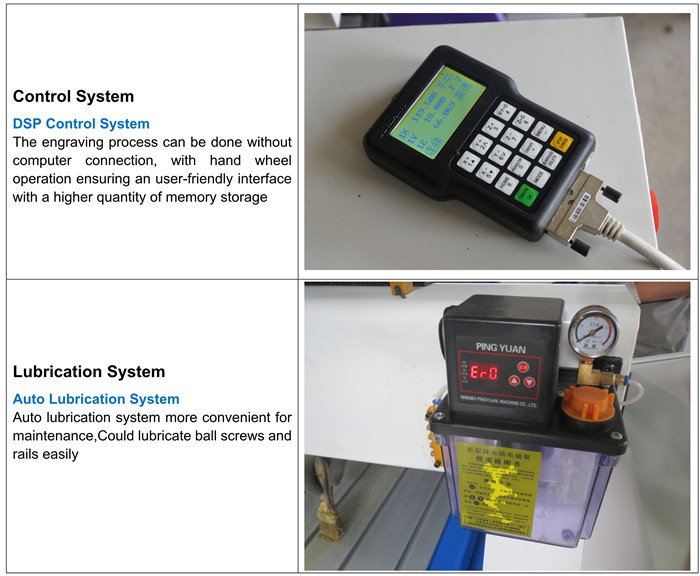

3. Adopt Ncstudio control, support win7/xp/2000. control system is Richauto A11S, 512MB.
DSP and Mach3 control system is optional.
4. stainless steel water slot cooling system help cool tools when working, avoide breaking tool, sticking material.

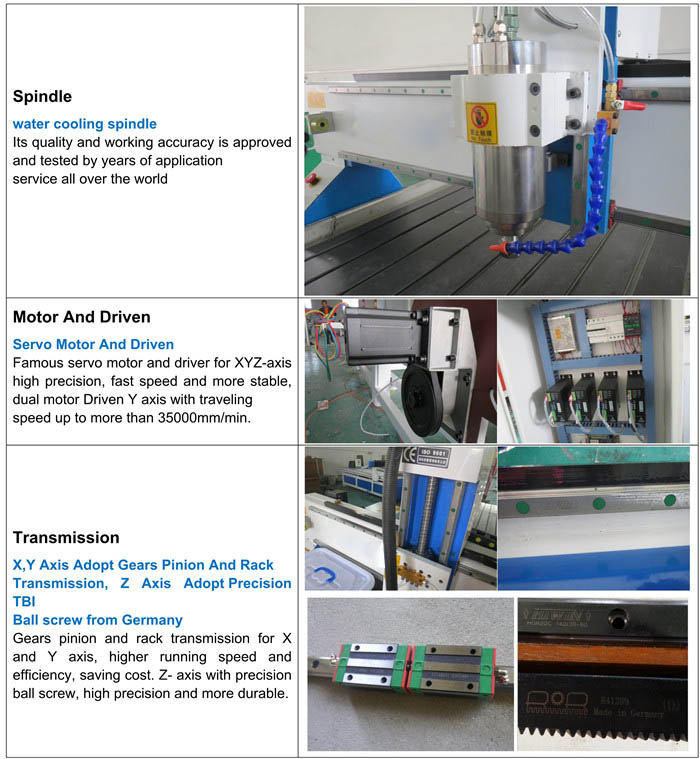

5. Adopt 3.2 KW water cooling spindle, big power suitable for engraving and cutting. ER20, support tool diameter 3.175mm,4mm,6mm,8mm,10mm,12.7mm.
6. The machine is good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction equipment, mould products, industrial mold, applicable materials are acrylic, double color boards, PCB, copper, aluminum, etc
7. Adopt Artcam 2008 or Artcam 7.0 tool path design software. Compatible with Type3, ucancam, AutoCAD and so on.
8.Working table moving makes sure machine high accuracy.
9.XY adopt dustproof cloth to make machine maintainess easy
| NO. | Model | APEX1325 |
| 1 | Working Area | 1300x2500x200mm |
| 2 | Packing Size | 3180x2130x1880mm |

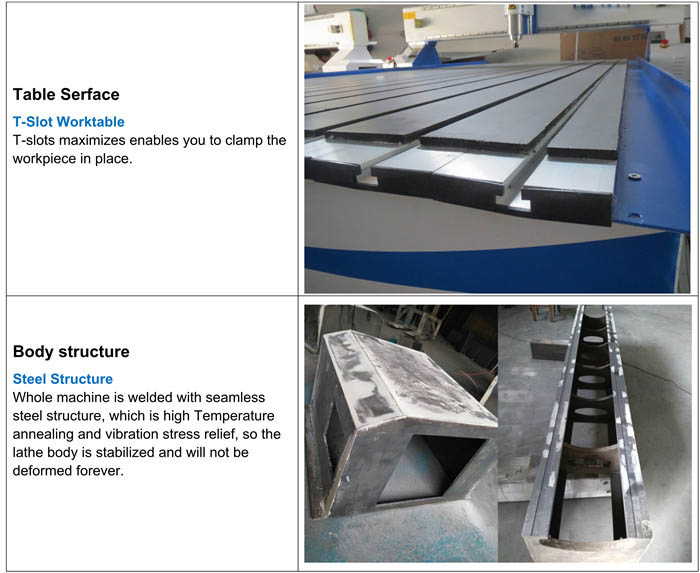

| 3 | Working Table | T-Slot Aluminum Table/Vacuum Table |
| 4 | Control System | CCD professional system |
| 5 | CCD Function | Automatic edge inspection,contour cutting |
| 6 | CCD Pixels | 130W |
| 7 | Spindle | 3.2KW Air Cooling Spindle/3KW Water cooling Spindle |
| 8 | Cooling System | Air Cooling/Water Cooling |
| 9 | Inverter | Sunfar |
| 10 | Transmission Type | X,Y axis gears pinion, Z axis with ø20mm ball screws |
| 11 | Guide Rail | Taiwan HIWIN Square rail |
| 12 | Ball Screw | Taiwan TBI ball screw |
| 13 | Drive System | Leadshine stepper motor |
| 14 | Body | Welded steel T type structure as a whole |
| 15 | Spindle Speed | 0-18000RPM/0-24000RPM |
| 16 | Editing Software | Artcam/Type3,other CAD/CAM |
| 17 | Traveling Speed | 10m/min |
| 18 | Working Speed | 8m/min |
| 19 | Reposition Accuracy | 0.03mm |
| 20 | Command Code | G Code*.u00*.mmg*.plt |
| 21 | Voltage | AC220V/380V,50Hz/60Hz |
| 22 | Warranty | 24 months |
| 23 | Optional parts | 1.Dust Collects 2.Water Chiller CW3000 3.rotary axis 4.Servo Motor 5.different working area 6..semi-auto lubrication system 7.different power spindle |
Application Industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door
screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on souvenirs.
Applicable materials:
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and
other nonmetal materials ect…

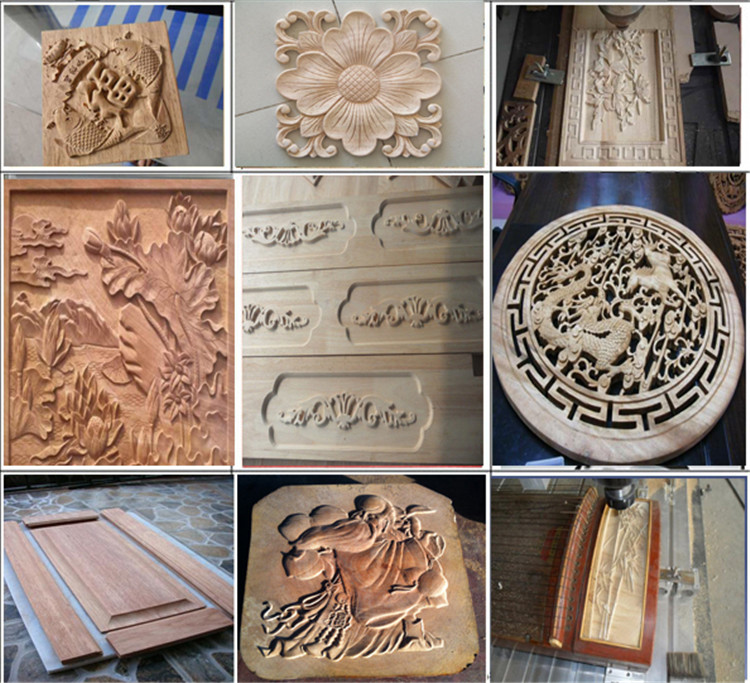

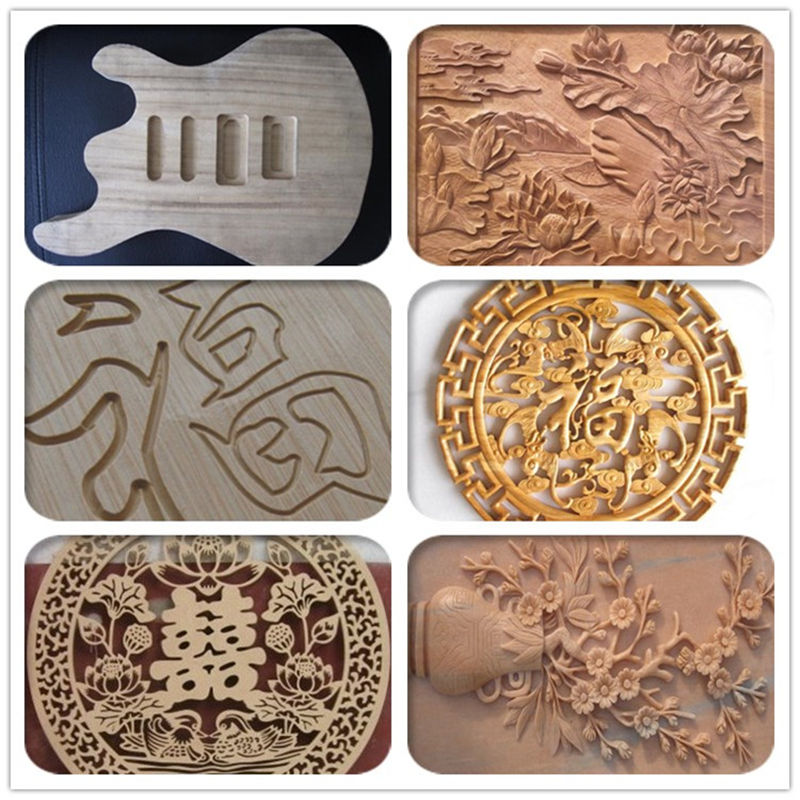

Prccessing effect:
It can manufacture the following effects: relief, shadow, enchasement and so on
